REPLACING TOP EVAPORATOR FRAME AND GASKET
Use kit, 7626213, to replace top evaporator frame and gasket on all B-model and J-0200 through J-1000 ice machines.

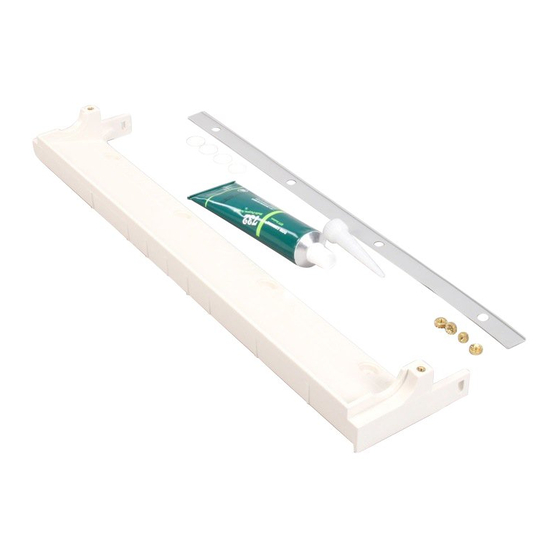

Kit includes all necessary hardware:

Replacement Instructions:

1. Put ICE/OFF/CLEAN switch to the OFF position.
2. Remove water curtain and water distribution tube from evaporator.
3. Using a small flat screwdriver, chip out all four top frame disks (Fig. 1). IMPORTANT: Be careful not to
damage nuts and evaporator studs beneath disks.
4. Remove all four 11/32" brass nuts; lift top evaporator frame and gasket from evaporator (Fig. 2).
5. Remove excess silicone sealant from top corners.
6. Lay gasket flat on top evaporator frame with the ribbed edge of gasket in the slotted portion of the top evaporator
frame (Fig. 3).
7. Install top evaporator frame and gasket on evaporator. Tighten four brass nuts so gasket is even with the front
edge of top evaporator frame and evaporator. IMPORTANT: Do not over-tighten and smash gasket.
8. Fill mounting holes with silicone sealant. Insert new top frame disks and clean off excess silicone sealant. NOTE:
Any residue may result in poor water flow over evaporator.
9. With silicone sealant, seal corners where top evaporator frame meets side brackets. IMPORTANT: Allow one
hour for silicone sealant to dry.
10. Put ICE/OFF/CLEAN switch to ICE position and verify ice machine is operating properly.
Manitowoc Ice, Inc.
Quantity
1
1
1
4
4
1
(See attached illustrations)
7626213
Description
Top evaporator frame
Gasket
Tube silicone sealant
Top frame disks
Brass nuts
Instructions
