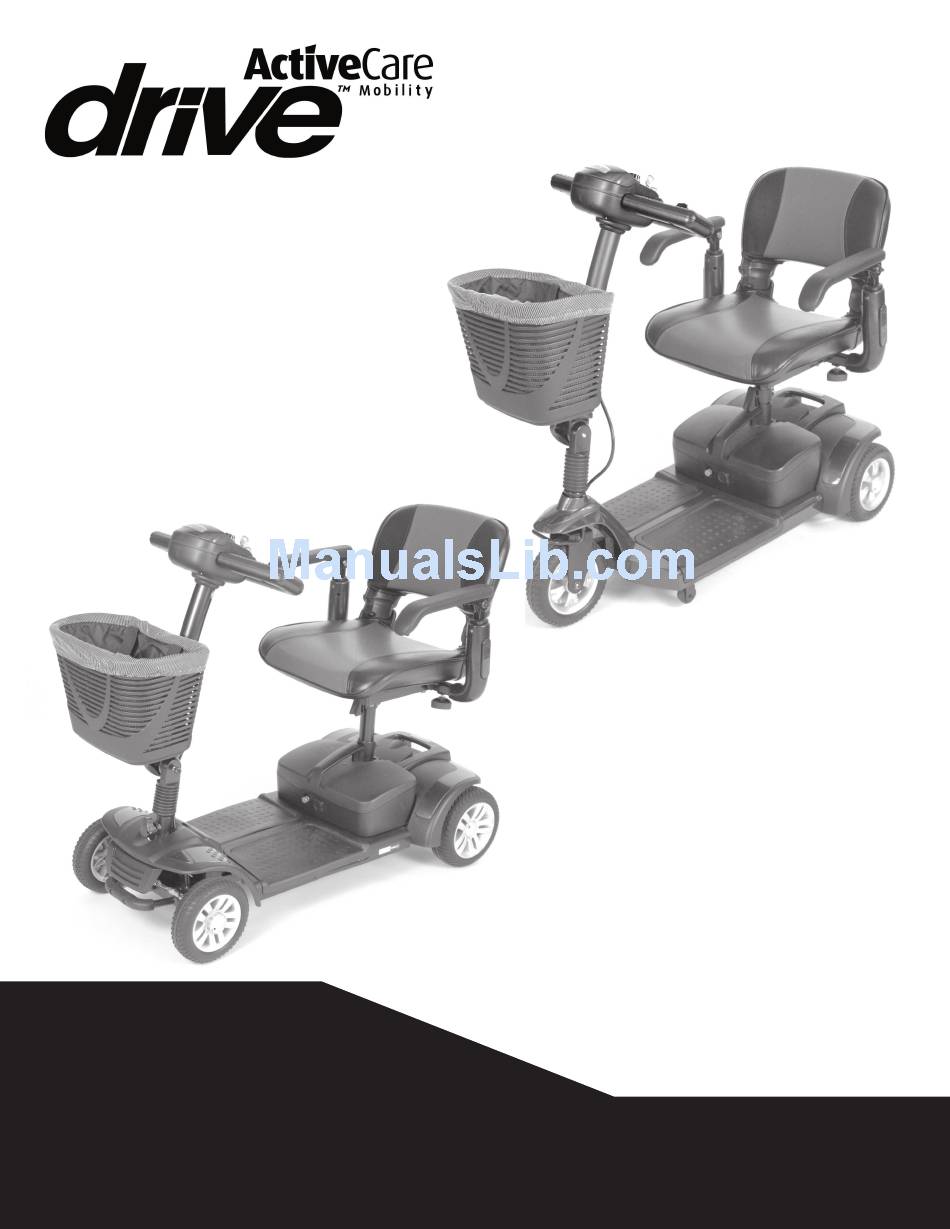

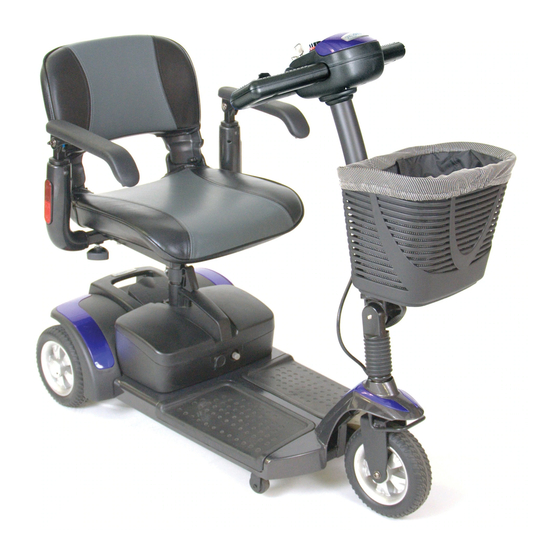

- Page 1 Spitfire EX 1320/1420 Rev1-03/24/15 Mobility Scooter Owner's Manual...
-
Page 2: Table Of Contents
Inspection & Maintenance ......................14 Daily Checking..............................14 Regular Maintenance Record........................14 Battery, Fuses, Circuit Breaker and Tires ....................16 Maintenance ..............................16 Storage ................................17 Troubleshooting ..........................18 Specifications........................... 20 10. Limited Warranty ..........................21 Product Registration ........................22 Spitfire EX 1320/1420 Owner’s Manual... -
Page 3: Preface
We reserve the right to make design modifications. The manufacturer disclaims all responsibilities for any personal injury or property damage which may occur as a result of improper or unsafe use of its products. Spitfire EX 1320/1420 Owner’s Manual... -
Page 4: Safety Notices
Serious harm or injury may occur. Do not stretch your body out on the scooter Such action may cause you to lose your balance or be injured. Also, pay attention to loose clothing that could get tangled in the wheels. Spitfire EX 1320/1420 Owner’s Manual... - Page 5 When climbing up an incline, please drive slowly. You can set the speed dial to a higher speed of “5”. When going down an incline, never reverse your scooter. Set the speed dial to the lowest speed setting “1”.
-
Page 6: Electromagnetic Interference (Emi)
NOTE: Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD player, and cassette players, and small appliances, such as electric shavers and hair dryers, are not likely to cause EMI problems to your mobility scooter. Spitfire EX 1320/1420 Owner’s Manual... -
Page 7: Powered Scooter Electromagnetic Interference (Emi)
4. Be aware that adding accessories or components, or modifying the mobility scooter, may make it more susceptible to EMI. 5. Report all incidents of unintended movement or brake release to ActiveCare Medical, and note whether there were sources of EMI nearby. Spitfire EX 1320/1420 Owner’s Manual... -
Page 8: Parts
7. Connecting device 8. Battery pack 9. Charger socket 10. Tiller lock 11. Battery gauge 12. Horn button 13. Speed dial 14. Throttle lever 15. Diagnostic light 16. Key switch 17. Freewheel mode lever 18. Anti-tip wheel Spitfire EX 1320/1420 Owner’s Manual... -
Page 9: Operation
1. It is recommended that you charge the battery immediately when the battery gauge is in the red area. 2. After charging or replacing a new battery, drive the scooter for 2-3 minutes to make sure the battery capacity is enough. -
Page 10: Assembly
ASSEMBLY No tools are required to disassemble or assemble your scooter. Place the freewheel mode lever in the drive position. Set the rear section in the up position and make sure the hook for the front section is connected to the axle of the rear section. (See Fig. 1) Put down the front and rear sections until the scooter is level. -
Page 11: Tiller Adjustment
Make sure the tiller is raised before reassembling the scooter. Turn key switch to “OFF”. Place the free wheel mode lever in the drive position. Pull upward on the swivel-release lever to remove the seat from seat post. Pick up the battery pack and remove it from the scooter. -
Page 12: Driving Your Scooter
The driving speed of the scooter is set via the speed control knob located on the control panel. When the knob is turned to a position, the scooter will drive only at the speed indicated by the knob. The scooter will travel faster the farther the knob is turned clockwise. To reduce the scooter’s travel speed, turn the knob back counter-clockwise. -
Page 13: Batteries & Charger
4. Do not cover the scooter with any waterproof cloth or other objects while charging. 5. Do not charge in temperatures lower than 14 F or higher than 122 F, the charger may not work properly and the battery may be damaged Spitfire EX 1320/1420 Owner’s Manual... -
Page 14: Specifications
2. Battery capability will vary with outside conditions; the driving distances will be shorter in the winter. 3. If the scooter is not to be used for a long time, please charge the battery every three months. 4. Replace both batteries at the same time. Spitfire EX 1320/1420 Owner’s Manual... -
Page 15: Inspection & Maintenance
To make sure your scooter is in good condition, go to your dealer regularly for maintenance and record it accordingly every six months after purchasing (fee required). Suggestion Even if you don’t use the scooter for a long time, the scooter should still be maintained regularly. Spitfire EX 1320/1420 Owner’s Manual... - Page 16 Crack or damage of tire surface Tire Tread depth enough or not Abnormal wearing Tightness of bolts and nuts Wear or deformation around tires Tightness of bolts and nuts Shock Absorber Damage to shock absorbers Checked by Inspector Checking date Spitfire EX 1320/1420 Owner’s Manual...
-
Page 17: Battery, Fuses, Circuit Breaker And Tires
Reset the circuit breaker by pressing the button. Tires The condition of the tires depends on how you drive and use your scooter. Please check the tread depth regularly. Replace the tires when the tread depth is less than 0.5 mm. Regularly inspect your scooter’s tires for signs of wear. -
Page 18: Storage
Please store the scooter in a location where it is out of direct sunlight, rain, or dew. When storing for long periods of time, please charge the battery every 3 months. For further details, inquire with your dealer. Spitfire EX 1320/1420 Owner’s Manual... -
Page 19: Troubleshooting
1. Turn key switch to “ON”. not move 2. Main circuit breaker tripped 2. Reset circuit breaker in trunk area. 3. Brake release lever in ‘Freewheel 3. Place lever to ‘Drive Mode’. Mode’ 4. Charger connected to outlet 4. Disconnect charger. 5. Battery power low 5. - Page 20 Check the parking brake and connection. motor connections. Make sure the controller connections are secure. Excessive voltage has been Check the battery connections. applied to the controller. This is usually caused by a poor battery connection. Spitfire EX 1320/1420 Owner’s Manual...
-
Page 21: Specifications
40 lbs. 33.5 lbs. section) REMARK: Drive reserves the right to modify the specifications if necessary. The final specifications are subject to the individual scooter your purchase from your dealer. User’s weight, road conditions, battery charge, etc. will influence performance. -
Page 22: Limited Warranty
Spitfire EX 1320/1420 Owner’s Manual... -
Page 23: Product Registration
Thank you for purchasing a Drive power mobility product! Your Drive product will provide you years of dependable service and mobility ease. To validate your product’s warranty, you must complete this form and return it to Drive Medical immediately. Please print or type. - Page 24 _____________________________ Place Stamp _____________________________ Here _____________________________ Drive Medical Product Registration 99 Seaview Blvd. Port Washington, NY 11050 --------------------------------------------------------- Fold Here Fold Here -------------------------------------------------------------------------------Fold Here Seal This Side...
