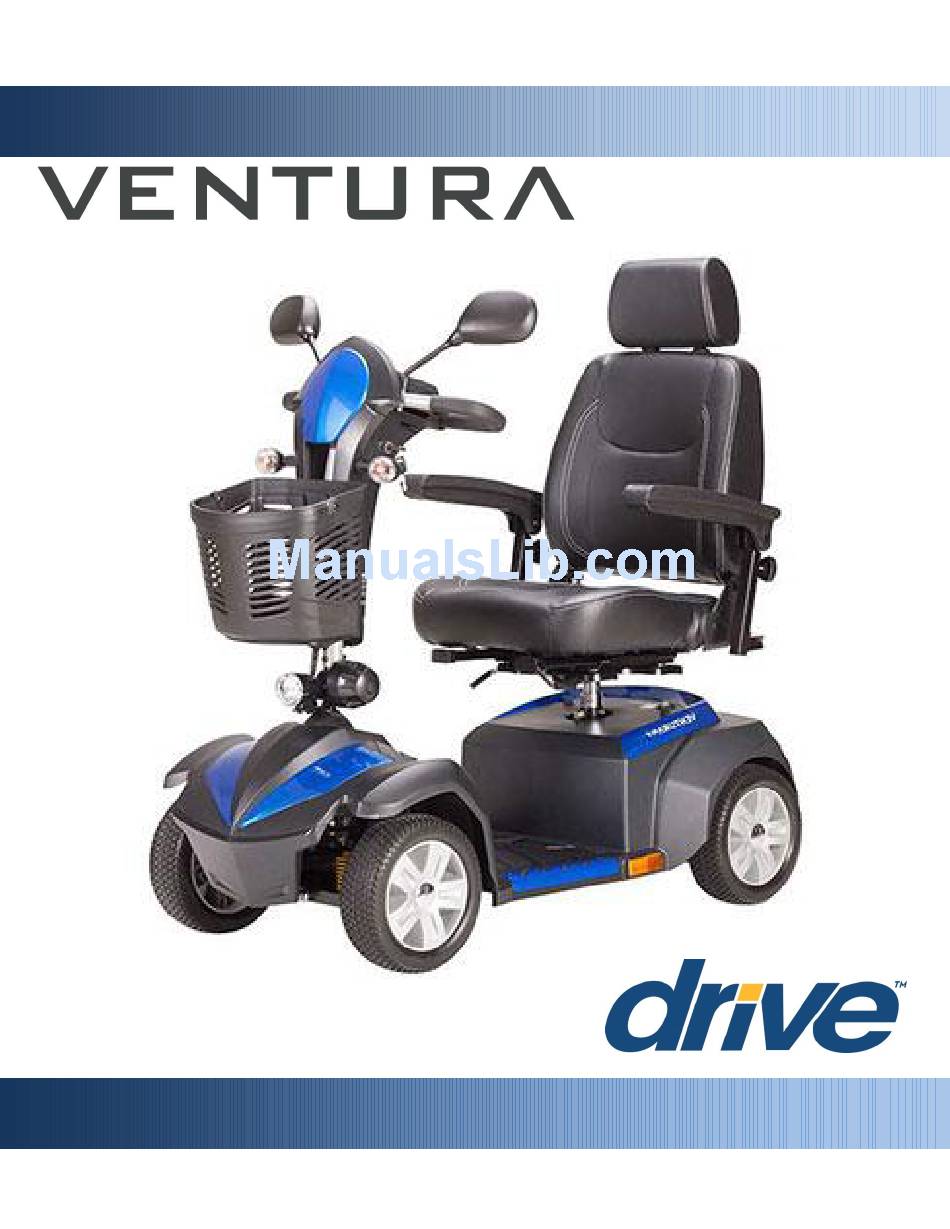

  • Page 1 VENTURA & VENTURA DLX OWNER’S MANUAL...

  • Page 2: Table Of Contents

    PREFACE SAFETY NOTICES III. SAFETY GUIDELINES EMI & RFI INFORMATION PARTS ASSEMBLY VII. COMFORT ADJUSTMENTS VIII. OPERATION BATTERIES & CHARGING INSPECTION & MAINTENANCE BASIC TROUBLESHOOTING XII. SPECIFICATIONS XIII. LIMITED WARRANTY XIV. ACCESSORIES Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...

  • Page 3: Preface

    The manufacturer disclaims all responsibilities for any personal injury or property damage which may occur as a result of improper or unsafe use of this product. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...

  • Page 4: Safety Notices

     Always make sure the power is turned off when getting in and out of the scooter.  Always make sure freewheel levers are in the drive position before getting in or out of the scooter.  Do not put the scooter in freewheel when on an incline or decline.
  • Page 5 Do not stand on the foot board.  Keep your hands and feet away from moving parts while driving.  Be aware of loose fitting clothes that can become caught in the drive wheels.  Do not connect an extension cord to the battery charger. ...

  • Page 6: Safety Guidelines

    MODIFICATIONS Do not modify, remove, disable, or add any parts, features, or functions on your scooter. Drive Medical offers a wide variety of accessories for your scooter to help accommodate your needs. WARNING – Do not modify your scooter in any way; doing so will void the warranty.
  • Page 7 WARNING – Never put the scooter in freewheel model while on an incline. WARNING – Drive your scooter straight up or down an incline, never backwards. Erratic movements, or back and forth patterns may increase the chance of tipping.
  • Page 8 Disengaged, or “freewheel” mode, releases the locking mechanism on the gearbox allowing the scooter to roll freely with or without power. Engaged, or “drive” mode, secures the locking mechanism on the gearbox preventing the scooter from rolling freely. WARNING – Never attempt to personally put your scooter in freewheel mode while seated in the unit.
  • Page 9 OUTDOOR OPERATION & INCLEMENT WEATHER PRECAUTIONS While your scooter is purposed for in-home use to assist you in daily living activities; Drive Medical understands there are times you need to operate the scooter outdoors, and has designed it to perform superbly on level outdoor surfaces.
  • Page 10 CORRECT INCORRECT APPROACH: APPROACH: Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...

  • Page 11: Transporting Your Scooter

    WARNING – Do not sit in your scooter while in a moving vehicle. POSITIONING BELT (OPTIONAL) A safety belt may be included with your scooter. Your authorized Drive Medical Provider, assistive technology therapist, or healthcare professional are responsible for determining your requirement for a safety belt to operate your scooter safely. Once determined, securely fasten the safety belt.
  • Page 12 ATTENTION – Be aware of your own physical limitations when familiarizing yourself with the scooter. ATTENTION – Be aware of precautions, warnings, and safety issues when taking prescribed or over-the-counter drugs while operating your scooter. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...

  • Page 13: Emi & Rfi Information

    WARNING – Be aware of nearby transmitters, such as radio or television stations, and avoid close proximity. WARNING – If you experience unintended movement or brake release occurs, power off as soon as it is safe. Please report EMI incidents to Drive Medical. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com...

  • Page 14: Parts

    9. Tiller Adjustment Knob 10. Turn Signals 11. Headlight 12. Front Bumper 13. Seat Swivel & Release Lever 14. Seat Post 15. Footboard 16. Accessory Post 17. Tail Lights 18. Freewheel Lever 19. Anti-tip Wheels Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...
  • Page 15 2. Headlight Button 3. Hazard Light Button 4. Battery Indicator 5. Indoor/Outdoor Switch o (DLX Only) 6. Horn Button 7. Turn Signals Switch o (DLX Only) 8. Throttle 9. Key Switch 10. Charge Port Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...

  • Page 16: Assembly

    Step 2: Connect red battery connector to the main cable. Step 3: Reinstall the scooter’s shroud by placing on top of the base, and reinstall the two shroud knobs removed in Step 1. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...
  • Page 17 Insert the armrests into the attachment points in the seat frame so that the armrests face forward. Step 6: Insert and tighten the included star knobs to lock the armrests into place at the desired width. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...
  • Page 18 VI. ASSEMBLY Step 7: Affix the headrest to the top of the seat by inserting the headrest posts into the holes in the top of the seat. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...

  • Page 19: Comfort Adjustments

    Adjust the seat post to the desired height, and reinstall the nut and bolt removed. Be sure the nut and bolt are tightened securely to reduce vibrations, and improve stability. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...
  • Page 20 Seat Recline: The recline angle of the seat can be adjusted by pulling up on the lever on the side of the seat. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...
  • Page 21 The armrest angle can be adjusted by lifting up on the armrest, and tightening or loosening the bolt underneath the armrest. Tightening will lower the angle, and loosening will raise the angle of the armrest. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...

  • Page 22: Operation

    Rotate the speed knob to the lowest speed setting. Engage the throttle, and begin steering to drive forward, backward, left or right. If you want to stop the scooter, release the throttle and it will automatically return to the center position to stop the unit.

  • Page 23: Batteries & Charging

    SUGGESTION – If you use your scooter infrequently, charge the batteries once a week for 10 to 14 hours. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...
  • Page 24 SUGGESTION – When transporting your scooter on public transportation contact your carrier’s ticket counter in advance to determine their specific requirements. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...

  • Page 25: Inspection & Maintenance

    Your scooter is an advanced mobility device, and with the correct routine maintenance you can ensure years of maximum use. While some of the maintenance can be done by yourself, you may need assistance from an authorized Drive Medical provider. If you have any doubts, contact your authorized Drive Medical provider.
  • Page 26 WARNING – Never hose off your scooter or expose it to direct contact with water. WARNING – Never use any chemicals on the upholstery of your seat, this may cause the seat to dry out and crack. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...
  • Page 27 Drive Medical provider for information on proper disposal. CONTACTING YOUR AUTHORIZED DRIVE MEDICAL PROVIDER The following conditions may indicate a serious problem with your scooter. Contact your authorized Drive Medical provider if one of the following conditions occurs:  Motor or gearbox noise ...

  • Page 28: Maintenance Schedule

    Check the entire scooter and clean any mud, dirt, hair, food, drink, etc. on the unit SUGGESTION – Once a year take your scooter to an authorized Drive Medical provider for inspection and maintenance. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com...

  • Page 29: Basic Troubleshooting

    ATTENTION – Your scooter may have a diagnostic light on the tiller that will stay on constantly. The light will begin to flash when you have a serviceable item. Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...

  • Page 30: Specifications

    169 lbs. / 198 lbs. (4-wheel) * Speed and range vary with user weight, type of terrain, battery charge and condition The information contained herein is correct at the time of publication; Drive Medical reserves the right to alter specifications without prior notice.

  • Page 31: Limited Warranty

    ADDITIONAL COMPONENTS Items not mentioned or listed are covered at the discretion of Drive Medical. Any accessories, standard or optional, supplied by Drive Medical, are covered for a period of one year from the date of purchase with the particular unit.
  • Page 32 REPLACEMENT PARTS WARRANTY Some states do not allow limitations on how long an implied warranty lasts or do Parts that are supplied by Drive Medical as replacements to warranted parts will be not allow the exclusion or limitation of warranted for a period of time equal to the incidental, punitive, special and remainder of the original part’s warranty...

  • Page 33: Accessories

    XIV. ACCESSORIES Add functionality and convenience to your Drive scooter with these options and accessories. Contact your authorized Drive Medical provider or visit www.drivemedical.com for more information. Dust Cover Trailer Oxygen Tank Holder Crutch/Cane Holder Part#: AZ1000 Part#: AT1000 Part#: AH2000...
  • Page 34 Drive Medical Design & Manufacturing 99 Seaview Boulevard Port Washington, NY Tel: (516) 998-4600 Fax: (516) 566-2043 www.drivemedical.com Ventura & Ventura DLX Owner’s Manual www.drivemedical.com REV.2.09.25.15...
