Install the Wing Joiner

❏

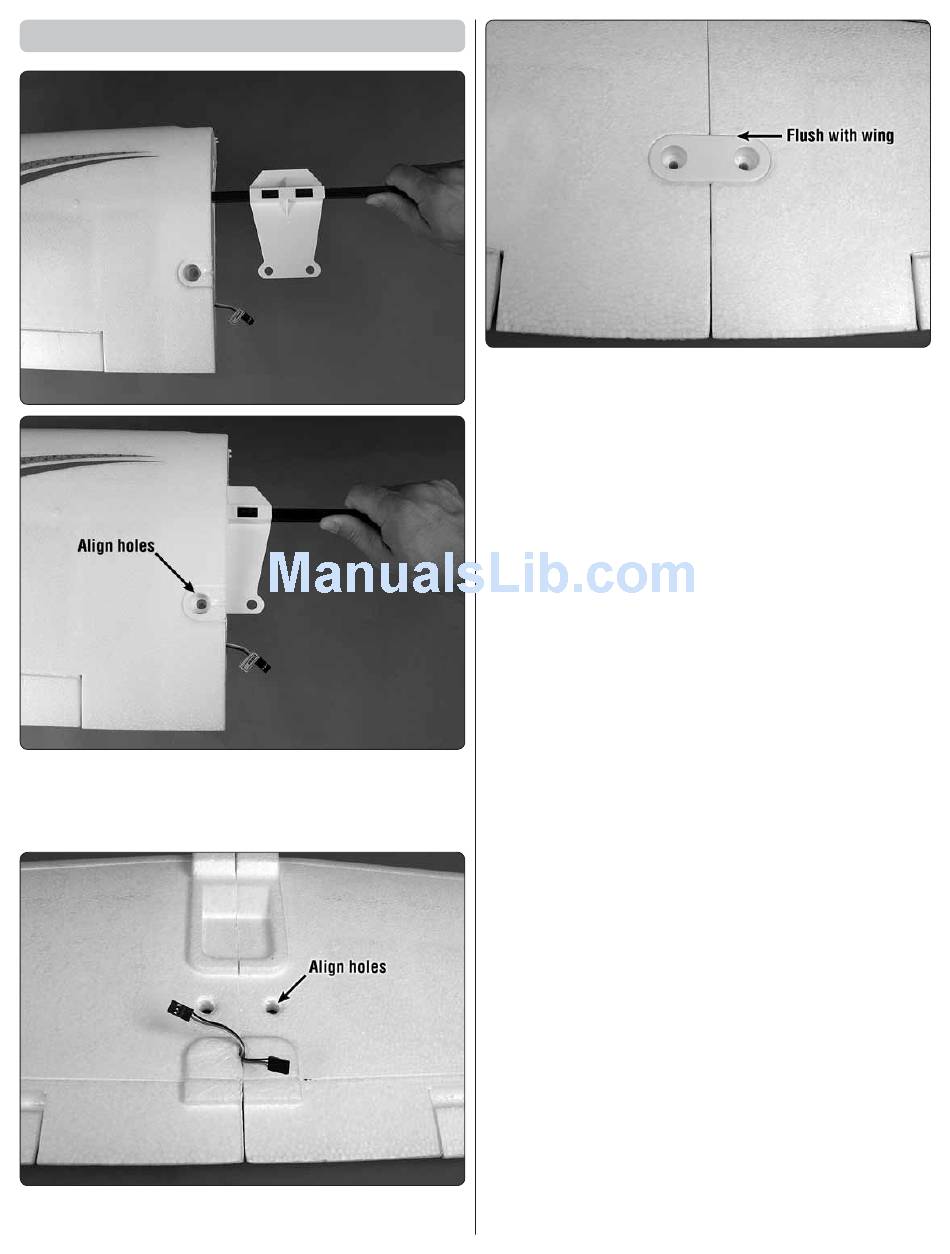

1. Holding the left wing half upright, carefully insert the wing
joiner into the wing half until the wing bolt hole in the joiner
aligns with the wing bolt hole in the wing.
❏
2. Insert the wing joiner in the right wing. Route the aileron
servo wires out the bottom of the wing.
❏
3. Insert the plastic wing connector in the top of the wing.
Note that the connector is angled to match the angle of the
top of the wing. When correctly installed, the connector should
be fl ush with the top of the wing.
7
