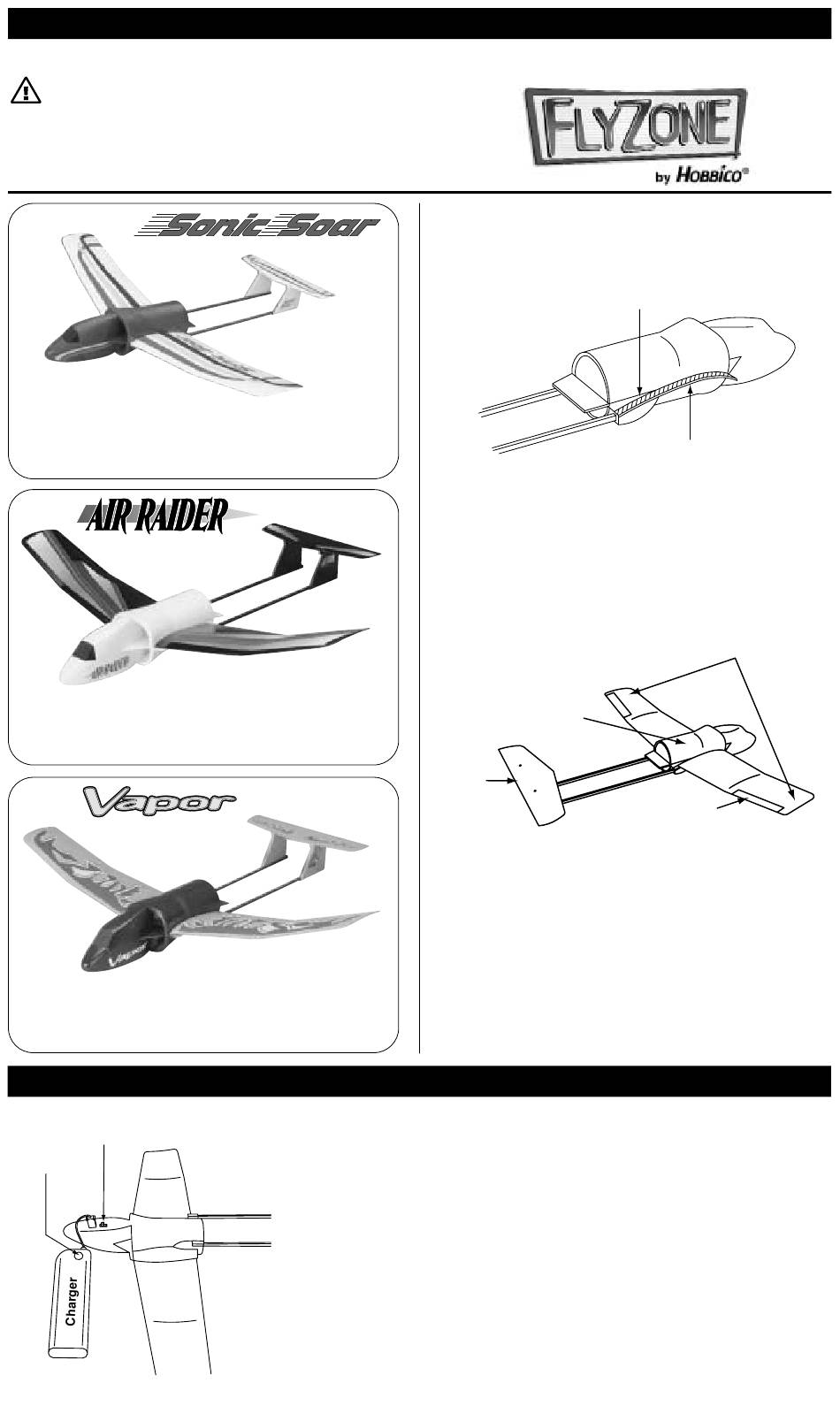

Hobbico FLYZONE Assembly

ASSEMBLY OF YOUR ELECTRIC FREE-FLIGHT SONIC SOAR, AIR RAIDER, OR VAPOR
Read ALL instructions carefully! Improper use of this product may result in personal injury or damage to the public.
WARNING:
CHOKING HAZARD: Small parts.
Not for children less than 3 years.
Recommended for ages 10 and up.
Use with adult supervision.
Replacement Parts
HCAP9905 Charger
HCAA3295 Wing / Horizontal Tail Assembly
HCAA3296 Vertical Tail w/ Tail Boom (2)
Replacement Parts
HCAP9905 Charger
HCAA3400 Wing / Horizontal Assembly
HCAA3401 Vertical Tail w/ Tail Boom (2)
Replacement Parts
HCAP9905 Charger
HCAA3405 Wing / Horizontal Tail Assembly
HCAA3406 Vertical Tail w/ Tail Boom (2)
On/Off
Switch
Push
Button
Entire Contents © Copyright 2001
HCAA0350
HCAA0351
HCAA0352
1. Remove the back cover of the charger.
Install 6 "C" alkaline batteries according to
the diagram in the charger. Put the cover
back on the charger. CAUTION: Do not use
rechargeable (nickel cadmium) batteries.
Do not mix old and new batteries. Do not
mix alkaline, standard (carbon zinc), or
rechargeable (nickel cadmium batteries).
2. Before charging your free flight
airplane, make sure the "on/off" switch is
in the "off" position.
3. Insert the charger into the charge
socket on the underside of the airplane.
The charger will only fit one way so match
WARNING:
1. Prepare the fuselage.
• Remove the backing paper from the double-sided tape on
the wing mounts and the underside of the wings.
2. Install the main wings.
Fuselage
Tail
• Note direction of the main wing before mounting. The wing
tips should face upwards and control surfaces should face
the tail of the airplane.
• Align the front of the wing to the front of the wing mount.
• Make sure the wing is against the fuselage and press the
wing onto the double-sided tape.
• Repeat steps for mounting the other wing.
CHARGING
Double-Sided
Tape
Wing
Mount
Wing Tips Up
Control Surface
the tab on the charger with the notch on
the charge socket. Push and hold the
charge button to charge the plane.
4. On the first charge, only charge the
airplane for 30 seconds. For longer flights,
you may increase the charge time up to
60 seconds.
5. Never charge the airplane for more
than 60 seconds. If you do, you may
overheat the batteries in the airplane or
the charger and damage them.
6. When charging is complete, remove
the charger for the airplane.
HCAZ3108 for HCAA0350/0351/0352
