Page 1: User Manual

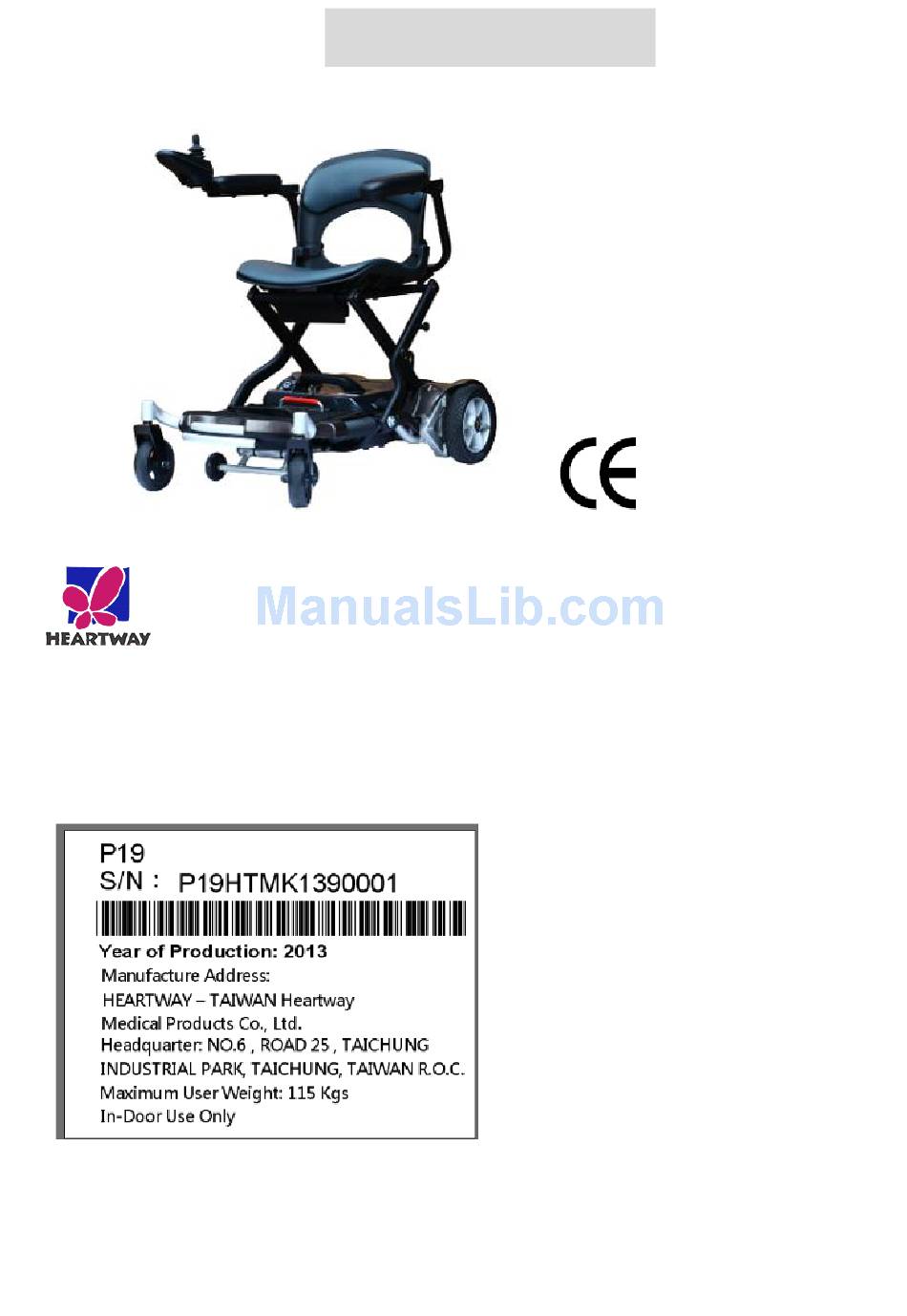

USER MANUAL wheelchair Electrically powered Class A (EN 12184) HEARTWAY MEDICAL PRODUCTS CO., LTD. NO. 6, ROAD 25, TAICHUNG INDUSTRIAL PARK, TAICHUNG. TAIWAN R.O.C.408 PUBLISHED: December 10 , 2013 P.N.: 70030318... - Page 2 SAFETY INSTRUDCTION General Always use a seat belt, and keep your feet on the Never operate the scooter while you are under the scooter all the time. influence of alcohol Make sure that there are no obstacles behind you Never use electronic radio transmitters such as while reserving your scooter.
- Page 3 Do not attempt to climb curbs greater than limitation Do not leave your hands and legs off the scooter when show on Technical Specification driving. Do not rider your scooter during snow in order to avoid Do not allow unsupervised children to play near this accident on slippery road.
- Page 4 However, under no circumstances should you modify, add, remove, or disable any part or function of your power wheelchair. Do not modify your P19 in any way not authorized by Heartway Manufacturer. Unauthorized modifications may result in personal injury and/or damage to your power chairs. Do not use accessories if they have not been tested or approved for Heartway products.
-
Page 5: Weight Limitation
Inspections prior to using your power wheelchair 1. If equipped with pneumatic tires, please check for proper tire inflations. 2. Please check all electrical connections and make sure they are tight and not corroded. 3. Please check all harness connections and make sure they are secured properly. 4. -
Page 6: Electromagnetic Interference (Emi)
The United States Food and drug Administration (FDA) suggests that the following statement be incorporated to the user’s manual for all power wheelchairs like the P19. Power wheelchairs may as susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy emitted from sources such as radio stations, TV stations, amateur radio (HAN) transmitter, two-way radios, cellular phones and alarm systems of shops. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL WEIGHT CAPACITY 115kgs(250 lbs) SEAT: TYPE/SIZE 16" Fish-on DRIVE WHEEL 200*50 (PU TIRE) 5*1-1/2" (PU TIRE) FRONT CASTER (WHEEL) MAX SPEED 6Km/hr 12V 12AHX2 BATTERY SPECIFICATIONS BATTERY RANGE 15Km CHARGER TYPE 5 AMP Charger -- 4C24050A CONTROLLER TYPE Dynamic 40 AMP Controller TRAVELLING RANGE Lithium 20 km/h. - Page 8 It is very easy to assemble your P19 scooter. Please follow the procedure below. P19 power scooter has aluminum alloy body and can be easily folded to fit in the car for transportation. It also has easy to use controls and adjustable tiller positioning.
- Page 9 Please hold the rear handle bar and front handle bar to lift P19 Make sure to open the P19 until four wheels Pull down the front handle bar and pull up the ouch the ground and you hear a click indicating...
- Page 10 Storage Your power chair should be stored in a dry place, free from temperature extremes. When storing, disconnect the batteries from the power chair. If you fail to store the unit properly, the frame can rust and the electronics can be damaged. ...
-
Page 11: Operation Of Control Panel
For outdoor operation of this vehicle we recommend that you select a speed that is comfortable for you to control it safely. The following steps are required to operate your vehicle safely with the controller-can use for P19 Joystick Battery... - Page 12 the joystick to its neutral position (center) will reduce the speed and stop the vehicle by automatically applying the electromagnetic brakes. Notes: After pressing the controller ON/OFF switch, allows two seconds to elapse before engaging the joystick. This is a safety feature to prevent sudden start. Gentle operation of the joystick will result in smoother transitions in speed and direction, while sharp operation of the joystick will result in drastic transitions in direction and velocity.
- Page 13 Parking brake: There is an automatic parking brake function included in the electromagnetic brake. The power wheelchair will stop when the motor is engaged and the power switch is off or when the power switch is on and the wigwag is in the neutral position.
-
Page 14: Battery Charger
Deep-cycle batteries are specifically designed to provide power, drain down, and then accept a relatively quick recharge. Lead-acid batteries should be charged as often as possible. Specification of the battery that we recommend for P19 is Deep –cycle sealed lead-acid or gel cell... - Page 15 Charger Specification Item BATTERY CHARGER (SWITCHING MODE) Model 4C24050A Output Current(DC) Charging Voltage(DC) 28.8V Floating Voltage(DC) 27.6V Input Current (AC) 4/2 A Input Voltage(AC) 115 Vac Or 230 Vac 50/60 Hz (Manual Select) Efficiency AC-DC 80% min Operating Temperature 0°C ~ 40°C Performance Switching Mode Charging Method...
-
Page 16: Led Indication
OPERATING INSTRUCTION Make sure the battery charger output voltage is the same as the connecting battery. Plug in the power cord. LED indicates green flash when AC power on. Connect the battery charger to the battery. Start charging; 4. LED INDICATION (1)Green Flash：Power on (2)Orange：Charging (3)Orange Flash：Pre charge... - Page 17 (5) If the charging indicator (orange) turns to green (fully charged) immediately： ․The battery may be in well-charged condition. ․The battery may be defective if the battery is not fully charged. 6. CAUTION (1) Before using the battery charger, read all instructions and cautionary markings. (2) Use the battery charger in a well-ventilated area (3) To avoid the risk of injury, charge only lead-acid or gel cell type rechargeable batteries.
- Page 18 BATTERY INDICATOR A battery indicator is to provide information about the travelling range remaining. Indicator Travelling Range Remaining Full 15 km Traveling Range Remaining Green Area 7~15 km Travelling Range Remaining Yellow Area 4~7 km Travelling Range Remaining Red Area 1~4 km Travelling Range Remaining 0 Kilometer...
-
Page 19: Maintenance Instruction
MAINTENANCE INSTRUCTION Read through the charger operating instruction before using it. Make sure you charge the battery every time after you use the power chair or scooter. Charge the battery at least 24 hours a week if the power chair or scooter has not been used. (This is to make sure that the electrolyte is always at the top level) ... -
Page 20: Maintenance And Repair
MAINTENANCE & REPAIR Your power wheelchair is designed for minimal maintenance. However, like any motorized vehicle it requires routine maintenance. To keep your P19 for years of trouble-free operation, we recommend you follow the following maintenance checks as scheduled. The motor surface can reach temperatures greater than 41°C after driving. Do not touch these parts... - Page 21 CHECKS: Make sure to keep the controller clean while protecting it from rain or water. Never hose off your power wheelchair or place it in direct contact with water. Keep wheels free from lint, hair, sand and carpet fibers. ...
- Page 22 TROUBLESHOOTING & FAULT REPAIR Dynamic 40 AMP CONTROLLER: Your power wheelchair is fitted with DYNAMIC controller, which continuously monitors the operating conditions of your power wheelchair. If it detects a problem it will indicate with error message by flashing light on the power ON/ OFF light. You must count the number of the flash, and see the list to check what kind of error has happened according to the number) If, when powered up, there is an error with the system, then the status indicator will flash red.
-
Page 23: Circuit Diagram
CIRCUIT DIAGRAM... - Page 24 BOM LIST DRAWING...
-
Page 25: Warranty Declaration
Note: If you encounter a damaged or cracked battery; please enclose it in a plastic bag and call the local authorized dealers immediately for instructions on disposal and recycling. HEARTWAY MEDICAL PRODUCTS CO., LTD. NO. 6, ROAD 25, TAICHUNG INDUSTRIAL PARK,...
