Step 1, Determine Ductwork And Wiring Locations - Monogram ZV48T Installation Instructions Manual

Installation instructions

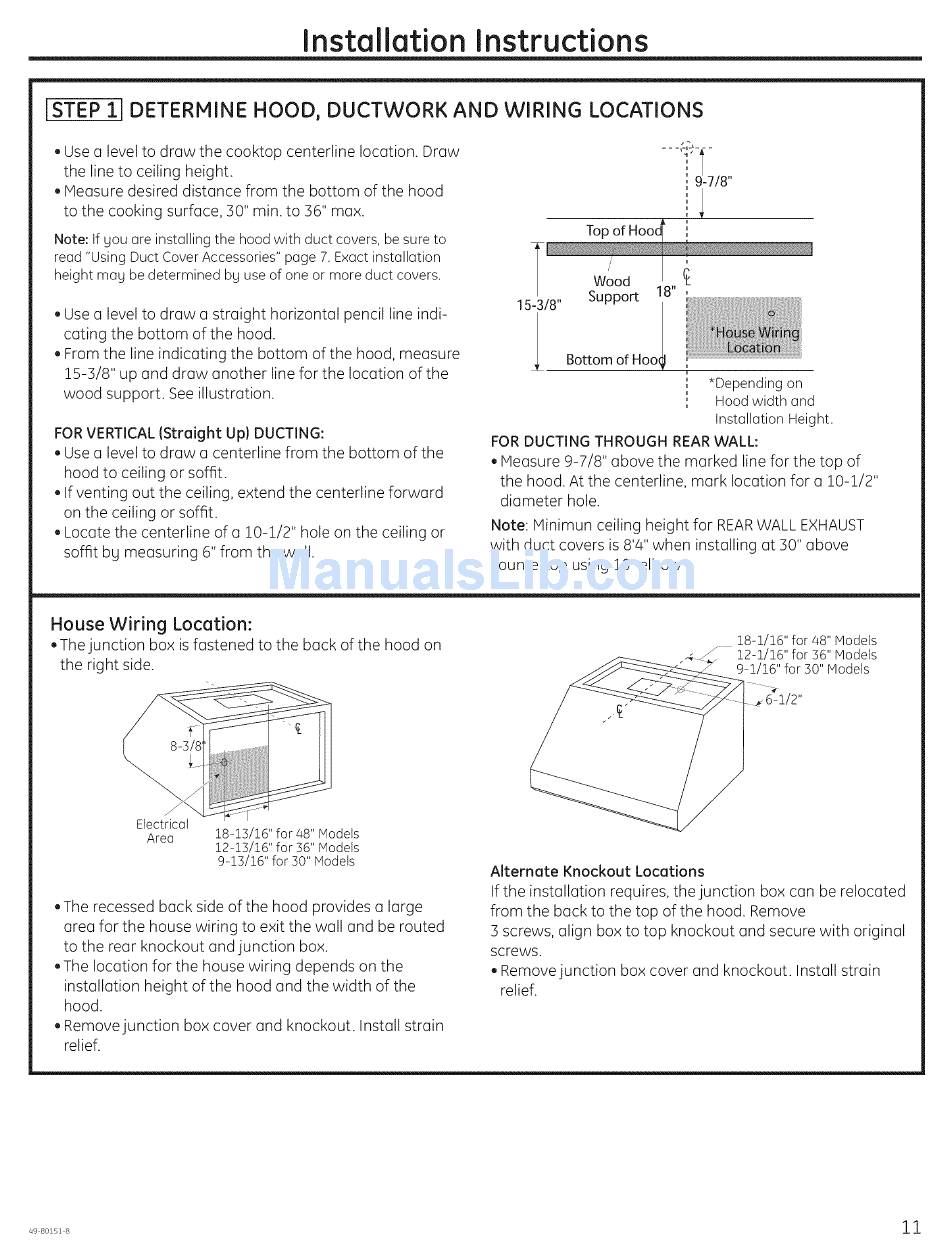

ISTEP 11 DETERMINE HOOD, DUCTWORK AND WIRING LOCATIONS
. Use a level to draw the cooktop centerline location. Draw
the line to ceiling height.
. Measure desired distance from the bottom of the hood
to the cooking surface, 30" min. to 36" max.
Note: If gou are installing the hood with duct covers, be sure to
read "Using Duct Cover Accessories" page 7. Exact installation
height mog be determined bg use of one or more duct covers.
. Use a level to draw a straight horizontal pencil line indi-
cating the bottom of the hood.
. From the line indicating the bottom of the hood, measure
15-3/8" up and draw another line for the location of the
wood support. See illustration.
FORVERTICAL(Straight Up} DUCTING:
. Use a level to draw a centerline from the bottom of the
hood to ceiling or soffit.
. If venting out the ceiling, extend the centerline forward
on the ceiling or soffit.
. Locate the centerline of a 10-1/2" hole on the ceiling or
soffit bg measuring 6" from the wall.
/
/
Wood
15-3/8" Support 18" ,
/
, Bottom of Hoo_ I
I *Dependingon
i
I Hoodwidth and
Installation Height.
FORDUCTING THROUGH REARWALL:
. Heasure 9-7/8" above the marked line for the top of
the hood. At the centerline, mark location for a 10-1/2"
diameter hole.
Note: Minimun ceiling height for REARWALL EXHAUST
with duct covers is 8'/4"when installing at 30" above
countertop using 10" elbow
House Wiring Location:
.The junction box is fastened to the back of the hood on
the right side.
Electrical
Area
18-13/16" for 48" Hodels
12-13/16" for 36" Hodels
9-13/16" for 30" Models
.The recessed back side of the hood provides a large
area for the house wiring to exit the wall and be routed
to the rear knockout and junction box.
.The location for the house wiring depends on the
installation height of the hood and the width of the
hood.
. Remove junction box cover and knockout. Install strain
relief.
Alternate Knockout Locations
If the installation requires, the junction box can be relocated
from the back to the top of the hood. Remove
3 screws, align box to top knockout and secure with original
screws.
. Removejunction box cover and knockout. Install strain
relief.
