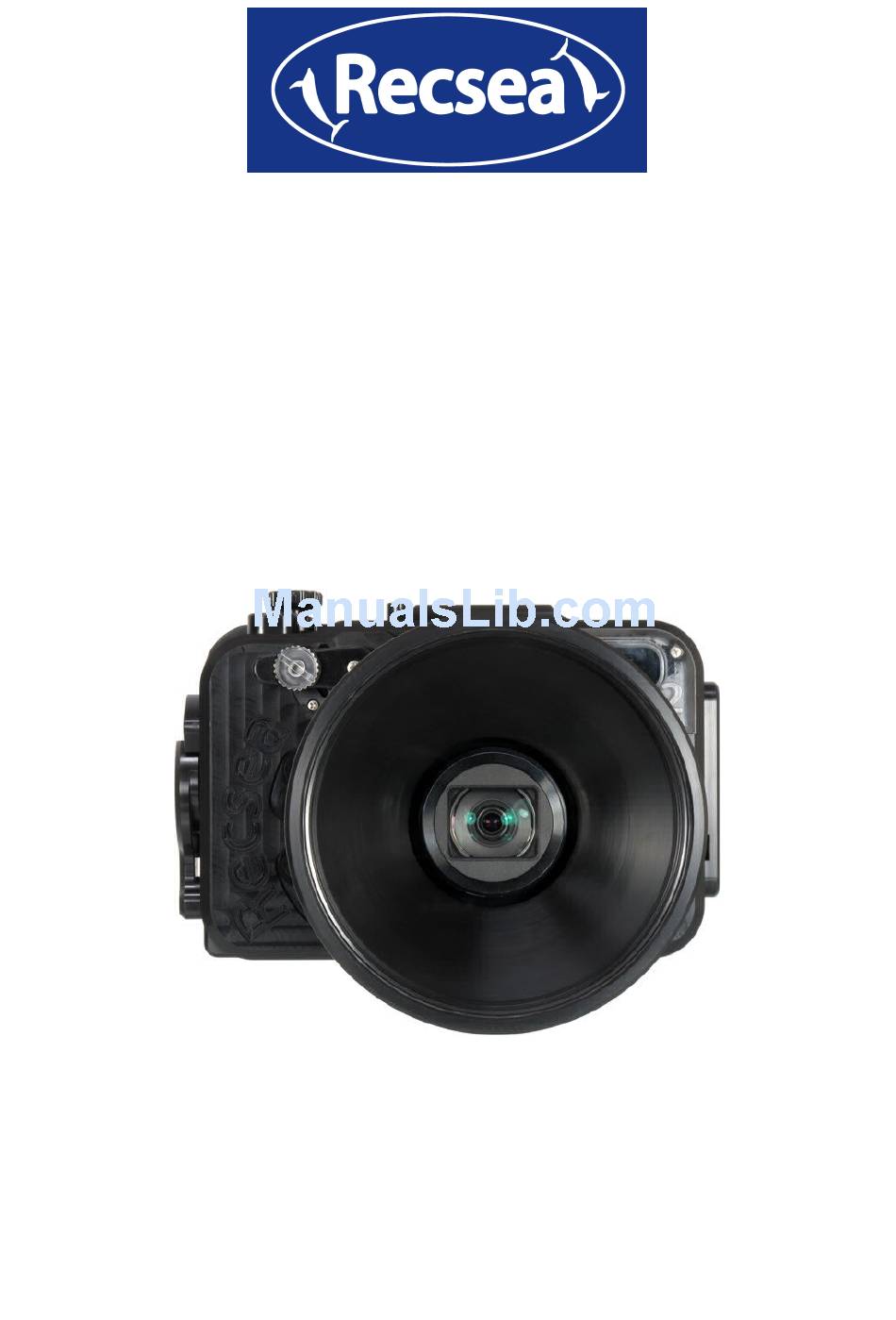

- Page 1 OLYMPUS STYLUS SH-2 and SH-1 Waterproof Housing Recsea CWOP-SH2 MANUAL Please read this manual before use. NTF CORPORATION UH Division http://www.seatool.net...
-
Page 2: Features Of This Product
※ Changeable Lens Port with Dual Lens Port O-ring system. ※ Port Control Ring Dial. ※ Complete camera function control. ※ New RECSEA dial locking system for easier opening and closing. ※ Quality silicone O-ring. ※ Variety of supported RECSEA original options. - Page 3 HOUSING PACKAGE CONTENTS Be sure all items listed here are included: ・CWOM-SH2 Waterproof Housing ・Strobe Mask-External Strobe Connection ・Lens Cover Mount (Fiber-Optic/SEA&SEA) and Screw ・Diffuser ・Wrist Strap ・Housing Reserve O-ring x 1 ・Lens Port Reserve O-ring x 2 ・O-ring Grease w/O-ring Removal Pick GETTING TO KNOW YOUR CWOM-SH2 HOUSING...
-
Page 4: Warranty Information
Dealer Name Serial Number ※Dealer: Stamp your company name and contact information, purchase date, model and serial number. Recsea/Seatool Manufacturing & Sales NTF CORPORATION UH Division 390-1 Mii, Midori-Ku, Sagamihara-Shi Kanagawa 252-0151, Japan T: +81 (0)50-7541-0294 F: +81 (0)42-780-5720... - Page 5 ※ Please refer to camera manual for explanation of camera controls. Attach Diffusers as shown above using the grooves provided on the Lens Ports.
-
Page 6: Maintenance
INSTALLING LENS PORT ※ Perform proper Lens Port O-ring and Housing O-ring Contact Surface maintenance prior installation described MAINTENANCE O-RING GREASING & ※ MAINTENANCE ( 1) on pa ges seven (7) and eight (8). ※ Please conduct the following operations in a clean area with low humidity and dust. CAUTION! Use the Lens Ports intended for the mode in which you plan to shoot. - Page 7 OPENING AND CLOSING THE BACK COVER ※ Please do the following operations in a clean area with low humidity and dust. Open & Close Dial Locks in two places, in the open position and in the closed position. 1. To open, while pressing the Open & Close Lock Button, turn the Open & Close Dial Lever to the right (clockwise).
-
Page 8: Removing Camera
※ NOTE: Firmly press Lock Button while turning dial. Failing to do so may cause damage to locking mechanisms. INSTALLING CAMERA CAUTION! Before using, please be sure to test the housing (without camera) in a bucket of freshwater. After use in salt water, rinse thoroughly in a bucket of fresh water without fail, pressing all buttons several times to flush out salt deposits and other contaminants. - Page 9 ※Two (2) Tripod Sockets are provided at the bottom of the housing for use in attaching Seatool/Recsea genuine tray and grip assemblies. CAUTION! Seatool/Recsea STRONGLY recommends the use of Seatool/Recsea genuine tray and grip assemblies listed below under OPTIONS. Leakage or damages due to the use of non-genuine options are NOT covered under warranty.
- Page 10 ※ O-RING GREASING & MAINTENANCE ( 1) CAUTION! DO NOT use silicone grease other than that provided by Seatool/Recsea. 1. Using the O-ring Removal Pick, remove O-ring. 2. Clean sand, salt, other contaminants and old grease from O-ring. 3. Clean O-ring groove and O-ring Contact Surface using a clean cotton swab.
-
Page 11: Insurance Information
(Fiber-Optic/SEA&SEA) and Screw, Wrist Strap, Lens Cover, Housing & Lens Port Reserve O-rings, O-ring Removal Pick, O-ring Grease OPTIONS The following items are optional. Please contact Seatool/Recsea or your local dealer if you wish to purchase. ・CWOM-SH2 O-ring Set ・Seatool O-ring Grease 3 ml Tube ・CWP-TZ70-30 M67 Adapter AD-M67-TZ70... -
Page 12: After-Sale Service
※ Warranty does not cover any losses resulting from any malfunction of this product, including those related to lost profits or any related expenses. ※ Seatool/Recsea will stock parts necessary for repair for five (5) years from stop of production. - Page 13 MEMO...
