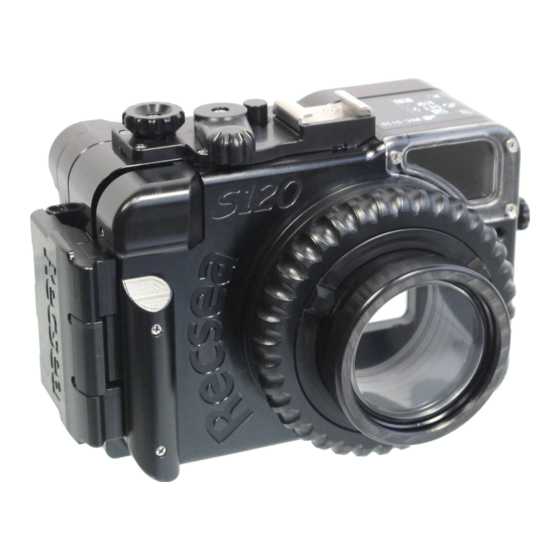

- Page 1 CANON POWERSHOT S120 Waterproof Housing Recsea WHC-S120 MANUAL Please read this manual before use. NTF CORPORATION UH Division http://www.seatool.net...
-
Page 2: Features Of This Product
INTRODUCTION CANON POWERSHOT S120 Waterproof Housing WHC-S120 ※ Thank you for purchasing the WHC-S120 Waterproof Housing. ※ To ensure proper and safe use, please thoroughly read this manual. ※ Improper use may cause leakage causing irreparable damage to your digital camera. - Page 3 PACKAGE CONTENTS Be sure all items listed here were included with your housing: ・Housing ・Diffuser ・M67 Adapter ・Strobe Mask-External Strobe ・Hand Strap Connection Mount and Screw ・Reserve O-ring ・O-ring Grease with O-ring Removal Pick GETTING TO KNOW YOUR HOUSING, NOMENCLATURE...
-
Page 4: Warranty Information
※Dealer: Stamp your company name and contact information, purchase date, model and serial number. Recsea/Seatool Manufacturing & Sales NTF CORPORATION UH Division 390-1 Mii, Midori-Ku, Sagamihara-Shi Kanagawa 252-0151, Japan T: +81 (0)50-7541-0294 F: +81 (0)42-780-5720 http://www.seatool.net E-mail: info@seatool.net... - Page 5 ATTENTION! ※The housing Mode Dial and rear Control Dial are designed to turn the camera's mode dial and control dial back and forth via friction from O-rings that comes in contact with these controls inside the housing. When installing or removing camera pull Mode Dial up. ※The housing Strobe Up Switch Dial is designed to manipulate the camera strobe switch via a small lever inside the housing.
-
Page 6: Installing Camera
To CLOSE, press Secure-Latch into place making sure the latch on the underside is properly placed in the Secure-Latch groove attached to the main housing body. Push into the locked position. Double check to make sure it is firmly locked into place. INSTALLING CAMERA CAUTION! Before using, please be sure the test the housing (without camera) in bucket or... -
Page 7: Maintenance
※Two (2) tripod screw holes are provided at the bottom of the housing for use in attaching Seatool/Recsea genuine tray and grip assemblies. CAUTION! Seatool or Recsea genuine options are STRONGLY recommended. Leakage or damages due to the use of other brands are NOT covered under warranty. - Page 8 2. Clean sand, salt, other contaminants and old grease from O-ring. 3. Clean O-ring Groove and O-ring Contact Surface using a clean cotton swab and/or cloth. 4. Visually and physically check O-ring by running it through finger tips, feeling for cuts, cracks or any other defects that may cause leakage.
- Page 9 HOW TO DISASSEMBLE, CLEAN AND LUBRICATE CONTROL RING DIAL ※The Control Ring Dial can be removed to lubricate the internal moving parts and to clean away sand, mud or other contaminants when dial does not turn smoothly. 1. Remove Port Protection Ring by unscrewing it from the Lens Port. 2.
-
Page 10: Specifications
8. Place Control Ring Dial and then Dial Locking Ring onto Lens Port. Gently turn Locking Ring to the right (clockwise) until drops and locks into place. Attach Port Protection Ring. OPTIONS The following items are optional. Please contact Seatool/Recsea or your local dealer if you wish to purchase. ・ST Mount Adapter AD-ST-S90 ・M52-DTP Mount Adapter DTP-04/52-S90... -
Page 11: Insurance Information
※ Warranty does not cover any losses resulting from inoperability of this product, including those related to lost profits or any related expenses. ※ Seatool/Recsea will stock parts necessary for repair for five (5) years from stop of production. ※This product uses some degradable parts, such as buttons and O-rings. Seatool/Recsea recommends overhauling the housing once per year, more frequently if used often. - Page 12 MEMO...
