- Page 1 PANASONIC LUMIX DMC-TZ70, DMC-TZ71, and DMC-DMC-ZS50 Waterproof Housing Recsea CWP-TZ70-30 CWP-TX70-MZ MANUAL Please read this manual before use. NTF CORPORATION UH Division http://www.seatool.net...
- Page 2 ※ Changeable Lens Port with Dual Lens Port O-ring system. ※ Port Control Ring Dial. ※ Rear Control Dial button function only. ※ New RECSEA dial locking system for easier opening and closing. ※ Quality silicone O-ring. ※ Complete camera function control.

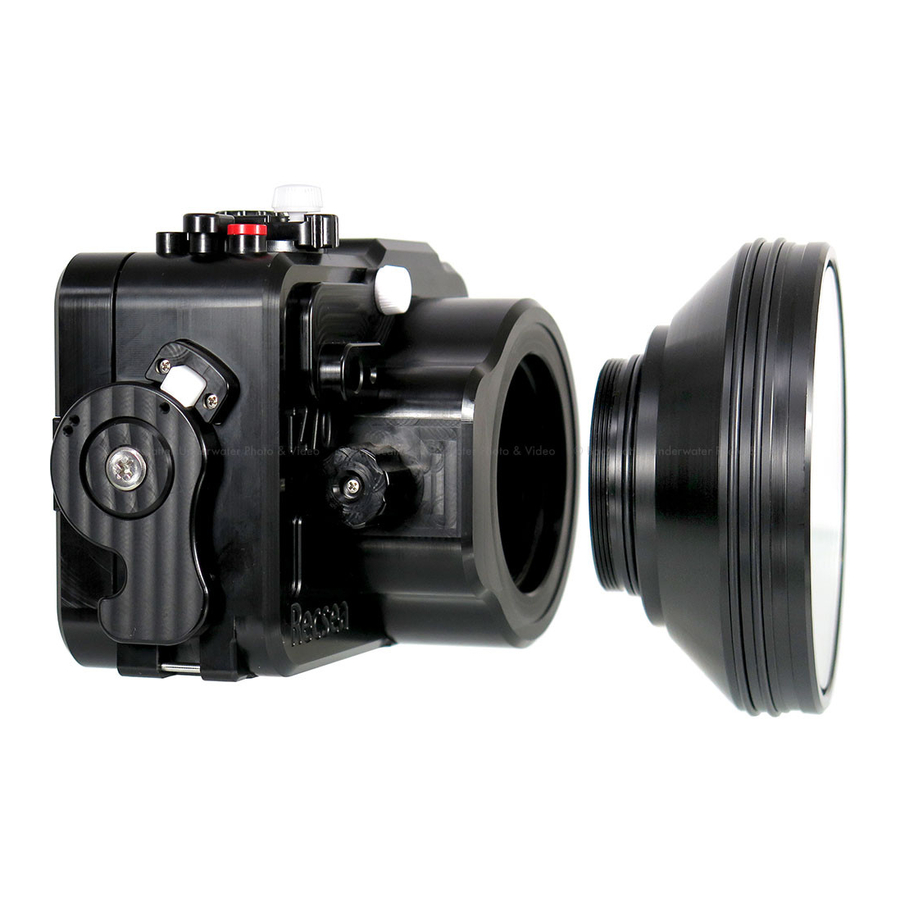

- Page 3 HOUSING PACKAGE CONTENTS Be sure all items listed here are included: ・CWP-TZ70 Waterproof Housing ・Strobe Mask-External Strobe Connection Lens Ports Packaged Separately Mount (Fiber-Optic/SEA&SEA) and Screw ・Wrist Strap ・Lens Anti-reflective Sticker ・Housing Reserve O-ring x 1 ・Lens Port Reserve O-ring x 2 ・O-ring Grease w/O-ring Removal Pick LENS PORT PACKAGE CONTENTS 30x Lens Port OP-30-TZ70:...
-
Page 4: Warranty Information
Dealer Name Serial Number ※Dealer: Stamp your company name and contact information, purchase date, model and serial number. Recsea/Seatool Manufacturing & Sales NTF CORPORATION UH Division 390-1 Mii, Midori-Ku, Sagamihara-Shi Kanagawa 252-0151, Japan T: +81 (0)50-7541-0294 F: +81 (0)42-780-5720... -
Page 5: Installing Lens Port
※ Please refer to camera manual for explanation of camera controls. Attach Diffusers as shown above using the grooves provided on the Lens Ports. INSTALLING LENS PORT ※ Perform proper Lens Port O-ring and Housing O-ring Contact Surface maintenance prior installation described MAINTENANCE... - Page 6 1. Attach 30x Lens Port by carefully screwing it clockwise into the Housing Port, while taking care NOT to strip the threads of the lens port or housing port. 2. When the first O-ring of the lens port engages the lens will become difficult to turn. Continue to turn until closed, taking care NOT to over tighten.
- Page 7 OPENING AND CLOSING THE BACK COVER ※ Please do the following operations in a clean area with low humidity and dust. Open & Close Dial Locks in two places, in the open position and in the closed position. 1. To open, while pressing the Open & Close Lock Button, turn the Open & Close Dial Lever to the right (clockwise).
-
Page 8: Setting Shutter Speed
※ NOTE: Firmly press Lock Button while turning dial. Failing to do so may cause damage to locking mechanisms. INSTALLING CAMERA CAUTION! Before using, please be sure to test the housing (without camera) in a bucket of freshwater. After use in salt water, rinse thoroughly in a bucket of fresh water without fail, pressing all buttons several times to flush out salt deposits and other contaminants. - Page 9 ※Two (2) Tripod Sockets are provided at the bottom of the housing for use in attaching Seatool/Recsea genuine tray and grip assemblies. CAUTION! Seatool/Recsea STRONGLY recommends the use of Seatool/Recsea genuine tray and grip assemblies listed below under OPTIONS. Leakage or damages due to the use of non-genuine options are NOT covered under warranty.
-
Page 10: Insurance Information
※ O-RING GREASING & MAINTENANCE ( 1) CAUTION! DO NOT use silicone grease other than that provided by Seatool/Recsea. 1. Using the O-ring Removal Pick, remove O-ring. 2. Clean sand, salt, other contaminants and old grease from O-ring. 3. Clean O-ring groove and O-ring Contact Surface using a clean cotton swab. -
Page 11: Consumable Parts
M67 Bayonet Adapter, Diffuser, Macro Zoom Lens Port Accessories Wrench OPTIONS The following items are optional. Please contact Seatool/Recsea or your local dealer if you wish to purchase. ・CWP-TZ70 O-rings ・Seatool O-ring Grease 3 ml Tube ・30x Lens Port OP-30-TZ70 ・CWP-TZ70-30 M67 Adapter AD-M67-TZ70... -
Page 12: After-Sale Service
