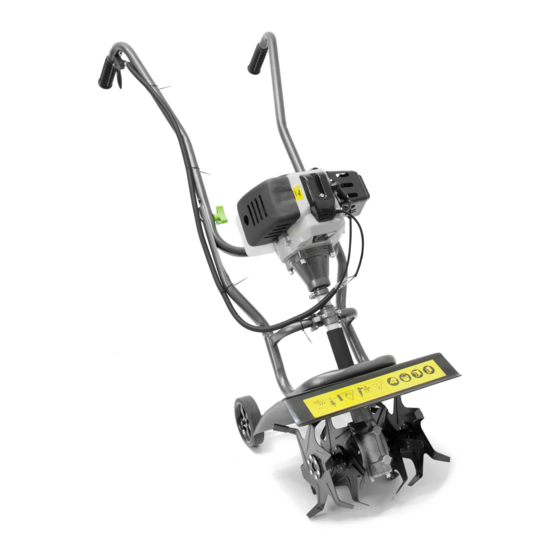

Petrol mini tiller
Hide thumbs Also See for THPMT:

Advertisement

OPERATOR'S MANUAL & PARTS LIST
PETROL MINI TILLER – THPMT
Spares & Support: 01793 333212
www.thehandy.co.uk
Before use, please read & understand this manual, paying
particular attention to the safety instructions.
193820001
30/03/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THPMT and is the answer not in the manual?

Questions and answers

Allen Cook
March 21, 2025

Where is the oil filler cap on the handy HTPMT petrol tiller and is there a dip stick inside ?

Subscribe to Our Youtube Channel

Summary of Contents for The Handy THPMT

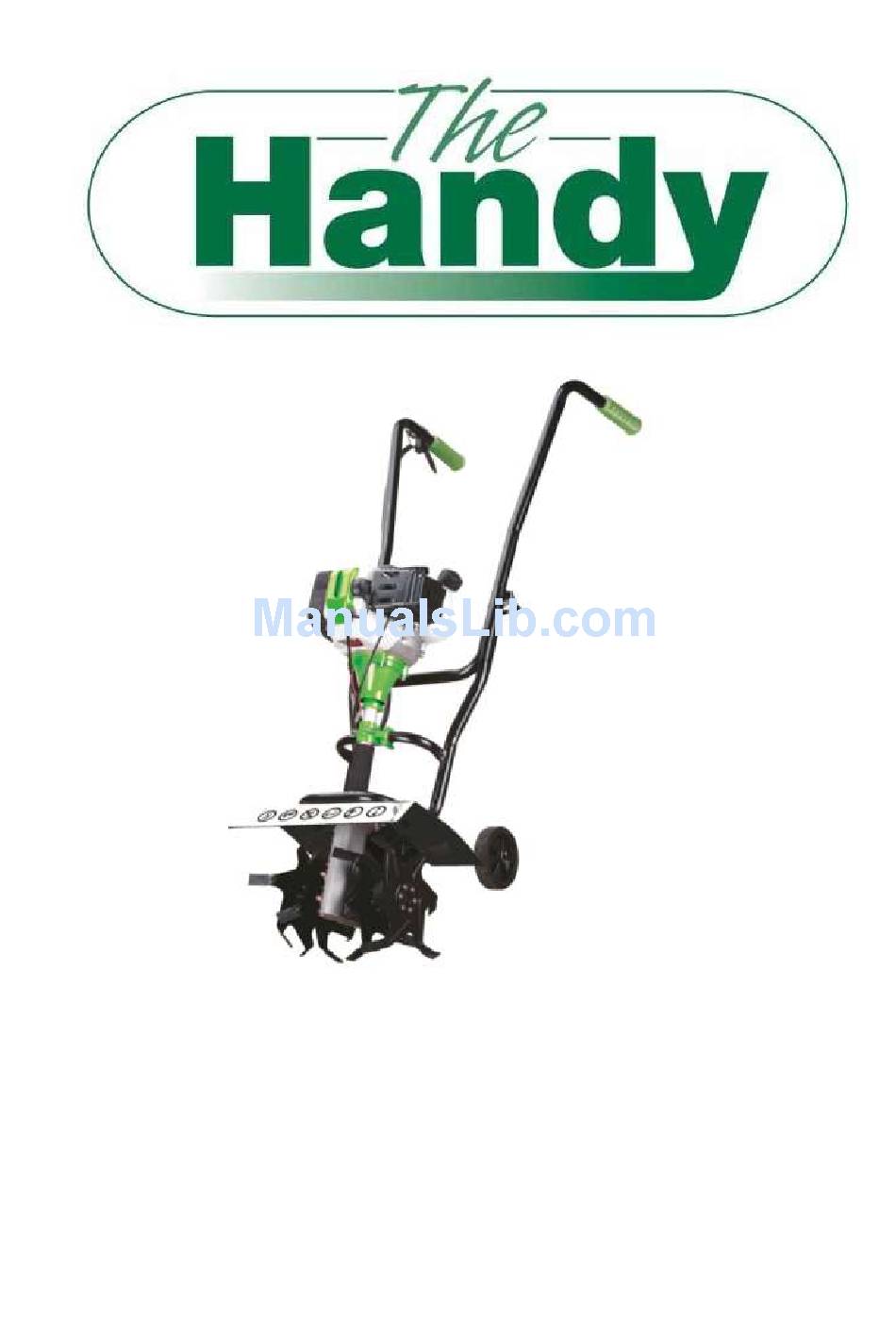

  • Page 1 OPERATOR’S MANUAL & PARTS LIST PETROL MINI TILLER – THPMT Spares & Support: 01793 333212 www.thehandy.co.uk Before use, please read & understand this manual, paying particular attention to the safety instructions. 193820001 30/03/2015...
  • Page 2: Table Of Contents

    CONTENT SAFETY INSTRUCTIONS FUEL SPECIFICATION ASSEMBLY OPERATION MAINTENANCE PARTS DIAGRAM AND LIST EC DECLARATION OF CONFORMITY WARRANTY POLICY 11-12...
  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS  Read and understand the owner’s manual and labels affixed to the tiller. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for reference.  Use sturdy footwear and protect exposed parts of your body. Wear heavy duty gloves, preferably made of leather.
  • Page 4: Fuel

    If the tiller is not going to be used for a long periods, drain the mixture from the fuel tank, start the engine and drain the carburetor of any remaining fuel.  Dispose of any unwanted 2-stroke mixture at an authorised recycling point. SPECIFICATION Model THPMT Engine 1.2kw Air cooled low maintenance Displacement 42.7cc...
  • Page 5: Assembly

    ASSEMBLY Before commencing assembly, unpack the contents of the box and check that nothing is damaged. Handlebars:  Loosen the two handle knobs on the inside of the handlebars.  With the unit upright, swing the handlebars up into the operating position, taking care not to pinch the throttle cable or switch wires.
  • Page 6: Operation

    OPERATION Move the tiller to the work area before starting the engine. Transport by pushing on the wheels, not the tines. Oil is supplied in the machines gearbox at the factory. After the first 25 hours of use, and then after every 50 hours of use, we recommend that the gearbox oil level is checked and topped up with SW15-40 oil.
  • Page 7: Maintenance

    MAINTENANCE Keeping your tiller in top running condition will prolong its life and help you obtain optimum performance whenever you wish to till your garden. Cleaning: Clean the tiller underneath the tine shield after each use. It is easier to clean off soon after use before it has had time to dry.
  • Page 8 MAINTENANCE Adjusting and Changing the Tines: Replace all four tines at the same time because they will wear evenly during normal use. Work on one side at a time.  Put the On/Off switch in the STOP position and disconnect the spark plug lead. ...
  • Page 9: Parts Diagram And List

    PARTS DIAGRAM- MACHINE Part No Description Qty No Part No Description TH127-1 Engine TH127-19 Sponge Cover TH127-2 Handle TH127-20 Outer Blade TH127-3 Handle Set TH127-21 Inner Blade TH127-4 Switch TH127-22 Wheel TH127-5 Throttle Trigger TH127-23 Gearbox Assy TH127-6 Throttle Cable TH127-30 Wheel Axle TH127-7...
  • Page 10 PARTS DIAGRAM- ENGINE No Part No Description Qty No Part No Description TH127-1E Bolt M5x16 TH127-36E Bolt M5x20 TH127-2E Air Filter Cover 39 TH127-39E Engine Cowl TH127-3E Filter Cover 39a TH127-39EA Bolt M5x12 TH127-4E Fiter TH127-43E Spark Plug TH127-5E Bolt M5x55 TH127-45E Muffler Gasket TH127-6E...
  • Page 11: Ec Declaration Of Conformity

    We, Importer Handy Distribution SN3 5HY Declare that the product Designation: Mini Petrol Tiller Model: THPMT Complies with the following directives: 2006/42/EC - Machinery Directive 2004/108/EC - Electromagnetic Compatibility Directive 2010/26/EU – Emission of Pollutants 2000/14/EC amended by 2005/88/EC - Noise Emission in the Environment by Equipment for Use Outdoors Directive.
  • Page 12: Warranty Policy

    GJ HANDY & CO LTD USER WARRANTY POLICY 1. Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
  • Page 13: Warranty Policy

    GJ HANDY & CO LTD USER WARRANTY POLICY 3. Not covered by this warranty The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident. The warranty policy does not cover any costs necessary for the standard periodic maintenance services instructed by the operators manual, or service parts replacement which would include oil, filters, tyres, belts, brake linings, fuses, blades,...
  • Page 15 NOTES _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________...
  • Page 16 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Spares & Support: 01793 333212...
