INSTRUCTION MANUAL
1400W

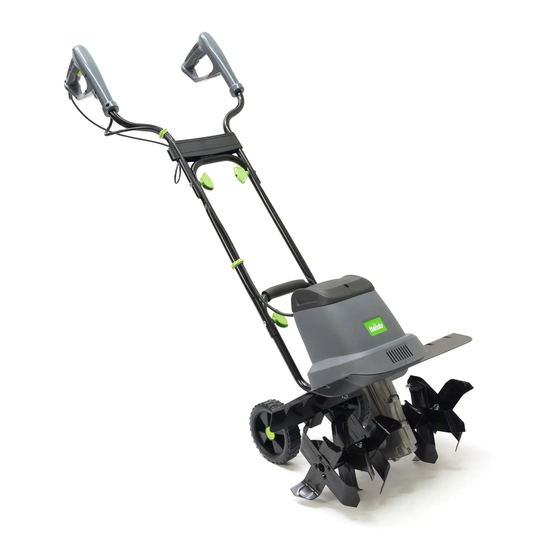

ELECTRIC TILLER
Model No: THET1400 -- Product No: 193855002
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
Please read & understand this manual, paying attention to the safety instructions,
before use.
The manufacturer reserves the right to change the product specification and livery
according to continued product improvements.
All images used are for illustration purposes only.
22-11-2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THET1400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for The Handy THET1400

  • Page 1 INSTRUCTION MANUAL 1400W ELECTRIC TILLER Model No: THET1400 -- Product No: 193855002 ASSEMBLY REQUIRED SAVE THESE INSTRUCTIONS SPARES & SUPPORT: 01793 333212 Please read & understand this manual, paying attention to the safety instructions, before use. The manufacturer reserves the right to change the product specification and livery according to continued product improvements.
  • Page 3: Specifications

    Email: customerservice@handydistribution.co.uk Monday to Friday 8.00am to 5.30pm (excl. Bank Holidays) SPECIFICATIONS The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model THET1400 Product Number 193855002 Motor Power 1400 watt Motor Voltage 230V/50HZ...
  • Page 4 IMPORTANT INFORMATION WARNING Read this instruction manual carefully before operating this machine. Make sure that you are familiar with the controls and properly operate the machine. Following these instructions can reduce the risk of fire, electric shock and personal injury. IF NOT USED PROPERLY THIS MACHINE CAN BE DANGEROUS! This machine can cause serious injury to the operator and others, the warning and safety instructions must be followed to ensure reasonable safety and efficiency in using this product.
  • Page 5: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product.
  • Page 6 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Be aware of what you are doing at all times. Use common sense. AVOID DANGEROUS CONDITIONS Make sure there is adequate surrounding workspace.
  • Page 7: Electrical Connection

    PROTECT THE ENVIRONMENT Take left over materials to an authorised collection point or follow the stipulations in the country where the machine is used. Do not discharge into drains, soil or water. STORE IDLE EQUIPMENT When not in use, the machine should be stored in a dry location. Keep the machine away from children and others not qualified to use it.
  • Page 8: Setup And Operation

    SET UP & OPERATION Remove the Tiller and contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents of the Tiller, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk Monday to Friday 8.30am –...
  • Page 9 CONNECTING THE HANDLES • Attach the Middle Handle (2) onto the Lower Guide Handle (4) and secure it using two M6x45 screws and swing nuts supplied. (Image 2) • Connect the Top Handle (1) to the Middle Handle (2) and secure it by two supplied screws and swing nuts.
  • Page 10 TIPS DURING OPERATION Use the tiller for breaking sod, preparing seedbeds, and for cultivating gardens and flower beds. The tiller may also be used to dig small holes for planting saplings or potted plants. • Move the appliance to the work area prior to starting the motor. •...
  • Page 11: Maintenance And Storage

    MAINTENANCE & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. MAINTENANCE • Before each use, check all nuts & bolts to be sure they are sufficiently tightened. •...
  • Page 12 WORN TINES CAUTION Disconnect the mains and wear protective gloves when you attempt any kind of maintenance to the tines. • Worn tines lead to poor performance and may overload the motor. • Check the tines’ condition before each use. Sharpen or replace the tines with new one when necessary.
  • Page 13: Troubleshooting

    TROUBLE SHOOTING PROBLEM POSSIBLE CAUSES RESOLUTION Motor cannot 1. No power 1. Check mains supply be started 2. Cable damaged 2. Check cable, replace or have repair by 3. Overheat protection activated approved electrician 3. Let the motor cool down for over 15 minutes, before your resume work.
  • Page 14 PARTS DIAGRAM – THET1400 (193855002)
  • Page 15 PARTS LIST – THET1400 (193855002) Item Item Part No. Description Part No. Description TH217-182257003300 Shield TH217-202811305010 Cotter pin TH217-120421164050 Screw ST4x50 TH217-202811266070 Wheel Axle TH217-132257263000 Coil TH217-202811302070 Spur TH217- Motor TH217-202811305010 Split Pin 0022572600000 TH217-120441120525 Screw M5x25 TH217-120411120410 Screw M4x10...
  • Page 18: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: 1400w Electric Tiller Model(s): THET1400 Product No. 193855002 Motor Power: 1400 watt Motor Voltage: 230V/50HZ Idle Speed: 330min-1 Type/Serial No. As per rating label on machine...
  • Page 20 For spares or support of your handy product, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk (Monday to Friday 8.00am to 5.30pm excl. Bank Holidays) To see our range of garden machinery & equipment visit: www.thehandy.co.uk Making gardening easier & affordable since 1938 Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY...
