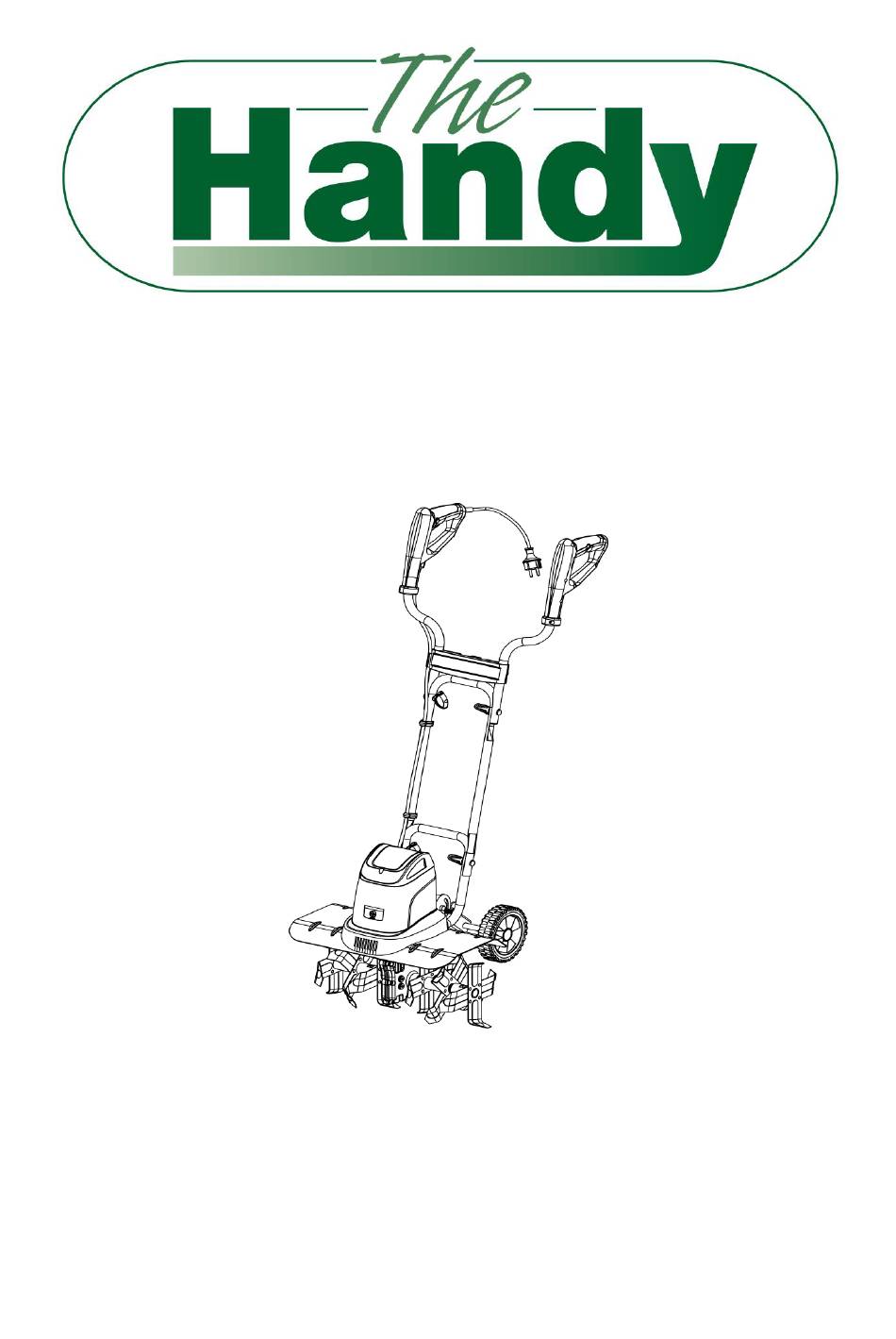

OPERATOR'S MANUAL & PARTS LIST
MODEL – THET1400
1400W ELECTRIC TILLER
Spares & Support: 01793 333212
Please read & understand this manual, paying particular attention to the safety
instructions, before use.
The manufacturer reserves the right to change the product specification and
livery according to continued product improvements.
193855001
19/10/2015
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for The Handy THET1400
Summary of Contents for The Handy THET1400
- Page 1 OPERATOR’S MANUAL & PARTS LIST MODEL – THET1400 1400W ELECTRIC TILLER Spares & Support: 01793 333212 Please read & understand this manual, paying particular attention to the safety instructions, before use. The manufacturer reserves the right to change the product specification and livery according to continued product improvements.
-
Page 3: Table Of Contents
CONTENTS SPECIFICATIONS GENERAL SAFETY INSTRUCTIONS ELECTRICAL CONNECTION MAINTENANCE & STORAGE ASSEMBLY OPERATION PARTS DIAGRAM & LIST GUARANTEE DECLARATION OF CONFORMITY... -
Page 4: Specifications
SPECIFICATIONS Model THET1400 Product Number 193855001 Motor Power 1400 watt Motor Voltage 230V/50HZ Idle Speed 330min Working Width 430mm Working Depth 200mm Cable Length Max.Vibration 1.359m/s², k=1.5m/s² Noise Level LWA 93 dB(A) The manufacturer reserves the right to change the product specification and livery according to continued product improvements. -
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. - Page 6 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Be aware of what you are doing at all times.
-
Page 7: Electrical Connection
DO NOT FORCE TOOL Always work within the rated capacity. Do not use the machine for a purpose for which it was not intended. NEVER LEAVE MACHINE RUNNING UNATTENDED Do not leave the machine unattended until it has come to a complete stop. MAINTAIN YOUR MACHINE WITH CARE Clean the machine immediately after use. -
Page 8: Maintenance & Storage
MAINTENANCE & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. MAINTENANCE Before each use, check all nuts & bolts to be sure they are sufficiently tightened. ... - Page 9 STORAGE For years of trouble free service, make sure the Tiller is clean and dry before storing. Wipe all metal surfaces with an oil-impregnated cloth to protect them from corrosion (non- resinous oil), or spray a fine coat of oil. ...
-
Page 10: Assembly
ASSEMBLY Remove the Tiller and contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents of the Tiller, please contact us: Tel: 01793 333212 - Mon – Fri 8.30am – 5.30pm (excl. Bank Holidays) Email: customerservice@handydistribution.co.uk Description Top Handle... - Page 11 CONNECTING THE HANDLES Attach the Middle Handle (2) onto the Lower Guide Handle (4) and secure it using two M6x45 screws and swing nuts supplied. (Image 2) Connect the Top Handle (1) to the Middle Handle (2) and secure it by two supplied screws and swing nuts.
-
Page 12: Operation
OPERATION Before operating the machine, please ensure you are fully aware of the below instructions, failure to do so, could invalidate your manufacturer’s warranty. Completely unwind the electrical cable. ADJUSTING THE SPUR The position of the spur defines the working depth. (Image 4) ... - Page 13 GENERAL USE Always operate the machine on a level surface, ensuring the machine to stable and fee from obstructions If using an extension cable, ensure it is suitable for outdoor usage, 14AWG or above and no more than 10 metres in length. TROUBLESHOOTING PROBLEM POSSIBLE CAUSES...
-
Page 14: Parts Diagram & List
PARTS DIAGRAM & LIST... - Page 17 GJ HANDY & CO LTD USER WARRANTY POLICY 1. Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
- Page 18 GJ HANDY & CO LTD USER WARRANTY POLICY 3. Not covered by this warranty The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
-
Page 19: Ec Declaration Of Conformity
EC Declaration of Conformity We, Importer Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY Declare that the product Model: THET1400 1400W ELECTRIC TILLER Complies with the following directives: Machinery Directive 2006/42/EC Electro Magnetic Directive 2004/108/EC Relevant Standard(s), Specification(s) referred to:... - Page 21 For Spares or Support of your Handy product, please contact us: Tel: 01793 333212 (Mon – Fri 8.30am to 5.00pm) Email: customerservice@handydistribution.co.uk To see our complete range of garden machinery and equipment visit: www.thehandy.co.uk Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY...
