The Handy THPMT Operator's Manual And Parts List
Petrol mini tiller
Hide thumbs
Also See for THPMT:
- Operator's manual (16 pages) ,
- Instruction manual (20 pages) ,
- Instruction manual (24 pages)
Related Manuals for The Handy THPMT
Summary of Contents for The Handy THPMT
- Page 1 OPERATOR’S MANUAL AND PARTS LIST PETROL MINI TILLER - THPMT Sales & Helpline 01793 333220 www.thehandy.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 2010 v1 Page 1...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS MAJOR PARTS FUEL SPECIFICATION ASSEMBLY OPERATION MAINTENANCE PARTS DIAGRAM AND LIST 10-11 EC DECLARATION OF CONFORMITY Page 2... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the tiller. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for reference. • Use sturdy footwear and protect exposed parts of your body. Wear heavy duty gloves, preferably made of leather. -
Page 4: Major Parts

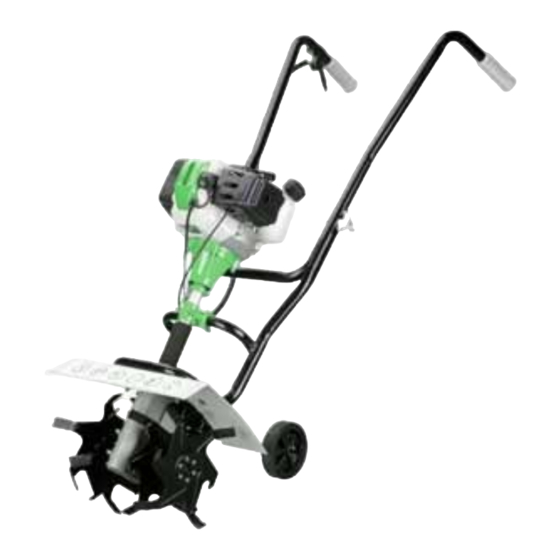

MAJOR PARTS Hand Grip Throttle Control Throttle Cable and Switch Wire Handlebar Knob Wheel Tines Geearbox Tine Guard Shaft Tube Grip Starter Rope Grip Handlebar On/Off Control Spark Plug Socket Wrench Open Wrench Hexagon Wrench 4mm Hexagon Wrench 5mm Page 4... -
Page 5: Fuel
• Dispose of any unwanted 2-stroke mixture at an authorised recycling point. SPECIFICATION Model THPMT Engine 1.2kw Air cooled low maintenance Displacement 42.7cc/1.6hp Fuel Tank Capacity 1200ml... -
Page 6: Assembly
ASSEMBLY Before commencing assembly unpack the contents of the box and check carefully that nothing is damaged. Handlebars: • Loosen the two knobs on the inside of the handlebars (Fig 1). • With the unit upright, swing the handlebars up into the operating position, taking care not to pinch the throttle cable or switch wires. -
Page 7: Operation
OPERATION Move the tiller to the work area before starting the engine. Transport by pushing on the wheels, not the tines. Starting the Engine: • Lay the tiller on the ground in a horizontal position. • Move the On/Off Switch on the right handlebar to ON. •... -
Page 8: Maintenance
MAINTENANCE Keeping your tiller in top running condition will prolong its life and help you obtain optimum performance whenever you wish to till your garden. Clean the tiller underneath the tine shield after each use. It is easier to clean off immediately after use before it has had time to dry. - Page 9 MAINTENANCE Adjusting and Changing the Tines: Replace all four tines at the same time because they will wear evenly during normal use. Work on one side at time. • Put the On/Off switch in the STOP position and disconnect the spark plug lead. •...
-
Page 10: Parts Diagram And List
PARTS DIAGRAM- MACHINE No Part No Description Qty No Part No Description TH127-1 Engine TH127-19 Sponge Cover TH127-2 Handle TH127-20 Outer Blade TH127-3 Handle Set TH127-21 Inner Blade TH127-4 Switch TH127-22 Wheel TH127-5 Throttle Trigger TH127-23 Gearbox Assy TH127-6 Throttle Cable TH127-30 Wheel Axle TH127-7 Switch Wire... - Page 11 PARTS DIAGRAM- ENGINE No Part No Description Qty No Part No Description TH127-1E Bolt M5x16 TH127-36E Bolt M5x20 TH127-2E Ait Filter Cover TH127-39E Engine Cowl TH127-3E Filter Cover 39a TH127-39EA Bolt M5x12 TH127-4E Fiter TH127-43E Spark Plug TH127-5E Bolt M5x55 TH127-45E Muffler Gasket TH127-6E...
-
Page 12: Ec Declaration Of Conformity
Pursuant to the regulations of the following EC Directives: - Electromagnetic Compatibility Directive 2004/108/EC - Machinery Directive 2006/42/EC Handy Distribution Ltd hereby declares that the product: Machine Type: Petrol Mini Tiller Machine Model: THPMT Engine Displacement: 42.7cm Mass in Kg: 15kg Cutting Width: 300mm Max Engine Speed: 8000/min Engine Power: 1.2kW... - Page 13 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Page 13...
