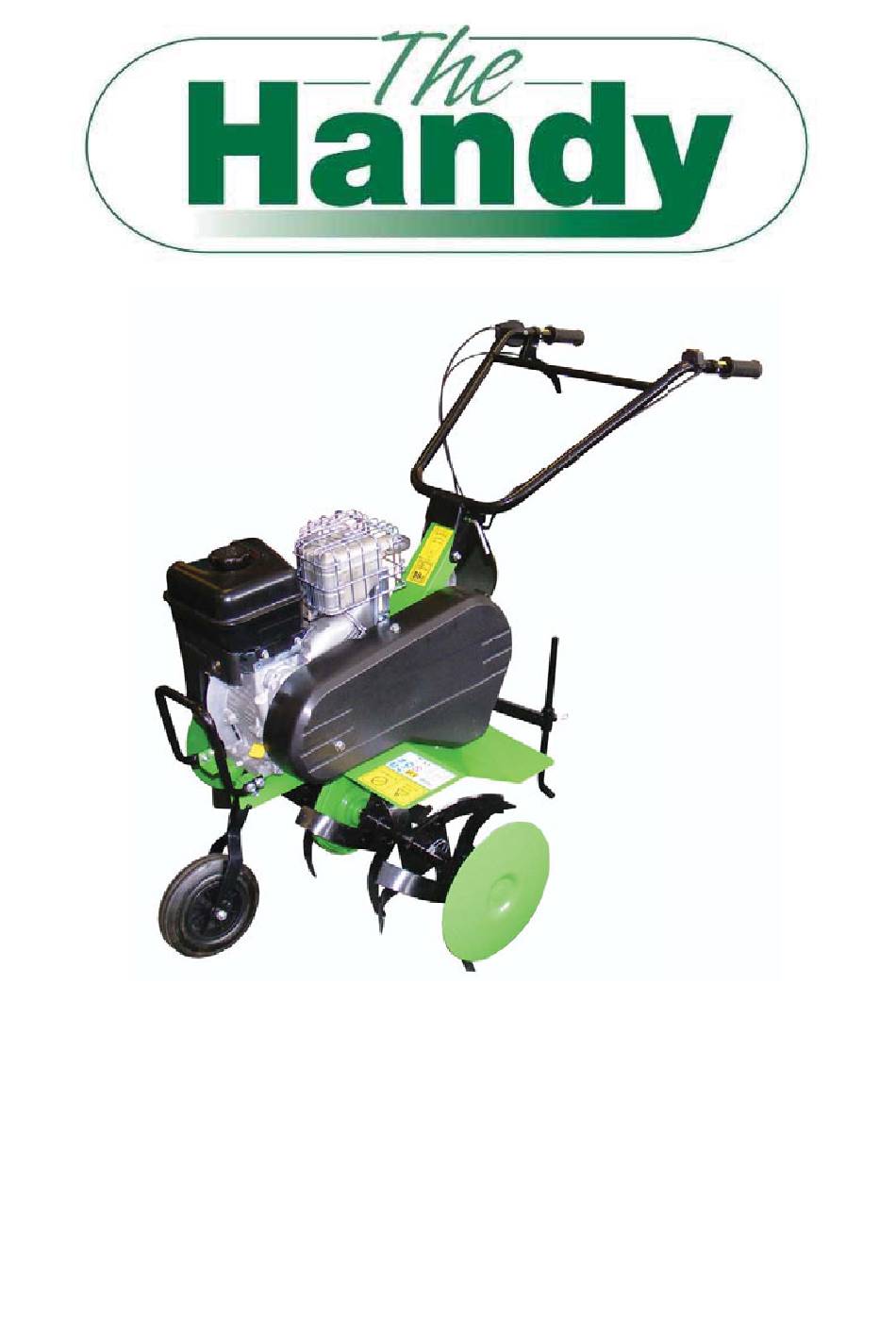

- Page 1 OPERATOR’S MANUAL AND PARTS LIST PETROL TILLER - THTILL6.5-A Spares & Support: 01793 333212 www.thehandy.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 20/05/2013...
- Page 2 CONTENTS SAFETY INSTRUCTIONS MAJOR PARTS SPECIFICATIONS ASSEMBLY OPERATING THE TILLER MAINTENANCE PARTS DIAGRAM AND LIST EC DECLARATION OF CONFORMITY Page 2...
- Page 3 SAFETY INSTRUCTIONS x 5HDG DQG XQGHUVWDQG WKH RZQHU¶V PDQXDO DQG ODEHOV DI¿[HG WR WKH SHWURO WLOOHU /HDUQ LWV DSSOLFDWLRQ DQG OLPLWDWLRQV DV ZHOO DV WKH VSHFL¿F potential hazards. Retain these instructions for future reference. x Check your tiller before use. Keep guards in place and in working order. You should only work with a machine that is in good condition.
- Page 4 12 Tine Wheel 13 Front Wheel Oil Filler Cap 16 Switch 17 Chain Box Tine 19 5HFRLO 6WDUWHU SPECIFICATION Model No THTILL6.5-A Working Width 60, 70 or 75cm 7LQH 5HYROXWLRQ 156 revs /min Tine Diameter 31cm Clutch Tension Belt Set Speed ratio 22.6:1...
- Page 5 ASSEMBLY To assemble the handlebar: The handle height can be adjusted to suit the height of the operator by varying the angle where WKH KDQGOH DGMXVWHU ¿WV RQ WR WKH chassis ‡ 5HPRYH WKH EROW DQG DGMXVWHU DQG DWWDFK WKH KDQGOH KHLJKW DGMXVWHU Rnto WKH chassis ‡...
- Page 6 ASSEMBLY, cont’d To assemble the front wheel: The front wheel is used to help transport the tiller. Fix the front wheel in the down position using a lockpin. When cultivating move the wheel to the up position. Spring Groove Lockpin Front Wheel Bracket To assemble the dragbar: The dragbar can be adjusted to differing tilling depths.
- Page 7 OPERATING THE TILLER The tiller is supplied without fuel or oil. ‡ Fill the engine to the correct level with good quality SAE 30 engine oil. ‡ )LOO WKH IXHO WDQN ZLWK XQOHDGHG SHWURO EHLQJ FDUHIXO QRW WR RYHU¿OO DQG ZLSLQJ XS DQ\ VSLOW fuel with a cloth.
- Page 8 PARTS DIAGRAM Page 8...
- Page 9 PARTS LIST No. Part No. Description QTY No. Part No. Description TH104-1 Front Wheel 18 TH167-18 Big Belt Pulley TH104-2 Nut M8 19 TH104-19 Belt Pulley Cover TH104-3 Bolt 20 TH167-20 Thermal Cover TH104-4 Spring 21 TH104-21 Insulation Board TH104-5 Front Wheel Bracket 22 TH104-22 Bolt M10 TH104-6...
- Page 11 GUARANTEE This product is guaranteed against manufacturing defects for a period of 12 months. This does not cover the product where the fault is due to misuse, abuse, use in contravention of the instructions, or where the product has been the subject of unauthorised modifications or alterations.
- Page 12 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Spares & Support: 01793 333212...
