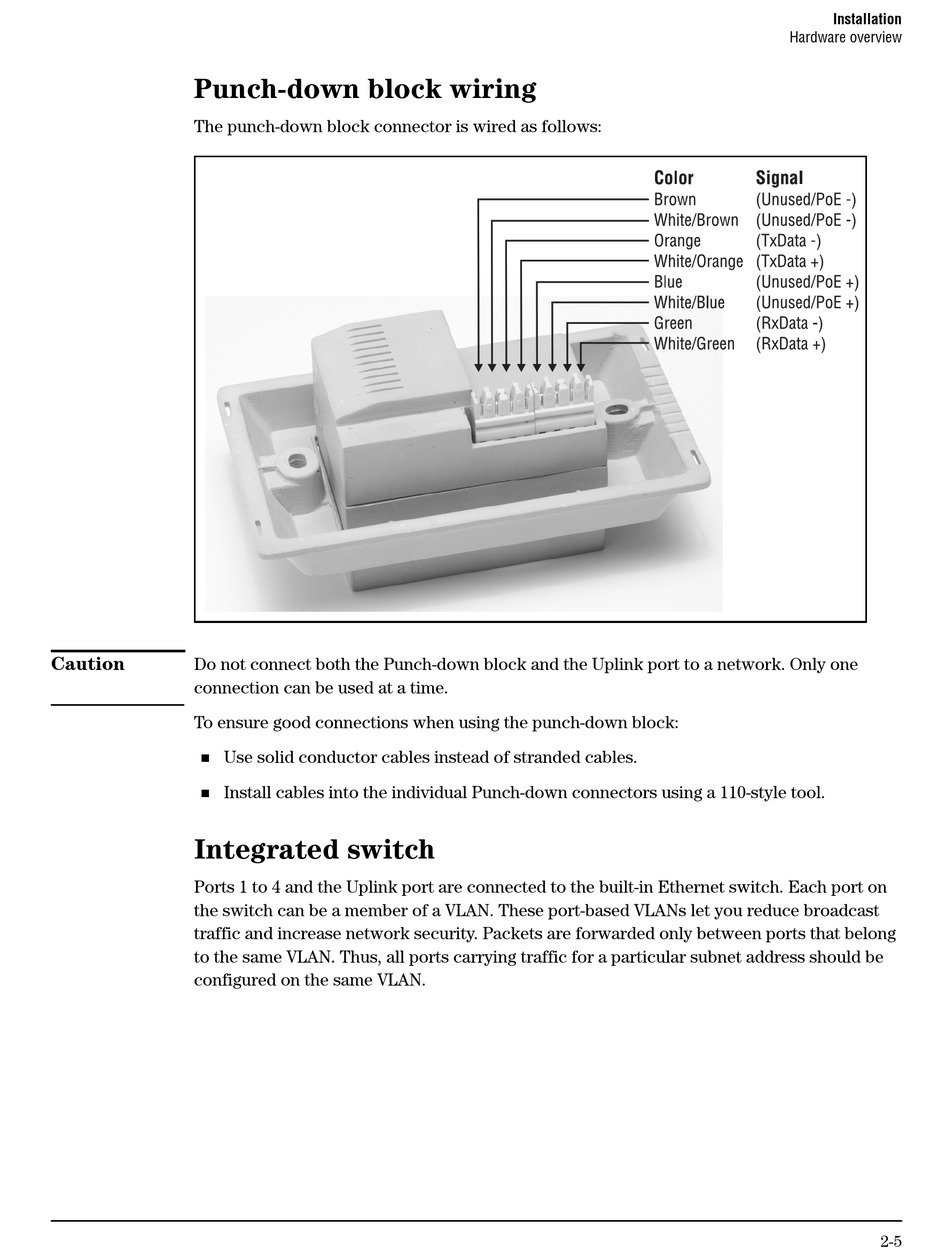

Punch-down block wiring

The punch-down block connector is wired as follows:
Caution
Do not connect both the Punch-down block and the Uplink port to a network. Only one
connection can be used at a time.
To ensure good connections when using the punch-down block:
 Use solid conductor cables instead of stranded cables.
 Install cables into the individual Punch-down connectors using a 110-style tool.

Integrated switch

Ports 1 to 4 and the Uplink port are connected to the built-in Ethernet switch. Each port on
the switch can be a member of a VLAN. These port-based VLANs let you reduce broadcast
traffic and increase network security. Packets are forwarded only between ports that belong
to the same VLAN. Thus, all ports carrying traffic for a particular subnet address should be
configured on the same VLAN.
Installation
Hardware overview
2-5
