The MSM310 is a Wi-Fi Alliance authorized Wi-Fi CERTIFIED 802.11a/b/g product. The
Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. The MSM310 is
certified under the SpectraLink Voice Interoperability for Enterprise Wireless (VIEW)
Certification Program when it operates in autonomous mode or in controlled mode in
VIEW
conjunction with an MSM7xx Controller.
Certified
This Quickstart shows you how to get started using the MSM310 Access Point (US J9374A/B, WW J9379A/B).
After reading this Quickstart, you can visit www.hp.com/go/procurve/manuals and download documents of particular interest such as the MSM3xx / MSM4xx
Access Points Management and Configuration Guide and the MSM7xx Controllers Management and Configuration Guide.

Hardware overview

Package contents
MSM310, documentation, two 2.4-GHz (2-dBi) / 5-GHz (2-dBi) dual-mode omnidirectional
antennas.
Reset button
Press and quickly release the button to reset the MSM310. To reset to factory default
settings, press and hold the reset button until the status lights flash three times, then
release. For details, see Resetting to factory defaults in the MSM3xx / MSM4xx Access
Points Management and Configuration Guide.
To reconnect to the management tool after a factory reset, your computer must be
Note:
connected to Ethernet Port 1.
MSM310 Access Point Quickstart
In

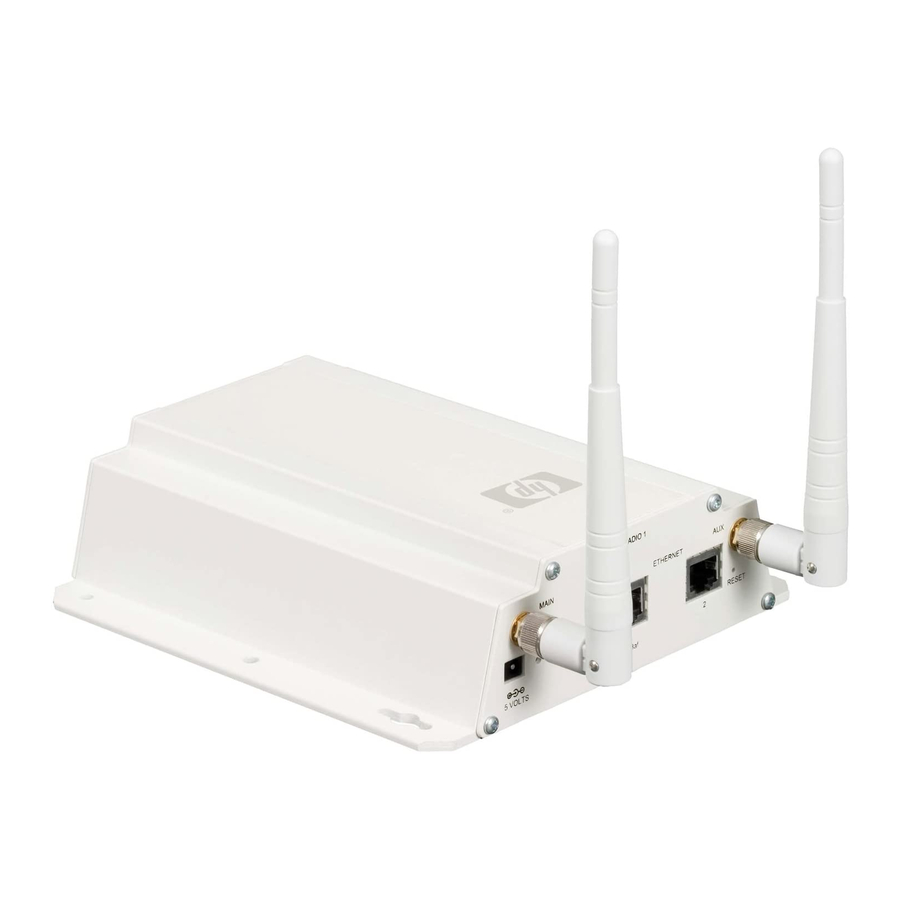

Radio and antennas
The MSM310 has a single radio with two antennas for diversity.
The antenna connectors are reverse-polarity SMA jacks. Antennas or cable connectors must
use RP-SMA plugs. Antennas can be mounted directly on the MSM310. When a single antenna
is used, it is recommended to connect it to the Main antenna connector.
Optional external antennas are available from HP ProCurve. On the HP ProCurve Website, see
the Accessories section for the MSM310.
Ethernet ports
The MSM310 has two 10/100 Mbps Ethernet ports with RJ-45 connectors. Port 1 supports
Power over Ethernet (PoE) 802.3af. In controlled mode, Port 1 should be used. In
autonomous mode, Port 1 or Port 2 can be used.
