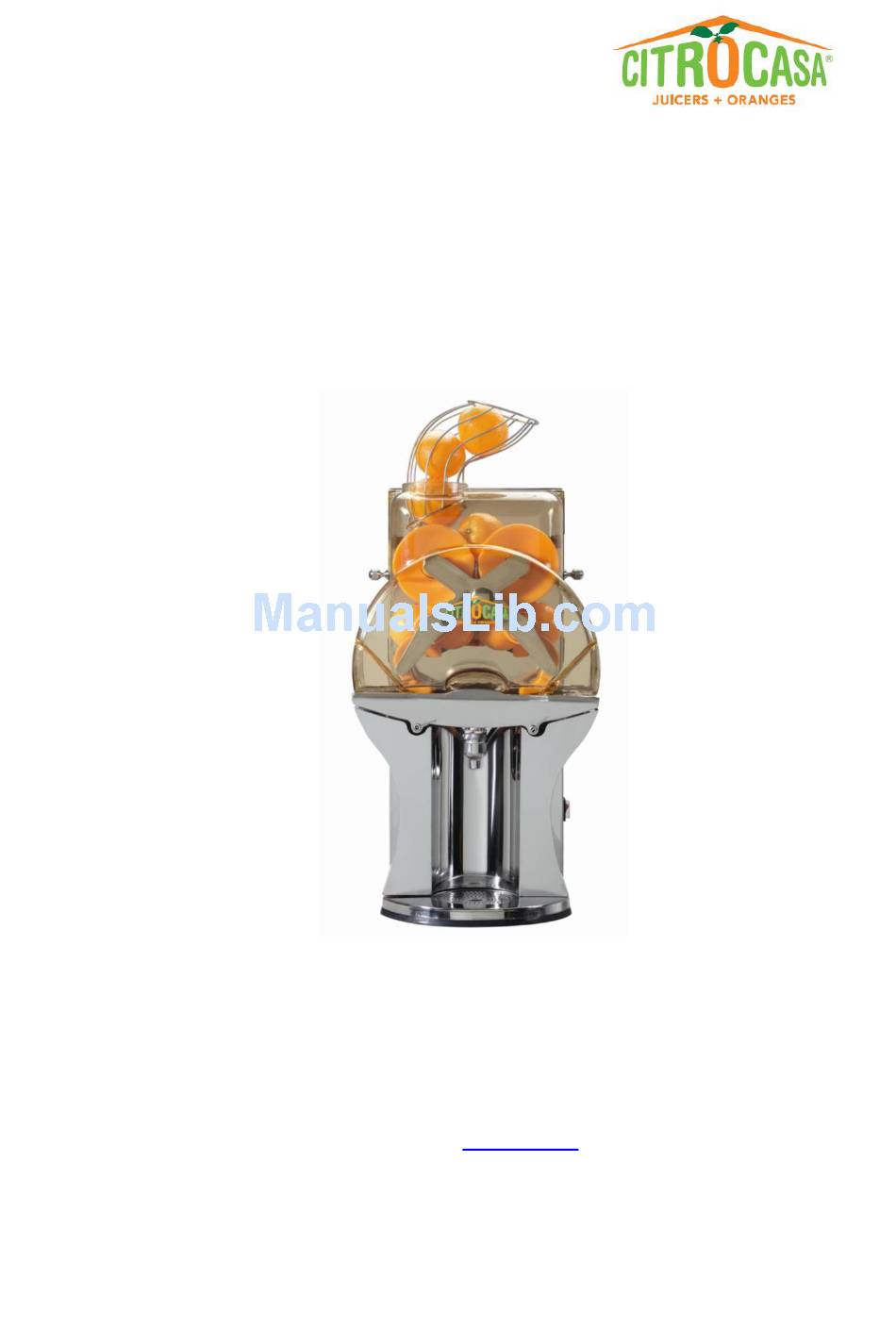

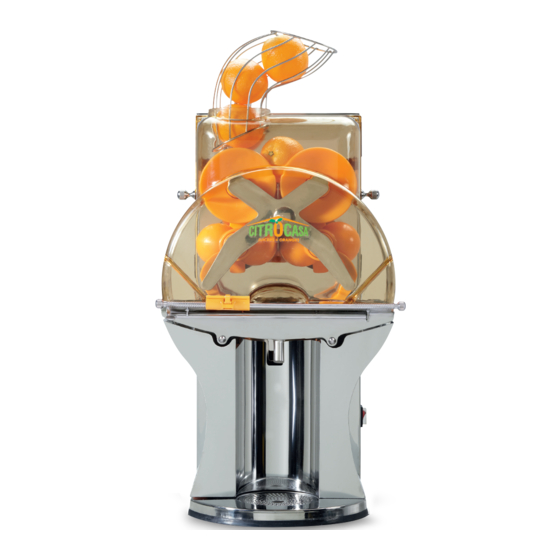

  • Page 1 Instruction Manual/Documentation Version: 08.04.11 Citrocasa Fantastic M/AS Art.No.: 60.000 Version 01 Citrocasa Fantastic M/SB Art.No.: 60.500 Version 01 When ordering spare parts, be sure to mention machine type, article and serial number. Freistaedter Strasse 315, P.O.Box 79, A-4046 Linz, Austria Tel.: +43-732-75 01 73-0...

  • Page 2: Table Of Contents

    CONTENTS 1. IMPORTANT GENERAL INFORMATION 2. TECHNICAL SPECIFICATIONS 3. GUARANTEE 4. OPERATING INSTRUCTIONS 4.1. First steps 4.2. Choice of display language 4.3. Operating the machine 4.4. Cleaning 4.5. Important information 5. TROUBLESHOOTING 6 CERTIFICATES 7. MOST IMPORTANT SPARE PARTS...

  • Page 3: Important General Information

    Fantastic M/SB Self Service Version 01 The technical data of the Citrocasa Orange juicer (tension, frequency and other data) is located on the identification plate, which is both on the back page of this operating/instruction manual as well as on the equipment itself.
  • Page 4 Should you have any suggestions to improvement, questions or comments, please feel free to contact us with the contact information provided below: Freistaedter Strasse 315, P.O.Box 79, A-4046 Linz, AUSTRIA Tel.: +43-732-75 01 73-0 Fax: +43-732-75 01 73-24 E-mail: office@tmp.at This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for...

  • Page 5: Technical Specifications

    2. TECHNICAL SPECIFICATIONS: MODEL Fantastic M/SB Fantastic M/AS Oranges per minute 30 pieces Measurements 78x38x55,5 Net weight (in kg) Power supply 230V/50-60Hz Power 0,20 kW Fuse Protection IPx1 Optimum fruit size 65 to 78 mm 3. GURANTEE - Our quality and examination controls ensure that the machine was supplied in perfect condition.

  • Page 6: Operating Instructions

    4. OPERATING INSTRUCTIONS 4.1. FIRST STEPS In order to achieve an optimum operation of the machine, please follow the below-mentioned steps carefully. After unpacking and positioning the machine on a level surface, remove the front cover by unscrewing the 2 fastening screws shown in Fig. 1. Lift the front cover out of its anchoring to expose the pressing system.
  • Page 7 Place the peel basket and the drip cup as shown in Figs. 3 and 4. Peel basket Drip cup Fig. 3 Fig. 4 Make sure that the fruit sieve is in its proper position and that the front cover is closed (see Figs. 5 and 6).

  • Page 8: Choice Of Display Language

    4.2. CHOICE OF THE DISPLAY LANGUAGE It is possible to choose between 4 different display languages: English German Spanish French Please follow the points below, to choose your required display language. Fig. 8: Switch on the main power switch located at the side of the machine. The control lamp lights up.

  • Page 9: Operating The Machine

    4.3. OPERATING THE MACHINE Fill the supply tunnel with oranges. Do not use fruits larger than 80mm in size. To make sure that the machine works properly, use fruits between 65 – 78 mm in diameter. (Figs. 10 and 11) Fig.
  • Page 10 Operation of Citrocasa Fantastic M/SB Self Service Place a glass or another container under the juice outlet. To begin the pressing procedure, follow the instructions mentioned below: Self-Service Mode: Fig. 12: Switch on the main power switch located at the side of the machine. The red control lamp lights up.
  • Page 11 Continuous Mode: Fig. 15: Switch on the main power switch located at the side of the machine. The red control lamp lights up. Fig. 16 No. 1 FUNC button: Select the continuous mode by pressing this button. „Continuous Push “ON”“ is indicated on the display. Fig.
  • Page 12 Operation of Citrocasa Fantastic M/AS Auto Start Place a glass or another container under the juice outlet. To begin the pressing procedure, follow the instructions mentioned below: Auto-Start Mode Fig. 17: Switch on the main power switch located at the side of the machine. The red control lamp lights up.
  • Page 13 Continuous Mode: Fig. 20: Switch on the main power switch located at the side of the machine. The red control lamp lights up. Fig. 21 No. 1 FUNC button: Select the continuous mode by pressing this button. „Continuous Push “ON”“ is indicated on the display. Fig.
  • Page 14 Display Functions of Fantastic Machines Fig. 22 No. 1 FUNC button: Press this function button to indicate the total number of pressed fruits. Bild 13 Fig. 22 Fig. 23 No. 1 FUNC button: Press this function button to indicate the total operating hours of the machine.

  • Page 15: Cleaning

    4.4. CLEANING INSTRUCTION In order to clean the machine properly, please follow the instructions below: The below-mentioned cleaning steps are to be completed at least twice every 24 hours. IMPORTANT: Before cleaning the machine, ensure that the machine is disconnected from power (unplug the machine).
  • Page 16 3. Remove the front cover: Pull the lower part of the front cover slightly towards the front. Then lift the cover away from the retaining bolts. Clean the hood with water (30 – 50°C) and a cleaning cloth to remove any juice and fruit pulp residues.
  • Page 17 6. Separate the knife guide from the cross holder by pulling out the cross holder screw. (3 individual parts: cross holder, knife guide, screw) Caution: When reinstalling the knife make sure that it rests in the correct position and that the screw is properly tightened by hand.
  • Page 18 8. Remove the upper pressing units (right and left). 9. Remove the lower pressing units (right and left). 10. Lift the knife and pull it out. 11. Unclamp the fixation lever of the feeder and remove the supply tunnel.
  • Page 19 12. Remove the front plate / double cover. 13. Remove the fruit sieve support (left and right). 14. Pull out the fruit sieve support + fruit sieve.
  • Page 20 15. Remove the fruit sieve from the fruit sieve supporter. 16. Remove the peel basket. 17. Remove the drip cup. 18. Remove the sieve from the cup.
  • Page 21 Place all mentioned parts (with the exception of the acrylic front cover) in a dishwasher or clean them thoroughly by hand! 19. Clean the housing. The machine must not be cleaned by means of a water jet but with a wet cloth and clear water only. Wipe clean with a cleaning cloth and dry with a disposable tissue.
  • Page 22 Cleaning the Self-Service Tap Disassembly of the self-service tap 1. Press the supporter of the tap upwards, accordingly push towards the front 2. Pull the tap bottom downwards. 3. Press supporter upwards, accordingly push the supporter towards the back to disassemble the supporter.
  • Page 23 Assembly of the self-service tap 6. Re-Mount all parts after cleaning in the opposite order of removal. Ensure that all parts are correctly mounted and tightened! Caution: Make sure that the guide bolt of the tap bottom faces the rear when assembling the tap. Guide bolt...

  • Page 24: Important Information

    4.5. IMPORTANT INFORMATION In order to ensure a proper functioning of the machine and in order to avoid injury, we ask you to please follow the following points: 1. The fastening screws of the cross holder cannot be loose or missing. 2.
  • Page 25 PROBLEM POSSIBLE CAUSE SOLUTION process. mentioned in the instruction manual. Switching circuit damaged Contact your customer service representative. Press elements are not Gear wheel or axle is Contact your customer service synchronized damaged representative. You can hear the motor but the Malfunction inside the Contact your customer service press elements are not turning.

  • Page 26: Certificates

    6. CERTIFICATE...

  • Page 34: Most Important Spare Parts

    7. MOST IMPORTANT SPARE PARTS Inlet basket / Supply tunnel Fantastic M/AS Art. No.: 500.207.AS3 500207AS3 Inlet basket / Supply tunnel Fantastic M/SB Art. No.: 500.207.SB3 500207SB3 Fixation lever of the Inlet basket / Supply tunnel Art. No.: 500.280.003 Peel remover left Art.
  • Page 35 Knife SCS Up&Down Art. No.: 500.108.002 Knife guide Art. No.: 500.109.002 Plastic knob of the cross holder Art. No.: 500.111.002 Cross holder Art. No.: 500.211.003 Bolt with magnet of the cross holder Art. No.: 500.212.003...
  • Page 36 Screw of the cross holder Art. No.: 500.213.003 Double cover / Double plate complete Art. No.: 500.223.000 Front cover screw Art. No.: 500.225.003 Electronic box / Main electronics Art. No.: 500.280.000 Knife holder and guide on the front plate complete Art.
  • Page 37 Magnet and magnet cover of the front cover Art. No. 600.653.000 Front cover Fantastic Art. No.: 500.110.000 500.110.000 Upper pressing unit Art. No.: 800.160.022 Lower pressing unit Art. No. 500.106.002 Fruit sieve Art. No.: 500.218.023 500.218.023...
  • Page 38 Fruit sieve supporter with SB tap Art. No.: 500.217.SB23 + Art. No.: 500.245.023 + Art. No.: 500.268.020 Fruit sieve supporter Fantastic M/AS Art. No. 500.217.AS23 Peel basket waisted Art. No.:500.216.023 500.216.023 Peel basket straight Art. No.: 500.248.023 500.248.023...
