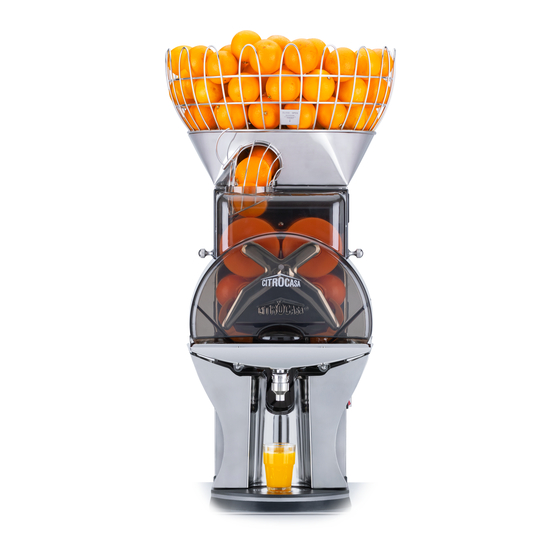

Citrocasa Fantastic F/D Advance Instruction Manual

Orange juicer
Hide thumbs

Advertisement

Table of Contents

Instruction Manual & Documentation
Citrocasa Fantastic F/D Advance
Citrocasa Fantastic F/SB Advance
Fantastic F/D Advance
When ordering spare parts, be sure to mention machine type, article and serial number.
Version: 25.01.2018
Industriezeile 47, 4020 Linz, Austria
Tel.: +43-732-75 01 73-0
Fax: +43-732-75 01 73-24
E-mail:
office@citrocasa.com
Art.No.: 40.000 Version 10 ADV
Art.No.: 40.500 Version 10 ADV
Fantastic F/SB Advance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fantastic F/D Advance and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Citrocasa Fantastic F/D Advance

Summary of Contents for Citrocasa Fantastic F/D Advance

  • Page 1 Instruction Manual & Documentation Version: 25.01.2018 Citrocasa Fantastic F/D Advance Art.No.: 40.000 Version 10 ADV Citrocasa Fantastic F/SB Advance Art.No.: 40.500 Version 10 ADV Fantastic F/SB Advance Fantastic F/D Advance When ordering spare parts, be sure to mention machine type, article and serial number.

  • Page 2: Table Of Contents

    4.2. FIRST STEPS ....................7 4.3. CHOICE OF THE DISPLAY LANGUAGE ............9 4.4. OPERATING THE MACHINE ................ 10 4.4.1. Operation of Citrocasa Fantastic F/SB ..........11 4.4.2. Operation of Citrocasa Fantastic F/Digi ..........13 4.5. CLEANING INSTRUCTION................21 5. TROUBLSHOOTING ..................31 6.

  • Page 3: Important General Information

    3. Finally switch off main power of the machine and unplug machine from power supply. • Citrocasa meets the necessary measures for a selective disposal of the devices brought on the market and provides for an environmentally friendly subsequent treatment. Please dispose of your machine in a proper way by contacting your official dealer/supplier.
  • Page 4 • In case of damage to the machine, we ask you to either contact CITROCASA directly or contact your dealer who supplied you with the machine. • Before cleaning the machine, always unplug the machine from its power supply •...

  • Page 5: Important Information

    IMPORTANT INFORMATION 1.1. In order to ensure a proper functioning of the machine and in order to avoid injury, we ask you to please follow the following points: …………………… 1. The fastening screws of the cross holder cannot be loose or missing. 2.

  • Page 6: Guarantee

    3. GUARANTEE Our quality and examination controls ensure that the machine was supplied in perfect condition. The guarantee covers all complaints caused by construction or material defects which influence the optimal operation of the machine. The guarantee does not cover any damages caused by improper usage of the machine. Any changes to the identification plate nullify all possibilities of any guarantee claims.

  • Page 7: Operating Instructions

    4. OPERATING INSTRUCTIONS 4.1. FIRST STEPS In order to achieve an optimum operation of the machine, please follow the below-mentioned steps carefully. After unpacking and positioning the machine on a level surface, remove the front cover by unscrewing the 2 fastening screws shown in Picture 1. Lift the front cover out of its anchoring to expose the pressing system.
  • Page 8 Place the peel basket and the drip cup as shown in Picture 3 & Picture 4. Peel basket Picture 3 Picture 4 drip cup Make sure that the MTS-System is in its proper position and that the front cover is closed (see Picture 5).

  • Page 9: Choice Of The Display Language

    4.2. CHOICE OF THE DISPLAY LANGUAGE It is possible to choose between 5 different display languages: • English • German • Spanish • French • Italian Please follow the points below, to choose your required display language: Picture 7: Switch on the main power switch located at the side of the machine. The control lamp lights up.

  • Page 10: Operating The Machine

    4.3. OPERATING THE MACHINE Fill the fruit basket with oranges. Do not use fruits larger than 80mm in size. To make sure that the machine works properly, use fruits between 65 – 78 mm in diameter. (Picture 9) Picture 9...

  • Page 11: Operation Of Citrocasa Fantastic F/Sb

    4.3.1. Operation of Citrocasa Fantastic F/SB Place a glass or another container under the juice outlet. To begin the pressing procedure, follow the instructions mentioned below: Self-Service Mode: Picture 10: Switch on the main power switch located at the side of the machine.
  • Page 12 Continuous Mode: Picture 13: Switch on the main power switch located at the side of the machine. The red control lamp lights up. Picture 14: No. 1 button: Select the continuous mode by pressing this button. „Continuous Push “ON” is indicated on the display. Picture 14: No.

  • Page 13: Operation Of Citrocasa Fantastic F/Digi

    4.3.2. Operation of Citrocasa Fantastic F/Digi Place a glass or another container under the juice outlet. To begin the pressing procedure, follow the instructions mentioned below: Digi-Mode Picture 15: Switch on the main power switch located at the side of the machine.
  • Page 14 Picture 17 Continuous Mode: Picture 18: Switch on the main power switch located at the side of the machine. The red control lamp lights up. Picture 20: No. 1 - button: Select the continuous mode by pressing this button. „Continuous Push “ON” is indicated on the display. Picture 19: Start and stop pressing with the ON/OFF button.
  • Page 15 Intelligent stop function It is possible to adjust the machine that it stops after a certain amount of oranges  Peel bucket full! Please find the description below: Picture 21: Switch on the main power switch located at the side/rear of the machine. The control lamp lights up.
  • Page 16 Attention Switch off intelligent stop function To switch off the intelligent stop function please adjust to 00 oranges! Switch on intelligent stop function (adjusted orange changed from 00 – XX) Adjust the amount of pressed oranges – start the machine and press one orange – Machine stops automatically –...
  • Page 17 Lock/Unlock function of the display It is possible to lock the display that the adjusted mode cannot be changed unintentionally. Please find the description below: Picture 23: Switch on the main power switch located at the side/rear of the machine. The control lamp lights up.
  • Page 18 The display is locked and the adjusted mode cannot be changed unintentionally. If the -button is pressed the display shows how to unlock the display - “Unlock key panel Push OFF & ” or “Unlock key panel Push & <+1>”!! Fantastic F/D Fantastic F/SB Picture 25...
  • Page 19 Display Function – Amount of pressed oranges Picture 26: No. 1 button: Press this function button to indicate the total number of pressed fruits. Fantastic F/SB Fantastic F/D Picture 26 Display Function – Operation time Picture 27: No. 1 button: Press this function button to indicate the total operating time. Fantastic F/SB Fantastic F/D Picture 27...
  • Page 20 Factory mode (Only for technician) The factory mode is used to adjust different parameters of the machine. This function should only be used from technician and is locked with a password. Picture 28: No.1: To skip the factory mode press the -button Fantastic F/SB Fantastic F/D...

  • Page 21: Cleaning Instruction

    4.4. CLEANING INSTRUCTION In order to clean the machine properly, please follow the instructions below: The below-mentioned cleaning steps are to be completed at least twice every 24 hours. IMPORTANT: Before cleaning the machine, ensure that the machine is disconnected from power (unplug the machine).
  • Page 22 4. Loosen the fixation screw of the orange deflector plate and remove it. 5. Remove the orange deflector plate. 6. Remove the front cover screws. 7. Remove the front cover: Pull the lower part of the front cover slightly towards the front. Then lift the cover away from the retaining bolts.
  • Page 23 8. Unscrew the cross holder screw. 9. Pull out the cross holder. 10. Separate the knife guide from the cross holder by pulling out the cross holder screw. (3 individual parts: cross holder, knife guide, screw) Caution: When reinstalling the knife make sure that it rests in the correct position and that the screw is properly tightened by hand.
  • Page 24 11. Remove the peel removers (right and left). 12. Remove the upper pressing units (right and left). 13. Remove the lower pressing units (right and left).
  • Page 25 14. Lift the knife and pull it out. 11. Unclamp the fixation lever of the feeder and remove the supply tunnel. 15. Remove the front plate / double cover. 16. Pull out the MTS-System.
  • Page 26 17. Remove the MTS-Pusher. Press the fixation clip and pull out the pusher. 18. Press the lifting lever to Remove the fruit sieve from the fruit sieve supporter. 19. Remove the peel basket. 20. Remove the drip cup.
  • Page 27 21. Remove the sieve from the cup. Place all mentioned parts (with the exception of the acrylic front cover) in a dishwasher or clean them thoroughly by hand! 22. Clean the fruit tub. The machine must not be cleaned by means of a water jet but with a wet cloth and clear water only.
  • Page 28 23. Clean the housing. The machine must not be cleaned by means of a water jet but with a wet cloth and clear water only. Wipe clean with a cleaning cloth and dry with a disposable tissue. Re-Mount all parts after cleaning in the opposite order of removal. Ensure that all parts are correctly mounted and tightened! We recommend to clean the machine twice within 24 hours.
  • Page 29 Cleaning the Self-Service Tap Disassembly of the self-service tap 1. Press the supporter of the tap upwards, accordingly push towards the front 2. Pull the tap bottom downwards. 3. Press supporter upwards, accordingly push the supporter towards the back to disassemble the supporter.
  • Page 30 Assembly of the self-service tap Guide bolt 6. Re-Mount all parts after cleaning in the opposite order of removal. Ensure that all parts are correctly mounted and tightened! Caution: Make sure that the guide bolt of the tap bottom faces the rear when assembling the tap.

  • Page 31: Troublshooting

    5. TROUBLSHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The machine is not working Check if machine is plugged Connect to power source into power outlet No electricity from power Check the power outlet for outlet electricity Main switch off Check if main switch on the side of machine is switched on.
  • Page 32 PROBLEM POSSIBLE CAUSE SOLUTION The machine has blocked Power supply voltage is Check if the power supply often during the pressing insufficient. coincides with that which is process. mentioned in the instruction manual. Switching circuit damaged Contact your customer service representative.

  • Page 33: Certificate

    6. CERTIFICATE...

  • Page 44: Most Important Spare Parts

    7. MOST IMPORTANT SPARE PARTS Peel remover left Art. No.: 500.104.100 500.104.100 Peel remover right Art. No.: 500.105.100 500.105.100 Knife SCS Up&Down Art. No.: 500.108.032 Knife guide Art. No.: 500.109.002...
  • Page 45 Plastic knob of the cross holder Art. No.: 500.111.022 500.111.022 Cross holder Art. No.: 500.211.003 Bolt with magnet of the cross holder Art. No.: 500.212.023 Screw of the cross holder Art. No.: 500.213.023 500213023...
  • Page 46 500223033 500113020 Double cover / Double plate complete Art. No.: 500.223.040 500223040 Front cover screw Art. No.: 500.225.003 Electronic box / Main electronics Art. No.: 500.280.000-V2 Knife holder and guide on the front plate complete Art. No.: 500.113.020 500113020...
  • Page 47 Magnet and magnet cover of the front cover Art. No. 600.653.000 60065300 Front cover Fantastic Art. No.: 500.110.010 500.110.010 Upper pressing unit Art. No.: 800.160.022 Lower pressing unit Art. No. 500.106.012 500106012...
  • Page 48 MTS-System Fantastic SB Art. No.: 500.288.050 MTS-System Fantastic AS + Digi Art. No.: 500.289.030 Pusher MTS-System Fantastic Art. Nr.: 500.286.003 Pusher support MTS-System Fantastic Art. Nr.: 800.131.002...
  • Page 49 Schraube MTS-System Art. Nr.: 500.299.003 Spring MTS-System (Pusher) Art. No.: 500.287.003 Lower part SB-Tap Art. Nr.: 500268050 SB-Tap lever Art. Nr.: 500245033...
  • Page 50 Peel basket waisted Art. No.:500.216.073 Ground plate inlet Art. No.:500.120.052...
