Instruction Manual & Documentation
Citrocasa Fantastic M/AS Advance
Citrocasa Fantastic M/SB Advance

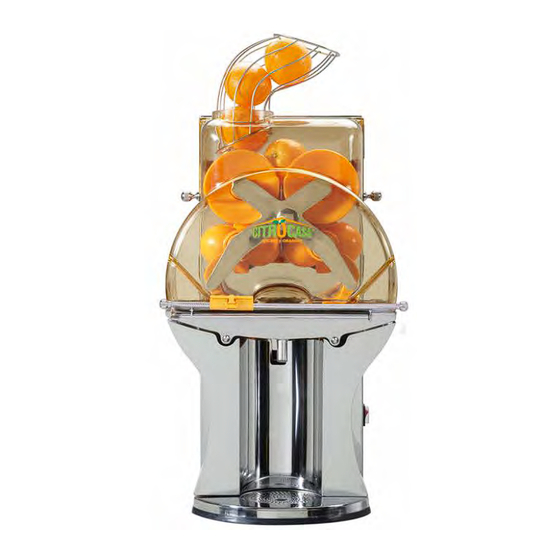

Fantastic M/AS Advance
When ordering spare parts, be sure to mention machine type, article and serial number.
Version: 05.03.2015
Industriezeile 47, 4020 Linz, Austria
Tel.: +43-732-75 01 73-0
Fax: +43-732-75 01 73-24
E-mail:
office@tmp.at
Art.No.: 60.000 Version 08 ADV
Art.No.: 60.500 Version 08 ADV
Fantastic M/SB Advance
Original Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fantastic M/AS Advance and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Citrocasa Fantastic M/AS Advance

Summary of Contents for Citrocasa Fantastic M/AS Advance

  • Page 1 Instruction Manual & Documentation Version: 05.03.2015 Citrocasa Fantastic M/AS Advance Art.No.: 60.000 Version 08 ADV Citrocasa Fantastic M/SB Advance Art.No.: 60.500 Version 08 ADV Fantastic M/AS Advance Fantastic M/SB Advance When ordering spare parts, be sure to mention machine type, article and serial number.

  • Page 2: Table Of Contents

    FIRST STEPS ............................7 4.2. CHOICE OF THE DISPLAY LANGUAGE ....................9 4.3. OPERATING THE MACHINE ......................10 4.3.1. Operation of Citrocasa Fantastic M/SB ................. 11 4.3.2. Operation of Citrocasa Fantastic M/AS ................13 4.4. CLEANING INSTRUCTION ......................21 5. TROUBLSHOOTING ..................28 6.

  • Page 3: Important General Information

    3. Finally switch off main power of the machine and unplug machine from power supply.  Citrocasa meets the necessary measures for a selective disposal of the devices brought on the market and provides for an environmentally friendly subsequent treatment. Please dispose of your machine in a proper way by contacting your official dealer/supplier.
  • Page 4  In case of damage to the machine, we ask you to either contact CITROCASA directly or contact your dealer who supplied you with the machine.  Before cleaning the machine, always unplug the machine from its power supply ...

  • Page 5: Important Information

    1.1. IMPORTANT INFORMATION In order to ensure a proper functioning of the machine and in order to avoid injury, we ask you to please follow the following points: 1. The fastening screws of the cross holder cannot be loose or missing. ……………………...

  • Page 6: Guarantee

    3. GUARANTEE Our quality and examination controls ensure that the machine was supplied in perfect condition. The guarantee covers all complaints caused by construction or material defects which influence the optimal operation of the machine. The guarantee does not cover any damages caused by improper usage of the machine. Any changes to the identification plate nullify all possibilities of any guarantee claims.

  • Page 7: Operating Instructions

    4. OPERATING INSTRUCTIONS 4.1. FIRST STEPS In order to achieve an optimum operation of the machine, please follow the below-mentioned steps carefully. After unpacking and positioning the machine on a level surface, remove the front cover by unscrewing the 2 fastening screws shown in Picture 1. Lift the front cover out of its anchoring to expose the pressing system.
  • Page 8 Place the peel basket and the drip cup as shown in Picture 3 & Picture 4. Picture 4 Picture 3 drip cup Make sure that the MTS-System is in its proper position and that the front cover is closed (see Picture 5 & 6). MTS-System Picture 5 Picture 6...

  • Page 9: Choice Of The Display Language

    4.2. CHOICE OF THE DISPLAY LANGUAGE It is possible to choose between 5 different display languages:  English  German  Spanish  French  Italian Please follow the points below, to choose your required display language: Picture 8: Switch on the main power switch located at the side of the machine. The control lamp lights up.

  • Page 10: Operating The Machine

    4.3. OPERATING THE MACHINE Fill the supply tunnel with oranges. Do not use fruits larger than 80mm in size. To make sure that the machine works properly, use fruits between 65 – 78 mm in diameter. (Picture 10 & 11) Picture 10 Picture 11...

  • Page 11: Operation Of Citrocasa Fantastic M/Sb

    4.3.1. Operation of Citrocasa Fantastic M/SB Place a glass or another container under the juice outlet. To begin the pressing procedure, follow the instructions mentioned below: Self-Service Mode: Picture 12: Switch on the main power switch located at the side of the machine.
  • Page 12 Continuous Mode: Picture 15: Switch on the main power switch located at the side of the machine. The red control lamp lights up. Picture 16: No. 1 FUNC button: Select the continuous mode by pressing this button. „Continuous Push “ON”“ is indicated on the display. Picture 16: No.

  • Page 13: Operation Of Citrocasa Fantastic M/As

    4.3.2. Operation of Citrocasa Fantastic M/AS Place a glass or another container under the juice outlet. To begin the pressing procedure, follow the instructions mentioned below: Auto-Start Mode Picture 17: Switch on the main power switch located at the side of the machine.
  • Page 14 Continuous Mode: Picture 20: Switch on the main power switch located at the side of the machine. The red control lamp lights up. Picture 21: No. 1 FUNC button: Select the continuous mode by pressing this button. „Continuous Push “ON”“ is indicated on the display. Picture 21: No.
  • Page 15 Intelligent stop function It is possible to adjust the machine that it stops after a certain amount of oranges  Peel bucket full!. Please find the description below: Picture 22: Switch on the main power switch located at the side/rear of the machine. The control lamp lights up.
  • Page 16 Attention Switch off intelligent stop function To switch off the intelligent stop function please adjust to 00 oranges! Switch on intelligent stop function (adjusted orange changed from 00 – XX) Adjust the amount of pressed oranges – start the machine and press one orange – Machine stops automatically –...
  • Page 17 Lock/Unlock function of the display It is possible to lock the display that the adjusted mode cannot be changed unintentionally. Please find the description below: Picture 24: Switch on the main power switch located at the side/rear of the machine. The control lamp lights up.
  • Page 18 Picture 26 Unlock display Picture 25: No.1+2:Press the FUNC-Button + OFF-Button  Display unlocked...
  • Page 19 Display Function – Amount of pressed oranges Picture 27: No. 1 FUNC button: Press this function button to indicate the total number of pressed fruits. Picture 27 Display Function – Operation time Picture 28: No. 1 FUNC button: Press this function button to indicate the total operating time. Picture 28...
  • Page 20 Factory mode (Only for technician) The factory mode is used to adjust different parameters of the machine. This function should only be used from technician and is locked with a password. Picture 29: No.1: To skip the factory mode press the FUNC-Button Picture 29...

  • Page 21: Cleaning Instruction

    4.4. CLEANING INSTRUCTION In order to clean the machine properly, please follow the instructions below: The below-mentioned cleaning steps are to be completed at least twice every 24 hours. IMPORTANT: Before cleaning the machine, ensure that the machine is disconnected from power (unplug the machine).
  • Page 22 4. Unscrew the cross holder screw. 5. Pull out the cross holder. 6. Separate the knife guide from the cross holder by pulling out the cross holder screw. (3 individual parts: cross holder, knife guide, screw) Caution: When reinstalling the knife make sure that it rests in the correct position and that the screw is properly tightened by hand.
  • Page 23 In case of disregard, either the blade system or the upper pressing units of the machine might get damaged. 7. Remove the peel removers (right and left). 8. Remove the upper pressing units (right and left).
  • Page 24 9. Remove the lower pressing units (right and left). 10. Lift the knife and pull it out. 11. Unclamp the fixation lever of the feeder and remove the supply tunnel.
  • Page 25 12. Remove the front plate / double cover. 13. Pull out the MTS-System. 14. Remove the MTS-Pusher. Press the fixation clip and pull out the pusher.
  • Page 26 15. Press the lifting lever to Remove the fruit sieve from the fruit sieve supporter. 16. Remove the peel basket. 17. Remove the drip cup. 18. Remove the sieve from the cup.
  • Page 27 Place all mentioned parts (with the exception of the acrylic front cover) in a dishwasher or clean them thoroughly by hand! 12. Clean the housing. The machine must not be cleaned by means of a water jet but with a wet cloth and clear water only. Wipe clean with a cleaning cloth and dry with a disposable tissue.

  • Page 28: Troublshooting

    5. TROUBLSHOOTING PROBLEM POSSIBLE CAUSE SOLUTION The machine is not working Check if machine is plugged Connect to power source into power outlet No electricity from power Check the power outlet for outlet electricity Main switch off Check if main switch on the side of machine is switched on.
  • Page 29 PROBLEM POSSIBLE CAUSE SOLUTION The machine has blocked Power supply voltage is Check if the power supply often during the pressing insufficient. coincides with that which is process. mentioned in the instruction manual. Switching circuit damaged Contact your customer service representative.

  • Page 30: Zertificate

    6. ZERTIFICATE...

  • Page 41: Most Important Spare Parts

    7. MOST IMPORTANT SPARE PARTS Inlet basket / Supply tunnel Fantastic M/AS Art. No.: 500.207.AS23 500207AS23 Inlet basket / Supply tunnel Fantastic M/SB Art. No.: 500.207.SB23 500207SB23 Fixation lever of the Inlet basket / Supply tunnel Art. No.: 500.280.003 Peel remover left Art.
  • Page 42 Peel remover right Art. No.: 500.105.100 500.105.100 Knife SCS Up&Down Art. No.: 500.108.022 Knife guide Art. No.: 500.109.002 Plastic knob of the cross holder Art. No.: 500.111.022 500.111.022...
  • Page 43 Cross holder Art. No.: 500.211.003 Bolt with magnet of the cross holder Art. No.: 500.212.023 500212013 Screw of the cross holder Art. No.: 500.213.023 500213023 500223033 Double cover / Double plate complete Art. No.: 500.223.030 500223030...
  • Page 44 Front cover screw Art. No.: 500.225.003 Electronic box / Main electronics Art. No.: 500.280.000-V2 Knife holder and guide on the front plate complete Art. No.: 500.113.00 Magnet and magnet cover of the front cover Art. No. 600.653.000 600.653.000...
  • Page 45 Front cover Fantastic Art. No.: 500.110.010 500.110.010 Upper pressing unit Art. No.: 800.160.022 Lower pressing unit Art. No. 500.106.002 MTS-System Fantastic SB Art. No.: 500.288.000...
  • Page 46 MTS-System Fantastic AS + Digi Art. No.: 500.289.000 Pusher MTS-System Fantastic Art. Nr.: 500.286.003 Pusher support MTS-System Fantastic Art. Nr.: 800.131.002 Schraube MTS-System Art. Nr.: 500.299.003 Spring MTS-System (Pusher) Art. No.: 500.287.003...
  • Page 47 Inlet ground plate right Art. No.: 500120R02 Inlet ground plate left Art. Nr.: 500120L02 Inlet ground plate drip tray Art. Nr.: 500200002 Lower part SB-Tap Art. Nr.: 500268050...
