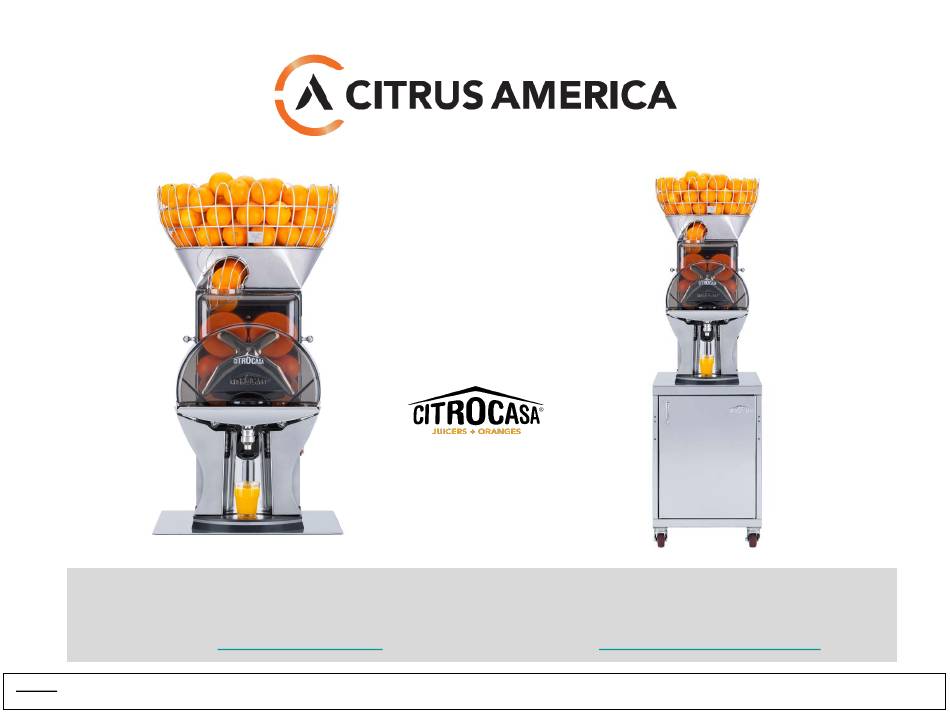

User Manual
Manual version:
October 2020
Fantastic F/SB-ATS Advance
Version 08 and newer
Citrus America, Inc.
2781 Wrights Rd, Ste 1233, Oviedo, FL 32765
Phone: (407) 790-7862 / Fax: (407) 790-7863
Website:
www.citrusamerica.com
Training:
www.citrusamerica.com/training
NOTICE: ALL USERS OF THIS JUICER MUST UNDERSTAND THE IMPORTANT SAFEGUARDS SECTION AND THE CONTENTS OF THIS MANUAL. THIS INSTRUCTION MANUAL SHOULD
BE LOCATED IN AN ACCESSIBLE LOCATION FOR ALL USERS OF THE JUICER.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Advance Fantastic F/SB-ATS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Citrocasa Advance Fantastic F/SB-ATS

Summary of Contents for Citrocasa Advance Fantastic F/SB-ATS

  • Page 1 User Manual Manual version: October 2020 Fantastic F/SB-ATS Advance Version 08 and newer Citrus America, Inc. 2781 Wrights Rd, Ste 1233, Oviedo, FL 32765 Phone: (407) 790-7862 / Fax: (407) 790-7863 Website: www.citrusamerica.com Training: www.citrusamerica.com/training NOTICE: ALL USERS OF THIS JUICER MUST UNDERSTAND THE IMPORTANT SAFEGUARDS SECTION AND THE CONTENTS OF THIS MANUAL. THIS INSTRUCTION MANUAL SHOULD BE LOCATED IN AN ACCESSIBLE LOCATION FOR ALL USERS OF THE JUICER.

  • Page 2: Table Of Contents

    CONTENTS IMPORTANT GENERAL INFORMATION AND SAFEGUARDS CITROCASA LIMITED WARRANTY TECHNICAL SPECIFICATIONS PRESSING KITS AND FRUIT SIZES MACHINE PART OVERVIEW SETTING UP YOUR CITROCASA FANTASTIC F/SB-ATS OPERATING YOUR CITROCASA FANTASTIC F/SB-ATS CLEANING YOUR CITROCASA FANTASTIC F/SB-ATS SPARE PARTS CERTIFICATIONS...

  • Page 3: Important General Information And Safeguards

    • Citrocasa juicers are certified and in accordance with the NSF, UL, CE, GS and TUV safety standards. • The technical data of the Citrocasa juicer is located on the ID plate on the rear of the machine. When ordering spare parts, be sure to mention the model and serial number.
  • Page 4 IMPORTANT SAFEGUARDS (CONTINUED) • Please read the section on cleaning and hygiene and be sure that all personnel are adequately trained on machine usage prior to their using the equipment. • Before cleaning the machine, making any repairs or maintenance, FOR YOUR SAFETY please ensure that the machine is unplugged from its power supply.
  • Page 5 They can take this product for environmentally safe recycling. Citrocasa may make changes to this instruction manual without prior notice. The most current version of this manual may be obtained by contacting Citrus America, Inc. directly. If you have any suggestions to improve this manual or our products, or any questions regarding the training of users or machine operation and maintenance, or any other comments, please contact your dealer/supplier or Citrus America, Inc.

  • Page 6: Citrocasa Limited Warranty

    Citrus America, Inc. be liable for any loss, damage, whether direct, indirect, incidental, special, consequential, or punitive, or for any costs or expenses incurred, arising out of or in connection with the use of the Citrocasa juicer. Manufacturer’s and Citrus America, Inc.’s liability shall not exceed the purchase price paid.

  • Page 7: Technical Specifications

    Fantastic F/SB - ADV 3. TECHNICAL SPECIFICATIONS Model Fantastic F/SB-ATS Fruit per Minute Approx. 30 pcs. of fruit Measurements in inches (cm) Fruit Citrus fruit, diameter (standard pressing kit): Specifications 2.55 - 3.14 in for details see page 7. (65-80mm); •...

  • Page 8: Pressing Kits And Fruit Sizes

    4. PRESSING KITS AND FRUIT SIZES FANTASTIC F/SB-ATS STANDARD PRESSING KIT SMALL PRESSING KIT Fruit Size Diameter: 2.55 - 3.14 in Fruit Size Diameter: 1.96 - 2.55 in (65 - 80 mm) (50 - 65 mm) Typical Fruit Squeezed: Typical Fruit Squeezed: Oranges | Larger Lemons and Tangerines Lemons | Limes | Tangerines | Smaller Oranges PRESSING KIT OPERATIONAL TIPS:...

  • Page 9: Machine Part Overview

    5. MACHINE PART OVERVIEW 7. Cross holder 8. Cross holder screw 9. ATS (Automatic Transport System) 10. Peel bucket (peel chute when cabinet-mounted) 11. Drip cup with drip tray 12. 2-Level feeding plate (inside hopper) 13. Digital display (on side of machine) 14.

  • Page 10: Setting Up Your Citrocasa Fantastic F/Sb-Ats

    Citrocasa Cabinet: Install your Fantastic F/SB-ATS on the Citrocasa stainless steel Fantastic Cabinet (sold separately). – Counter Installation Kit: Install your Fantastic F/SB-ATS on your own cabinet countertop using the Citrocasa Counter Installation Kit (sold separately). Please contact Citrus America for product details and mounting instructions.

  • Page 11: Operating Your Citrocasa Fantastic F/Sb-Ats

    7. OPERATING YOUR CITROCASA FANTASTIC F/SB-ATS To begin juicing, follow these steps: • Clean all the parts that come into contact with the juice prior to juicing for the first time. • Fill the fruit basket with fruit (Pic 1).
  • Page 12 SWITCH ON YOUR JUICER: • Plug the machine into a standard grounded outlet. Turn on the main switch on the side of machine (Pic 6). The switch will light up. • By pressing the function button you will be able to view several different menu options, which are explained over the next few pages (Pic 7).
  • Page 13 SELECT AN OPERATING MODE FOR YOUR FANTASTIC F/SB-ATS: On the Fantastic F/SB-ATS, you can choose between two operating modes: self-service and continuous pressing. • SELF-SERVICE MODE (Pic 9): – With the function button select the self-service mode. You will see “Self service Push 〈Press〉” on the display. –...
  • Page 14 AUTOMATIC TRANSPORT SYSTEM (ATS): The Fantastic F/SB-ATS is equipped with a pulp and seed removal system, which will automatically transport pulp and seeds into the peel buckets/chutes. INTELLIGENT STOP FUNCTION: For improved peel management, it is possible to set the machine to automatically stop pressing after a certain amount of fruit has been pressed, reminding you to to empty the peel bucket in order to avoid peel jams.
  • Page 15 LOCK/UNLOCK DISPLAY: It is possible to lock the display in the preset pressing mode to avoid unintentional setting changes. To lock the display: Pic 13 Pic 14 • Select the desired pressing mode. • Press the function button and the OFF button at the same time (Pic 13).
  • Page 16 SHUTTING DOWN YOUR CITROCASA FANTASTIC: • The lower pressing elements on the Fantastic Advance are designed to return to a preprogrammed end position when properly operated and shutdown. In the correct end position (Pic 2), the blade and lower pressing elements can easily be removed for cleaning and re-assembled.

  • Page 17: Cleaning Your Citrocasa Fantastic F/Sb-Ats

    • Wipe down the machine itself and the juicing area on a regular basis using warm water. If you are using a Citrocasa Fantastic Cabinet or a Citrocasa Counter Installation Kit, also be sure to clean the stainless-steel peel chute and all cabinet/kit parts properly.
  • Page 18 STEP-BY-STEP CLEANING INSTRUCTIONS The below mentioned cleaning steps must be completed at least once every 24 hours. Frequent juicing will require more frequent cleaning. For optimal efficiency and hygiene, we recommend using a cleaning log. IMPORTANT: ü Make sure to properly shut down the machine (see page 16). ü...
  • Page 19 Loosen the front cover screws left and right (Pic 7). Remove the front cover: Pull the lower part of the front cover slightly toward the front. Then lift the cover away from the retaining bolts up top (Pic 8). ATTENTION: DO NOT PLACE THE ACRYLIC FRONT COVER IN THE DISHWASHER.
  • Page 20 12. Remove the peel ejectors left and right (Pic 12). 13. Remove the upper and lower pressing elements, pulling out the left upper and lower and the right upper and lower at the same time (Pic 13a and 13b). 14. Lift up the knife and pull it out (Pic 14). CAUTION: THE BLADE IS RAZOR SHARP AND CAN CAUSE INJURY! DO NOT HOLD THE BLADE FROM THE SHARP EDGE AT THE TOP!
  • Page 21 REMOVING & CLEANING THE ATS SYSTEM: 17. Remove the sieve support and ATS (Pic 17). See page 21 for instructions on how to disassemble and clean the SB tap. 18. Lift up (1) on the left side of the ATS to disengage the guide latches (2) from the lower sieve (Pic 18).
  • Page 22 CLEANING THE SB TAP: Remove and disassemble the tap as follows: 22. Press the tap lever upwards and at the same time push it to the front (Pic 22). 23. Pull the bottom of the tap downwards (Pic 23). 24. Press the lever upwards and at the same time push it towards the back (Pic 24a) to release it (Pic 24b).
  • Page 23 Wipe down the housing with fresh, clean warm water and a soft cloth. Dry thoroughly before reassembling the machine. Be sure to wipe down the stainless-steel posts and the O-ring seals with fresh, clean warm water to remove any juice residue. ATTENTION: The four O-ring seals protect the inside of the machine from juice and increase hygiene and machine life.

  • Page 24: Spare Parts

    9. SPARE PARTS Be sure to provide machine model and serial number when ordering spare parts to ensure that the proper parts are supplied. For additional spare parts not listed below, please contact your customer service representative or Citrus America directly. Peel ejector left Peel ejector right SCS up &...
  • Page 25 Be sure to provide machine model and serial number when ordering spare parts to ensure that the proper parts are supplied. For additional spare parts not listed below, please contact your customer service representative or Citrus America directly. Front cover magnet Front cover Fantastic Upper pressing and magnet cover...

  • Page 26: Certifications

    Call our toll-free number: 1-855-MY-CITRO (855-692-4876) Citrocasa, TMP GmbH, and Citrus America, Inc. reserve the right to make technical changes and modifications to the equipment and specifications. We do our best to supply accurate and up to date information. Even so, from time to time information that is inaccurate or out of date may be in our...
