Design Information

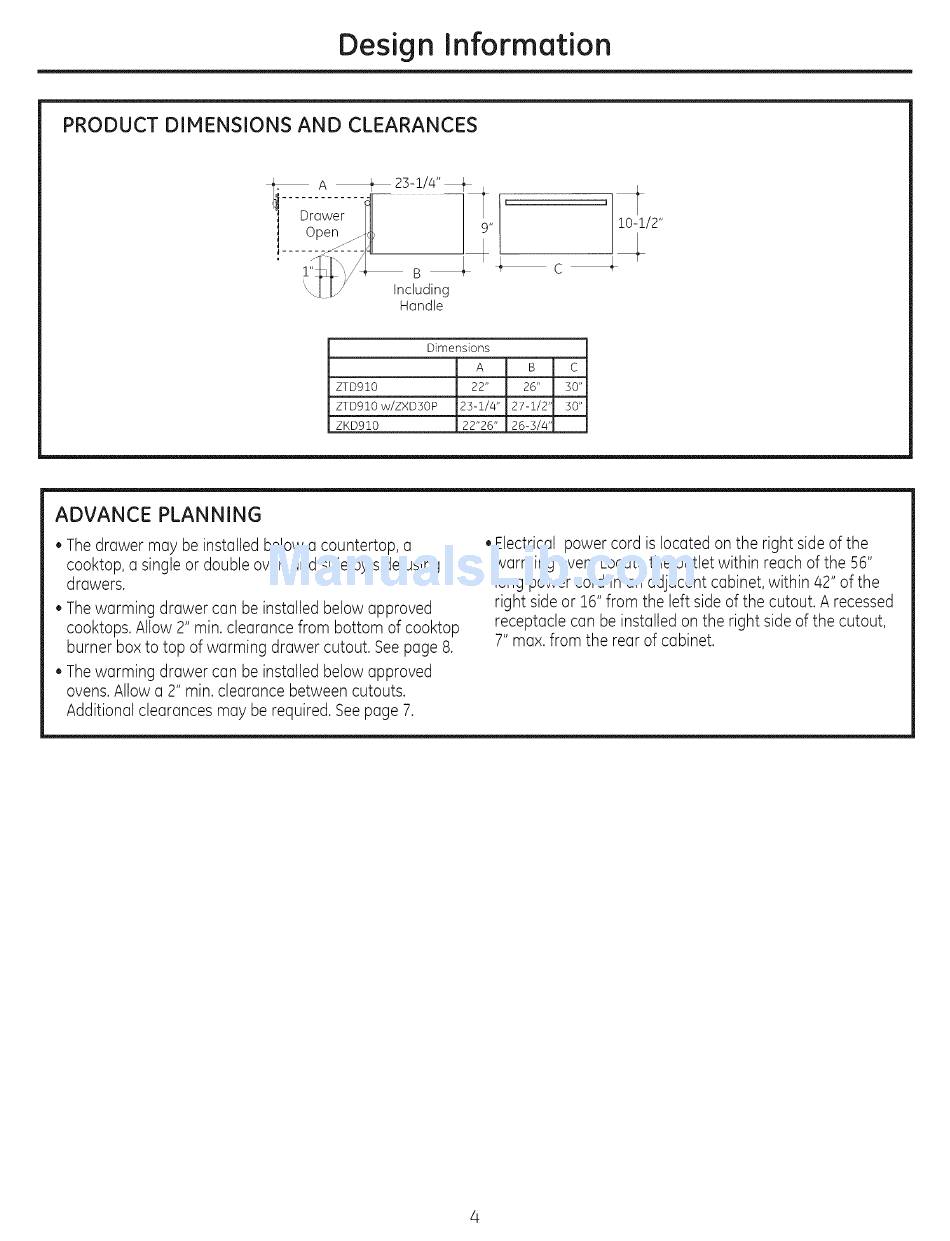

PRODUCT DIMENSIONS AND CLEARANCES
A _ 23-1/4" _ i
',I Drawer II / /
:i
Open
..4_, / 9"
II /"
kll /
° (_1, ,nclBuding__ _ d_C
Handle
10-1/2"
Dimensions
A B C
ZTD910 22" 26" 30"
ZTD910 w/ZXD30P 23-i/4" 27-i/2 '_ 30"
ZKD910 22"26" 26-3/4 '_
ADVANCE PLANNING
• Thedrawer may be installed belowa countertop,a
cooktop,a singleor doubleoven and side by side using 2
drawers.
• Thewarming drawer can be installed belowapproved
cooktops.Allow 2" min. clearancefrom bottom of cooktop
burner boxto top of warming drawer cutout.Seepage 8.
• Thewarming drawer can be installed belowapproved
ovens.Allow a 2" min. clearance betweencutouts.
Additionalclearancesmay be required.Seepage 7.
• Electrical power cord is located on the right side of the
warming oven. Locate the outlet within reach of the 56"
long power cord in an adjacent cabinet, within 42" of the
right side or 16" from the left side of the cutout. A recessed
receptacle can be installed on the right side of the cutout,
7" max. from the rear of cabinet.
