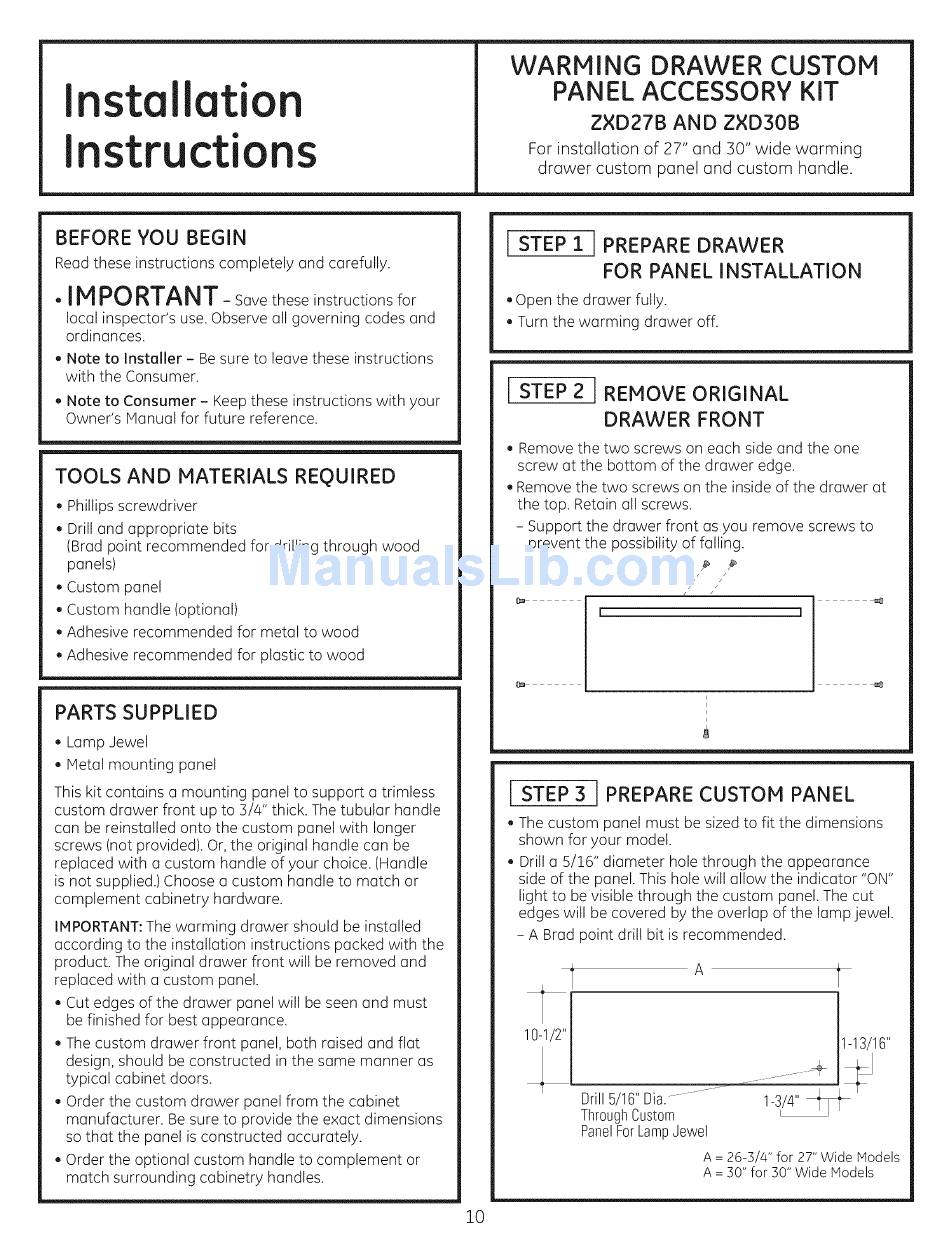

Installation
Instructions
WARMING DRAWER CUSTOM
PANEL ACCESSORY KIT
ZXD27B AND ZXD30B
For installation of 27" and 30" wide warming
drawer custom panel and custom handle.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
, IMPORTANT- Save these i nstructions for
local inspector's use. Observe all governing codes and
ordinances.
. Note to Installer - Be sure to leave these instructions
with the Consumer.
. Note to Consumer - Keep these instructions with your
Owner's Manual for future reference.
TOOLS AND MATERIALS REQUIRED
. Phillips screwdriver
. Drill and appropriate bits
(Brad point recommended for drilling through wood
panels)
. Custom panel
. Custom handle (optional)
. Adhesive recommended for metal to wood
. Adhesive recommended for plastic to wood
PARTS SUPPLIED
. Lamp Jewel
. Metal mounting panel
This kit contains a mounting panel to support a trimless
custom drawer front up to 3/4" thick. The tubular handle
can be reinstalled onto the custom panel with longer
screws (not provided). Or, the original handle can be
replaced with a custom handle of your choice. (Handle
is not supplied.) Choose a custom handle to match or
complement cabinetry hardware.
IMPORTANT:The warming drawer should be installed
according to the installation instructions packed with the
product. The original drawer front will be removed and
replaced with a custom panel.
. Cut edges of the drawer panel will be seen and must
be finished for best appearance.
. The custom drawer front panel, both raised and flat
design, should be constructed in the same manner as
typical cabinet doors.
. Order the custom drawer panel from the cabinet
manufacturer. Be sure to provide the exact dimensions
so that the panel is constructed accurately.
. Order the optional custom handle to complement or
match surrounding cabinetry handles.
10
STEP i PREPARE DRAWER
FOR PANEL INSTALLATION
. Open the drawer fully.
. Turn the warming drawer off.
STEP2 REMOVE ORIGINAL
DRAWER FRONT
. Remove the two screws on each side and the one
screw at the bottom of the drawer edge.
. Remove the two screws on the inside of the drawer at
the top. Retain all screws.
- Support the drawer front as you remove screws to
prevent the possibility of falling.
// /
/ //
I
i
i
i
i
e
STEP3 PREPARE CUSTOM PANEL
The custom panel must be sized to fit the dimensions
shown for your model.
Drill a 5/16" diameter hole through the appearance
side of the panel. This hole will allow the indicator "ON"
light to be visible through the custom panel. The cut
edges will be covered by the overlap of the lamp jewel.
- A Brad point drill bit is recommended.
10-1/2"
Drill 5/16"Dia.- ........................
ThroughCustom
PanelForLampJewel
1-13/16"
.......................... ÷ _J
A = 26-3/4" for 27" Wide Models
A = 30" for 30" Wide Models
