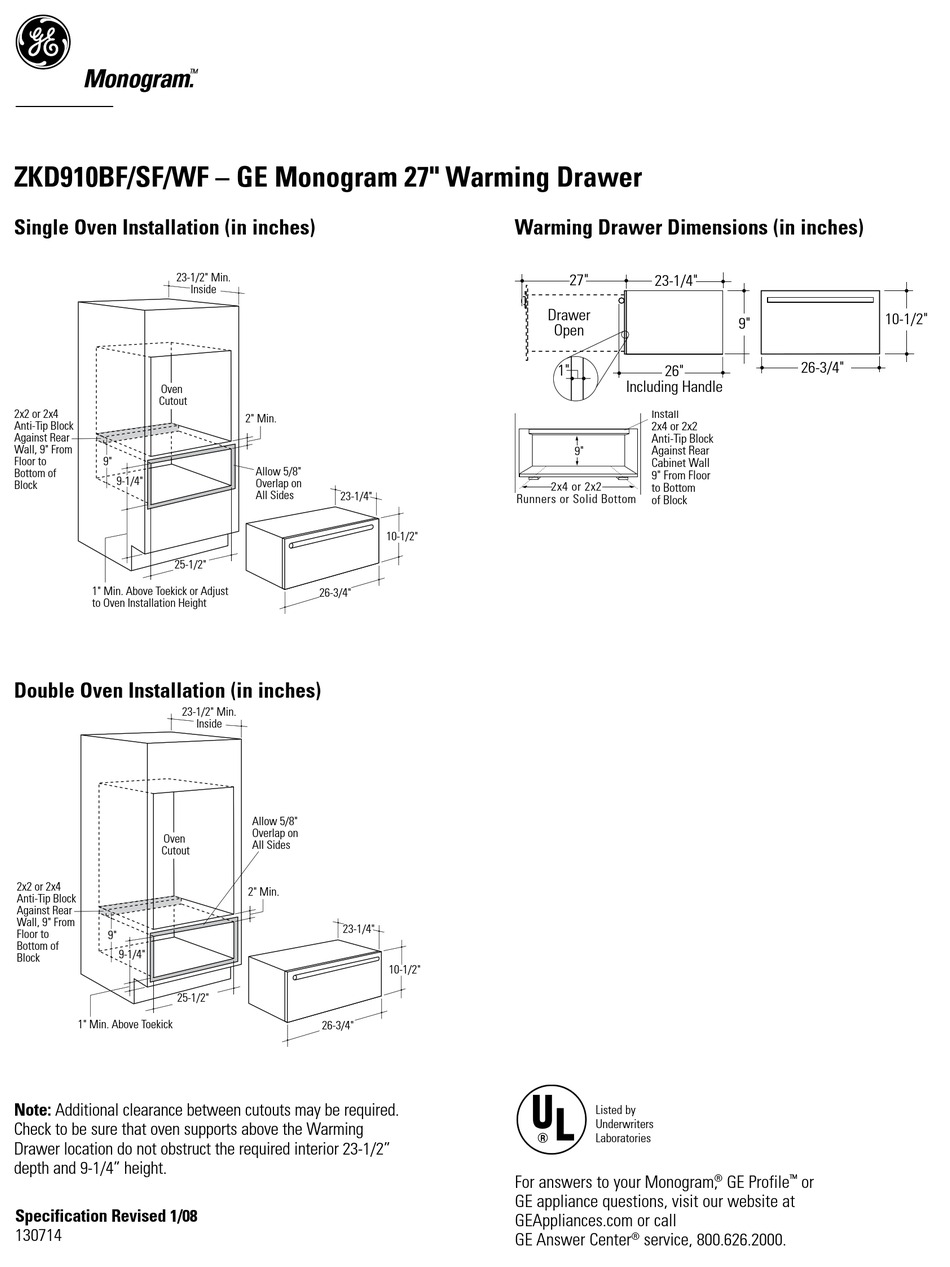

ZKD910BF/SF/WF – GE Monogram 27" Warming Drawer
Single Oven Installation (in inches)
23-1/2" Min.
Inside
Oven
Cutout
2x2 or 2x4
Anti-Tip Block
Against Rear
Wall, 9" From
9"
Floor to
Bottom of
9-1/4"
Block
25-1/2"
1" Min. Above Toekick or Adjust
to Oven Installation Height
Double Oven Installation (in inches)
298Dia14
23-1/2" Min.
Oven
Cutout
2x2 or 2x4
Anti-Tip Block
Against Rear
Wall, 9" From
Floor to
9"
Bottom of
9-1/4"
Block
25-1/2"
1" Min. Above Toekick
298Dia13
Note: Additional clearance between cutouts may be required.
Check to be sure that oven supports above the Warming
Drawer location do not obstruct the required interior 23-1/2"
depth and 9-1/4" height.
Specification Revised 1/08
130714
2" Min.
Allow 5/8"
Overlap on
All Sides
23-1/4"
26-3/4"
Inside
Allow 5/8"
Overlap on
All Sides
2" Min.
23-1/4"
26-3/4"
Warming Drawer Dimensions (in inches)
Drawer
Open
1"
2x4 or 2x2
Runners or Solid Bottom
10-1/2"
298Dia16
10-1/2"
For answers to your Monogram,
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center
27"
23-1/4"
9"
26"
Including Handle
Install
2x4 or 2x2
Anti-Tip Block
Against Rear
9"
Cabinet Wall
9" From Floor
to Bottom
of Block
298Dia12
