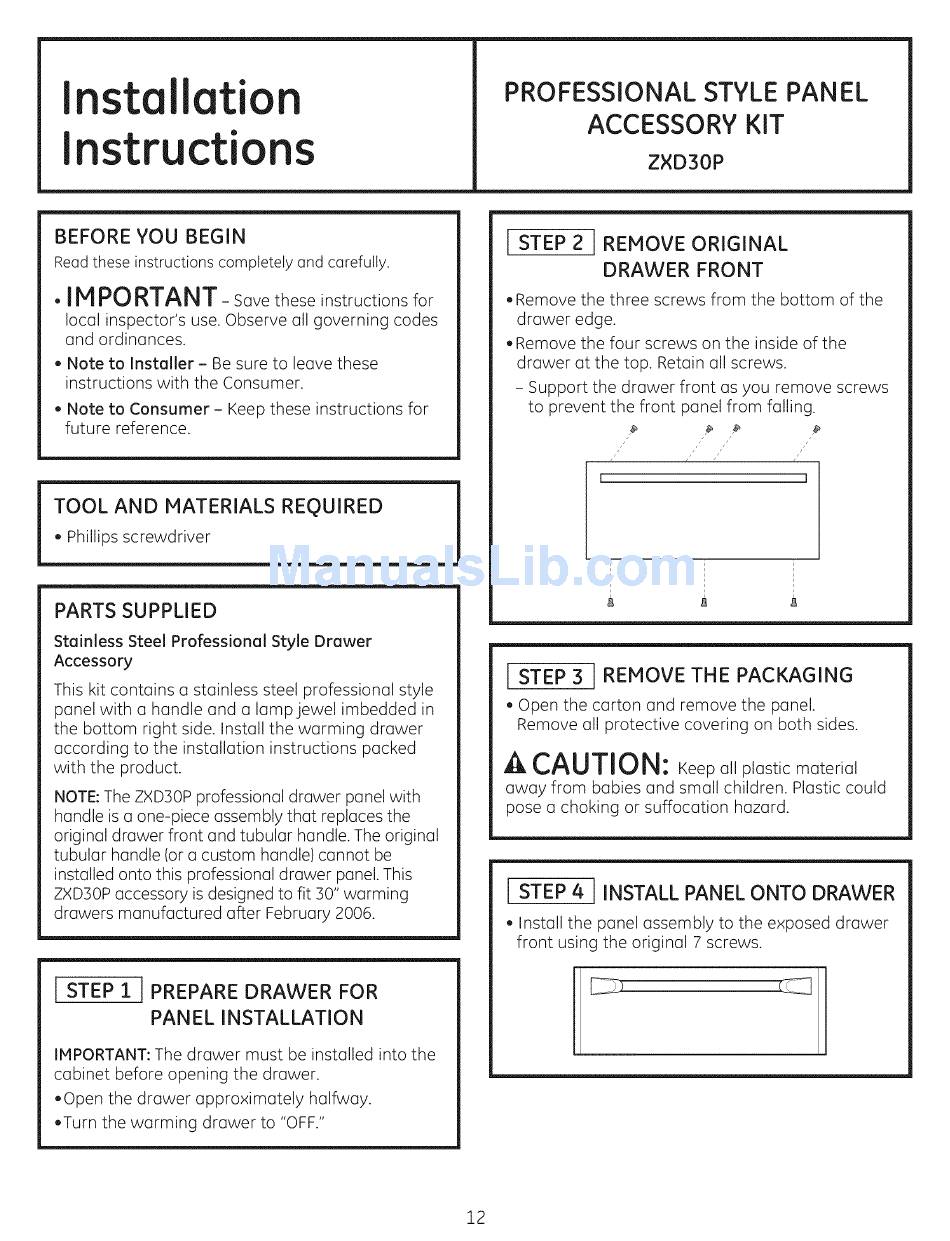

Installation
Instructions
PROFESSIONAL STYLE PANEL
ACCESSORY KIT
ZXD30P
BEFORE YOU BEGIN
Read these instructions completely and carefully.
, IMPORTANT- save these instructions for
local inspector's use. Observe all governing codes
and ordinances.
, Note to Installer - Be sure to leavethese
instructions withthe Consumer.
, Note to Consumer - Keep these instructions for
futurereference.
TOOL AND MATERIALS REQUIRED
, Phillips screwdriver
PARTS SUPPLIED
Stainless Steel Professional Style Drawer
Accessory
This kit contains a stainless steel professional style
panel with a handle and a lamp jewel imbedded in
the bottom right side. Install the warming drawer
according to the installation instructions packed
with the product.
NOTE: The ZXD30P professional drawer panel with
handle is a one-piece assembly that replaces the
original drawer front and tubular handle. The original
tubular handle (or a custom handle) cannot be
installed onto this professional drawer panel. This
ZXD30P accessory is designed to fit 30" warming
drawers manufactured after February 2006.
J STEP i IPREPARE
DRAWER FOR
PANEL INSTALLATION
IMPORTANT: The drawer must be installed into the
cabinet before opening the drawer.
, Open the drawer approximately halfway.
,Turn the warming drawer to "OFF."
STEP2 REMOVE ORIGINAL
DRAWER FRONT
, Remove the three screws from the bottom of the
drawer edge.
, Remove the four screws on the inside of the
drawer at the top. Retain all screws.
- Support the drawer front as you remove screws
to prevent the front panel from falling.
/, //'
L J
STEP 3 REMOVE THE PACKAGING
, Open the carton and remove the panel.
Remove all protective c overingon both sides.
A CAUTION:
Keep all plastic material
away from babies and small children. Plastic could
pose a choking or suffocation hazard.
STEP 4 INSTALL PANEL ONTO DRAWER
, Install the panel assembly to the exposed drawer
front using the original 7 screws.
12
