DAY & NIGHT
D&N MODE
AUTO / In AUTO mode, the camera switches between day and night automatically depending
COLOR / on light level. If COLOR is selected, the camera always stays in day/color mode.
B&W If B&W is selected, camera always stays in night/B&W mode. If AUTO is selected,
please define the following settings:

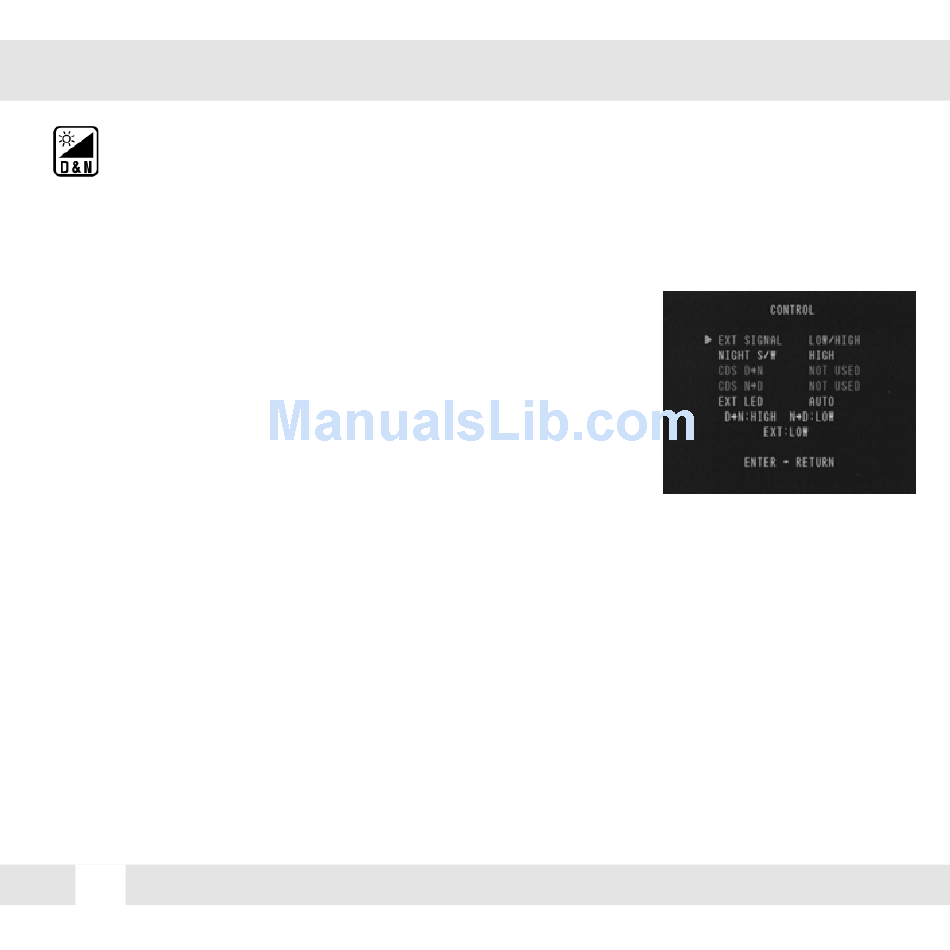

CONTROL: AUTO/EXT. If using IR LEDs built into the camera, select
AUTO. If using external IR LEDs separately, select EXT.
Adjust the following submenu options:
* EXT SIGNAL: Select from CDS or LOW/HIGH.
If CDS is selected: Day & Night will work by CDS signal level.
If LOW/ HIGH is set for EXT SIGNAL: Day & Night will work by
CDS's Low/High signal.
- CDS D>N : Set D>N level from 0 ~ 40. Adjusts the light level at
which the camera switches from day to night. Higher values, the lower the light level.
- CDS N>D : Set N>D level from 0 ~ 20. Adjusts the light level at which the camera
switches from night to day. This should be lower than the value of D>N above.
- NIGHT S/W : Decide the Low/High signal of CDS.
*EXT LED: If you want to turn off the external LED by force, you can change the value
from AUTO to OFF.
DELAY
Time interval delay before switching from day mode to night mode.
0 ~ 15 Sec.
B/W BURST
If ON is selected, the camera provides a color burst signal in night mode.
OFF / ON
SMART IR - ANTI-SAT: Select level value from 1 ~ 20.
- SAT. AREA : Set SMART IR area from 0 ~ 20.
