Digital Watchdog DWC-D3563D User Manual page 14

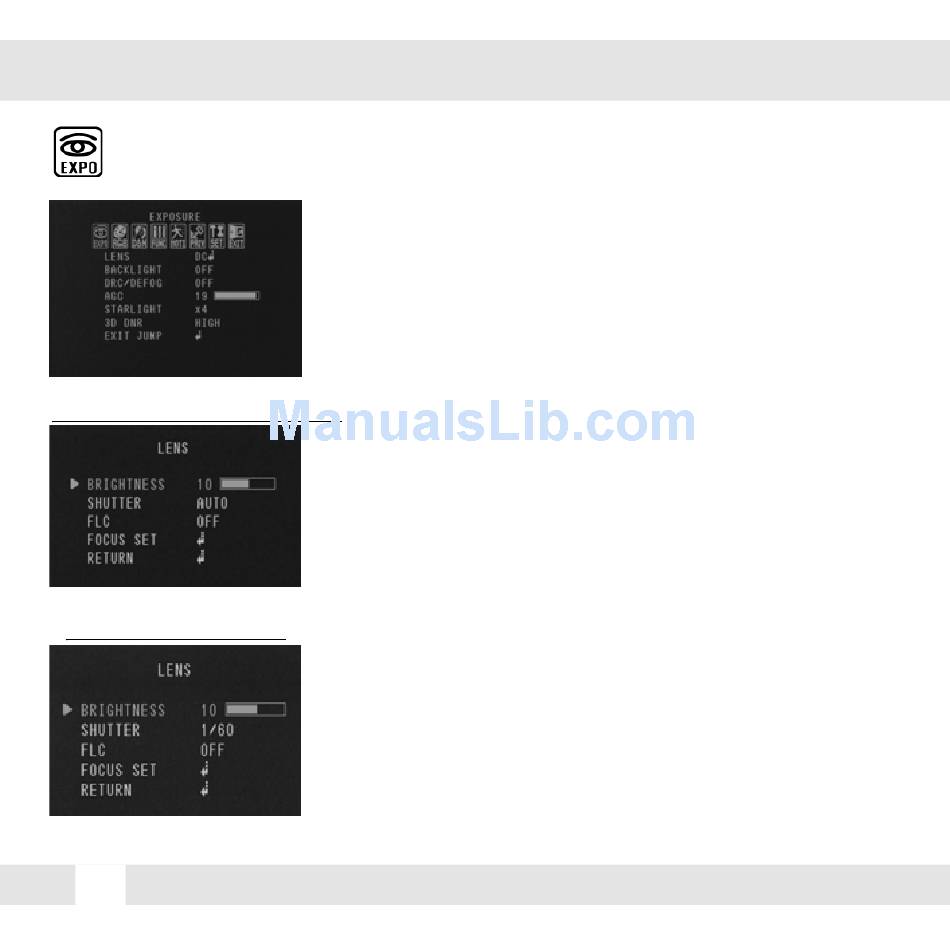

EXPOSURE
MANUAL Lens Submenu
DC Lens Submenu
14
LENS
Manual mode supports the fixed board lens or the
Manual
manual iris lens.
DC mode supports the auto-iris varifocal lens.
DC
NOTE: Both MANUAL and DC mode have FOCUS SET. You
can adjust the focus by finding the highest number on the FOCUS
SET. See page 15 for focus information.
Brightness: Adjust the camera's brighness from 0~20. The higher the
number, the brighter the image will appear.
Shutter: Sets the shutter speed levels from 1/60 to 1/120000.
*For LENS-MANUAL Mode, the default SHUTTER is AUTO.
*For LENS-DC Mode, the default SHUTTER is 1/60. Select DC-AUTO for
*outdoor use.
FLC: Enable or disable to adjust the camera's view and prevent the
image from flickering.
