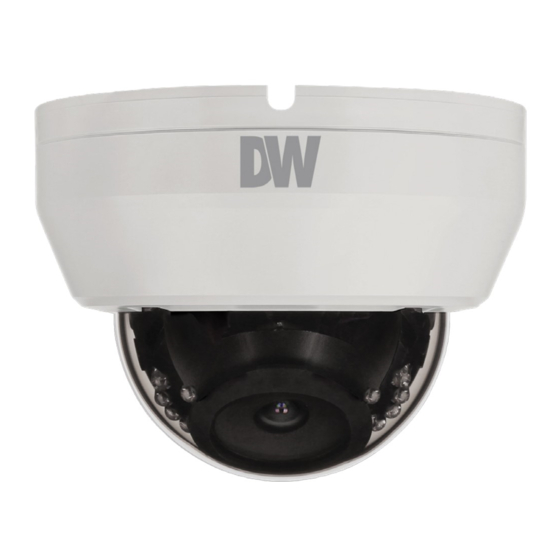

Digital Watchdog STAR-LIGHT Universal HD over Coax DWC-D3263TIR Quick Start Manual

Digital Watchdog STAR-LIGHT Universal HD over Coax DWC-D3263TIR Quick Start Manual

Indoor dome cameras
Hide thumbs Also See for STAR-LIGHT Universal HD over Coax DWC-D3263TIR:

Advertisement

Quick Start Guide
DW® Universal HD over Coax®
indoor dome cameras
DWC-D3263TIR
WHAT'S IN THE BOX
Screws
and plastic
Mounting
Screw &
1 Set
anchors-
template
Torx Wrench
Plastic Anchor-2pcs
Mount Bolt & Nut
2pcs
Screw &
Torx Wrench
Plastic Anchor-2pcs
Test video
Quick set up
1
cable
guide
Template Sheet
Manual
Test Video Cable
for installing by Bolt & Nut
NOTE:
Download all your support materials and tools in one place.
Manual
Test Video Cable
1.
Go to: http://www.digital-watchdog.com/resources
2. Search your product by entering the part number in
the 'Search by Product' search bar. Results for
applicable part numbers will populate automatically
based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals
and quick set up guide (QSGs) will appear in the results.
Attention: This document is intended to serve as a quick reference for initial
set up. It is recommended that the user read the entire instruction manual for
complete and proper installation and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours:
9:00AM – 8:00PM EST, Monday thru Friday
STEP 1 – PREPARING TO MOUNT THE CAMERA
1. The mounting surface must withstand five times the weight of your
camera.
2. Pay attention to the cables. The can easily become caught and
damaged. Any damage may cause a short or fire.
3. Detach the camera's dome cover by pressing on both sides of the
dome cover.
4. Use the mounting template to mark and drill the necessary holes in
the mounting surface.
Protective sheet
Screw &
Mount Bolt & Nut
Torx Wrench
Plastic Anchor-2pcs
1
Screw &
Torx Wrench
Plastic Anchor-2pcs
Template Sheet
Manual
Test Video Cable
for installing by Bolt & Nut
1
Protective film
Manual
Test Video Cable
digital-watchdog.com
Quick Start Guide
STEP 2 – CABLING THE CAMERA TO
EXTERNAL DEVICES
Pass the wires through the mount bracket and make all necessary
connections. Connect the BNC cable and power cables to the camera.
Power Requirements
Power Consumption
12VDC ONLY!
DC12V (LED off): 1.86W
CAUTION! The camera supports
DC12V (LED on): 3.6W
DC power supply only

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAR-LIGHT Universal HD over Coax DWC-D3263TIR and is the answer not in the manual?

Questions and answers

Summary of Contents for Digital Watchdog STAR-LIGHT Universal HD over Coax DWC-D3263TIR

  • Page 1 Quick Start Guide Quick Start Guide DW® Universal HD over Coax® STEP 1 – PREPARING TO MOUNT THE CAMERA STEP 2 – CABLING THE CAMERA TO indoor dome cameras EXTERNAL DEVICES 1. The mounting surface must withstand five times the weight of your camera.
  • Page 2 5. Once the installation is complete, remove the protective film from the camera’s dome cover. Test video output and Rotation 360° OSD joystick controller Copyright © Digital Watchdog. All rights reserved. Rev Date: 09/19 Specifications and pricing are subject to change without notice.
