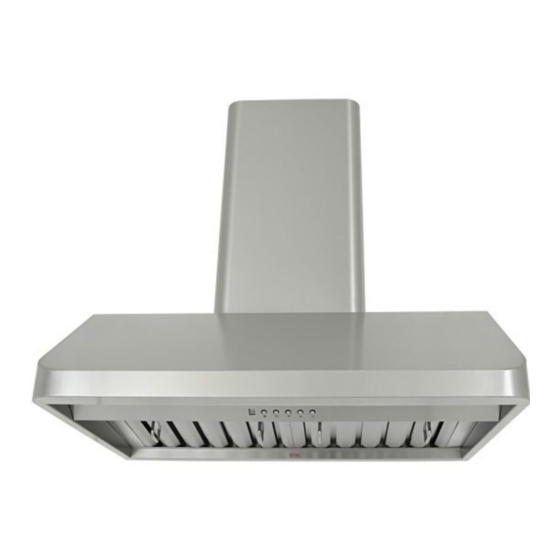

- Page 1 KOBE Brand Range Hood Model No. CH9130SQB CH9136SQB CH9142SQB CH9148SQB CH-191 SERIES – 9” HEIGHT INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
-
Page 2: Table Of Contents
- READ AND SAVE THESE INSTRUCTIONS - CONTENTS Important Safety Instructions...1 Components of Package...3 Installation...4 Operation Instructions ...11 Maintenance...12 Specifications...13 Measurements & Diagrams...14 Parts List...16 Circuit Diagram ...20 Disclaimer ...22 Warranty ...23 Product Registration...25 - READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING - A L L W IR IN G M U S T B E D O N E B Y A P R O F E S S IO N A L A N D IN A C C O R D A N C E W IT H N A T IO N A L A N D L O C A L E LE C T R IC A L C O D E S . -
Page 3: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 4 What to Do In The Event Of a Range Top Grease Fire SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 5: Components Of Package
OPTIONAL RECIRCULATING KIT – Model No. RA1020RD IS AVAILABLE. FOR MORE INFORMATION, PLEASE CONTACT KOBE RANGE HOODS AT (626) 309-1356. ORIGINAL KIT – Model No. RA1020DC (Sold Separately) KOBE Adjustable Duct Cover - 1 ... -
Page 6: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation Calculate the length of the installation, before installing the hood. (All calculation is measure in inches.) TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Preferred Height of Counter Top to Hood Bottom (Recommended 27”... - Page 7 S A F E T Y W A R N IN G HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF IT IS NECESSARY TO REMOVE ANY PARTS FOR INSTALLING, CLEANING OR SERVICING. NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY OCCUR.
-
Page 8: Under The Cabinet Installation
UNDER THE CABINET INSTALLATION Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. A straight, short venting run will allow ... - Page 9 Ductwork Installation Use aluminum or steel pipe to connect the 6” round plastic exhaust on the hood to the ductwork above. make all joints secure and air tight. Refer to Figure 4. To convert ductwork to 7” round, attached 7” round adapter (provided) to the 6” round plastic exhaust.
-
Page 10: Stand Alone Installation
***This installation only applied with the purchase duct cover RA1020DC). Preparation before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. Decide the location of the venting pipe from the hood to the outside. (Figure 1) A straight, short venting run will allow ... - Page 11 mounting screws (not provided) on the wall, leaving 1/8” away from the wall. Align hood-mounting screws on the wall and hook hood into place as shown in Figure 11. screws to secure hood to the wall. For safety purposes, extra knockout holes on the back of the hood are provided.
- Page 12 all joints secure and air tight as shown on Figure 14. To convert ductwork to 7” round, attached 7” round adapter (provided) to the 6” round plastic exhaust. Slide the inner duct cover up 2 inches before sliding the entire duct cover onto the hood.
-
Page 13: Operation Instructions
OPERATION INSTRUCTIONS This KOBE hood is equipped with four electronic controls with a 10-second standby startup & 30- second delay shutoff, two powerful centrifugal turbine impellers with baffle filters, and two bright 12-volt 20-watt halogen lights. The four electronic controls are Light Control, Speed Control A, Speed Control B and the Power Control (On/Off). -
Page 14: Maintenance
MAINTENANCE For the optimal level of operation, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. *** Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 15: Specifications
SPECIFICATIONS MODEL / SIZE COLOR CONSUMPTION / AMPERE VOLTAGE NUMBER OF MOTORS DESIGN FAN TYPE EXHAUST CONTROLS HALOGEN LIGHTS HOOD DIMENSION (W x D x H) OPTIONAL ACCESSORIES (W x D x H) WEIGHT (lbs) SPEED Air Capacity (cfm)* Sone *In House Test Static Pressure “0”. -
Page 16: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS All measurements in ( ) are millimeters. All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO.: CH9130SQB - FOR STAND ALONE (WITH OPTIONAL DUCT COVER) - ***Hood-Mounting Bracket - FOR UNDER THE CABINET - MODEL NO.: CH9136SQB CH9142SQB... - Page 17 ***Rear Knockout Holes MODEL NO.: CH9130SQB MODEL NO.: CH9136SQB CH9142SQB CH9148SQB...
-
Page 18: Parts List
PARTS LIST MODEL NO.: CH9130SQB CH9136SQB CH9142SQB CH9148SQB DESCRIPTION 7” Round Adapter 6” Round Plastic Exhaust Plastic Plate Hood Casing Halogen Light Unit (12V 20W Max.) Control Unit Control Board Transformer Support Transformer (Motor) Air Chamber Air Chamber (Top) Air Chamber (Side) Transformer (Light) Capacitor Processor Board Box... - Page 19 ORIGINAL KIT DESCRIPTION Duct Cover-Mounting Bracket Screw (TS 4 x 8 mm) Duct Cover Hood-Mounting Bracket Screw (3/16” x 3/8”) Rubber Stand Screw (TS 4 x 8 mm) RECIRCULATING KIT DESCRIPTION Duct Cover-Mounting Bracket T-Head Box Box Bracket Screw (TS 4 x 8 mm) Recirculating Duct Cover 6”...
- Page 20 MODEL NO.: CH9130SQB CH9136SQB...
- Page 21 MODEL NO.: CH9142SQB CH9148SQB...
-
Page 22: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: CH9130SQB CH9136SQB... - Page 23 MODEL NO.: CH9142SQB CH9148SQB...
-
Page 24: Disclaimer
DISCLAIMER 1. CAREFULLY INSPECT ALL ITEMS FOR DAMAGES BEFORE ACCEPTING DELIVERY. NOTE ANY DAMAGES ON THE FREIGHT BILL OR EXPRESS RECEIPT. REQUEST NAME AND SIGNATURE OF THE CARRIER’S AGENT AND KEEP COPY TO SUPPORT YOUR CLAIM. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. -
Page 25: Warranty
WARRANTY KOBE Range Hoods, Inc. warrants all products manufactured or supplied by it to be free from defects in workmanship and materials. Its obligations pursuant to this warranty are limited to a period of two years from the date of purchase and to the repair or replacement at its option and subject to the terms and conditions stated below, of any component part, which its examination shall disclose to be so defective. - Page 26 Some states do not allow limitations on the duration of implied warranties. This warranty gives you specific legal rights, and may also have rights, which vary from state to state. For service contact: KOBE Range Hoods, Inc. 4934 Walnut Grove Avenue Suite 202 San Gabriel, CA 91776 U.S.A...
-
Page 27: Product Registration
KOBE Range Hoods Agent or KOBE Range Hoods as applicable. Keep proof of purchase (original invoice) handy for inspection.
