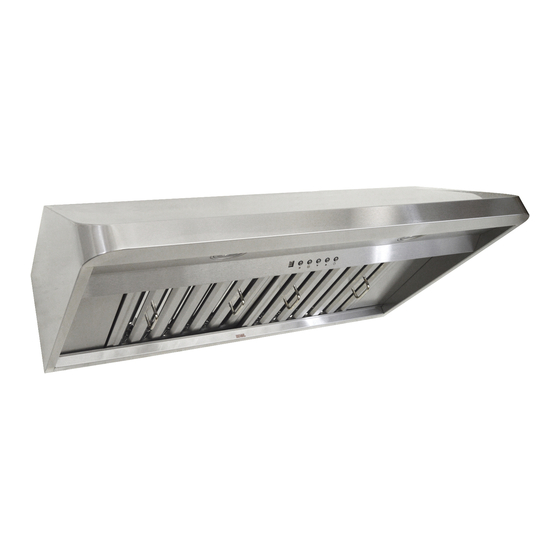

CH91 SQB-1 Parts Location and Replacement
This basic guide is to show the parts location of the CH91 SQB-1 and how to remove or install certain parts.
To see more detailed guidelines, please visit:
For under cabinet models: CH9130SQB-1, CH9136SQB-1, CH9142SQB-1, CH9148SQB-1
For wall mount models: CH9130SQB-WM-1, CH9136SQB-WM-1, CH9142SQB-WM-1, CH9148SQB-WM-1
1. Plastic Oil Tunnel
2. Safety Screen
3. LED Light (3W)
KOBE Range Hoods
"So Quiet...You Won't Believe It's On!"

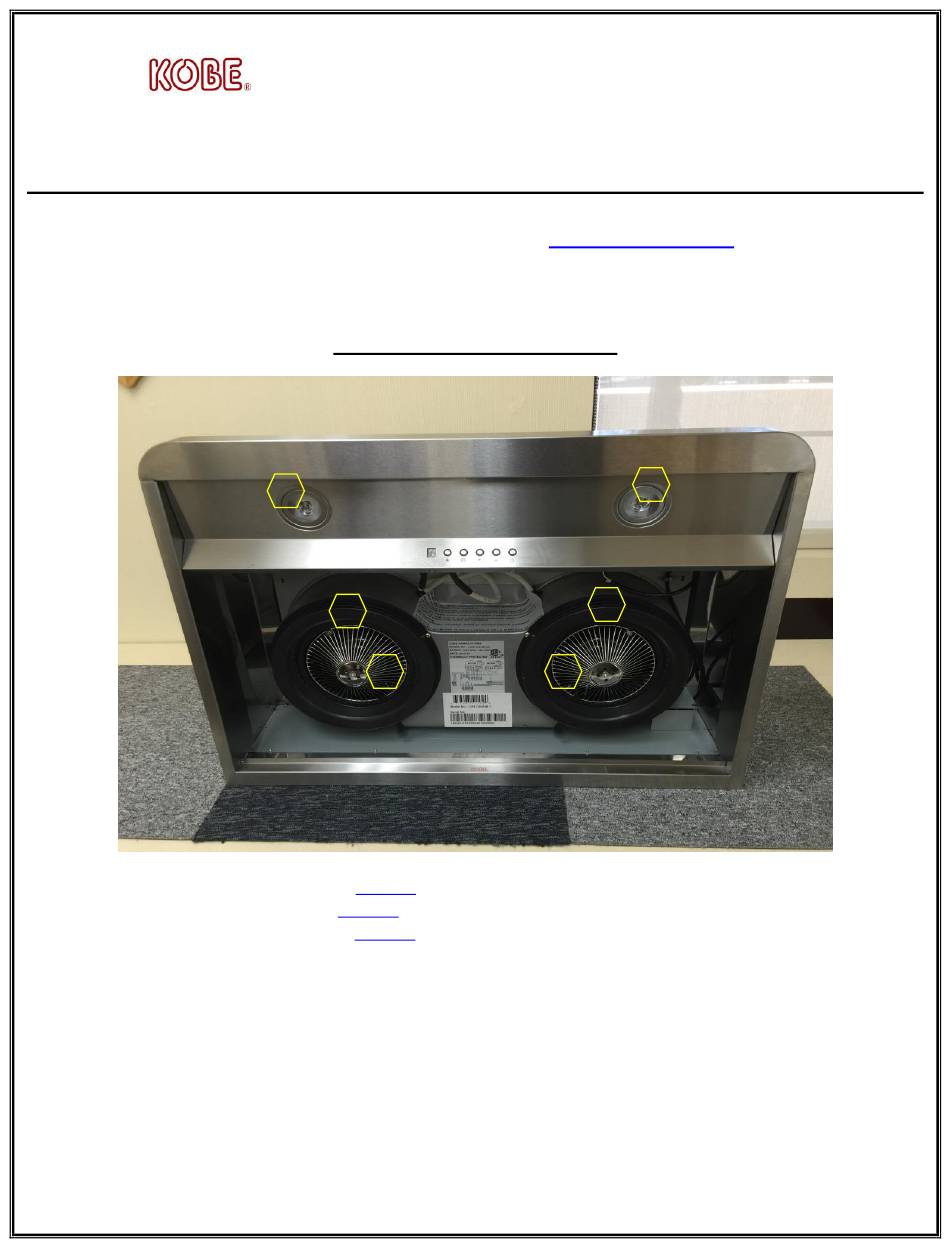

Overall Snapshot of CH91 SQB-1
3
1
2
Part #16 – See "Parts List" page on manual)
(Manual
Part #17 – See "Parts List" page on manual)
(Manual
Part #6 – See "Parts List" page on manual)
(Manual
Page 1 of 9
Version 20160725
Kobe Service and Repair
3
1
2
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for KOBE CH91
Summary of Contents for KOBE CH91
- Page 1 “So Quiet…You Won’t Believe It’s On!” CH91 SQB-1 Parts Location and Replacement This basic guide is to show the parts location of the CH91 SQB-1 and how to remove or install certain parts. To see more detailed guidelines, please visit:...
- Page 2 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the Capacitor Support Warning: 1. Loosen the screw first with a hand tool screw driver. 2. When pulling the wires from the capacitor support, press the ‘push release’ at the back of the cord.
- Page 3 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Accessing the Processor Board Part #10 – See “Parts List” page on manual) 5. Capacitor 2 pcs (Manual Part #15 – See “Parts List” page on manual) 6. Processor Board (Manual...
- Page 4 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Accessing the Control Unit Figure 1 Figure 2 Figure 3 Figure 4 Part #8 – See “Parts List” page on manual) 7. Control Unit (Manual Warning: For the For a more detailed guideline, visit:...
- Page 5 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the Impeller Figure 1 Figure 2 Figure 3 Figure 4 Figure 5 Figure 6 Part #13 and #14 – See “Parts List” page on manual) 8. Turbine Impeller (Manual Part #11 and #12 – See “Parts List” page on manual) 9.
- Page 6 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Removing the Motor Warning: Loosen the screw first with a hand tool screw driver. Attaching Back the Motor Note: When placing back the motor, make sure that the wire is properly placed underneath the metal wiring guard.
- Page 7 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Attaching Back the Impeller Figure 1 Figure 2 Figure 3 Figure 4 Warning: Do not overtighten the nut. Figure 5 Note: When attaching back the impeller, make sure that the open tube in the middle of the impeller is aligned evenly to the metal rod in the center of the motor.
- Page 8 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” More on attaching the impeller: Figure 1 Figure 2 Warning: Make sure to attach the screw on the flat surface of the motor’s metal rod. Figure 3 Figure 4 Page 8 of 9...
- Page 9 KOBE Range Hoods “So Quiet…You Won’t Believe It’s On!” Placing the Impellers in their Correct Positions Right Left Side Motor: Side Has No Motor: Has “L” Marking Marking Left Side Right Side Left Side Impeller Right Side Impeller (Turbine Impeller B—Part #: L1-0251-0747-B) (Turbine Impeller A—Part #: L1-0251-0747-A)
