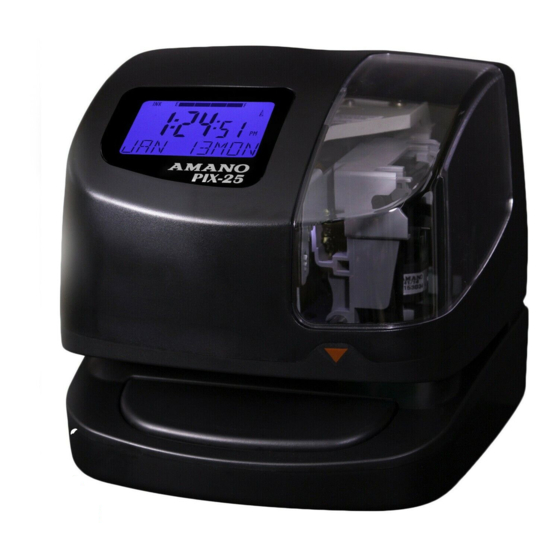

- Page 1 PIX-25 Atomic Time Clock Operation Manual...
-
Page 2: Proprietary Notice
Proprietary Notice This document contains proprietary information and such information may not be reproduced in whole or part without the written permission from Amano Cincinnati, Inc. 140 Harrison Ave., Roseland, New Jersey 07068. Amano Cincinnati, Inc. reserves the right to make equipment changes and improvements, which may not be reflected in this document. - Page 3 E (Empty) to F (Full). The PIX-25 calculates the ink capacity of the ribbon cartridge from the number of imprints made. As the ink capacity decreases, the bars in the gauge will disappear.
-
Page 4: Making A Test Print
The hour may need to be set to your location. 1. Make sure the PIX-25 is plugged in. 2. Insert a piece of paper or time card into the PIX-25. The clock will automatically print YEAR, MONTH, DATE and TIME with AM or PM. -
Page 5: Changing The Print Direction
(Right Side) (Left Side) flashes in the display, then press the ENTER button. 5. Press the PROGRAM button to exit. LANGUAGE PRINT DIR PAPER DET LEAD ZERO NUMBERING DST BEGIN DST END DISP HOUR pg. 5 www.amano.com PIX-25 1-800-253-9836... - Page 6 Press the ENTER button and the year will start to flash. Press CHANGE button until correct year is displayed and then press ENTER. The month will start to flash. Press the CHANGE button until correct month is displayed and then press ENTER. pg. 6 www.amano.com PIX-25 1-800-253-9836...
- Page 7 Press the ENTER and the word will start to flash. Press the CHANGE button to change to and then ENTER. Press the PROGRAM button to exit the Program Mode PAPER DET pg. 7 www.amano.com PIX-25 1-800-253-9836...
-
Page 8: Wall Mounting
Level the Back Plate and mark the location of the two upper mounting holes. Secure to the wall using #10 wood screws (or equivalent). Feed the AC Power Adapter cable through one of the holes in the Back Plate. pg. 8 www.amano.com PIX-25 1-800-253-9836... -
Page 9: Atomic Clock Feature
PIX-25 is located in an area that cannot receive the Atomic time signal, DO NOT be concerned, since the PIX-25 is able to accurately keep the time using its quartz mechanism (plus or minus three seconds per week). -
Page 10: Ribbon Cartridge Replacement
Check the printing quality to confirm that you have installed the ribbon properly. Reset the INK capacity gauge by pressing the CHANGE and ENTER buttons at the same time Replace the cover. pg. 10 www.amano.com PIX-25 1-800-253-9836... -
Page 11: Error Messages
Cleaning Do not use any chemical solvents or oils to clean or lubricate your PIX-25. This will damage your clock. To clean the inside of your clock, blow it out with air. -
Page 12: Specifications
-10°C to 45°C (14°F to 113°F) Ambient Humidity: 10% to 90% (non-condensing) Dimensions: 155mm Height (6.10 in), 175mm Depth (6.9 in). Weight: Approximately 1.77kg (3.9 lbs.) Environment: Indoor use only; dust-free environment. Keep out of direct sunlight. Standards Compliance: pg. 12 www.amano.com Pix-25 1-800-253-9836... -
Page 13: Warranty Information
During the one year period of warranty, Amano Cincinnati, Inc., will, at its sole option, replace or repair the returned product at no charge if it is determined by Amano Cincinnati, Inc. -
Page 14: Product Registration
Will help you obtain more efficient warranty service in case there is a problem with your product. Don’t forget Please take the time to register your product. Registration takes 2 minutes. COMPLETE YOUR PRODUCT REGISTRATION ONLINE AT: http://www.amano.com/registerclock pg. 14 www.amano.com Pix-25 1-800-253-9836... - Page 15 15 www.amano.com PIX-25 1-800-253-9836...
- Page 16 ■ Copyright © 2015 Amano Cincinnati, Inc. ■ AJR-254700 08/18/2015...
