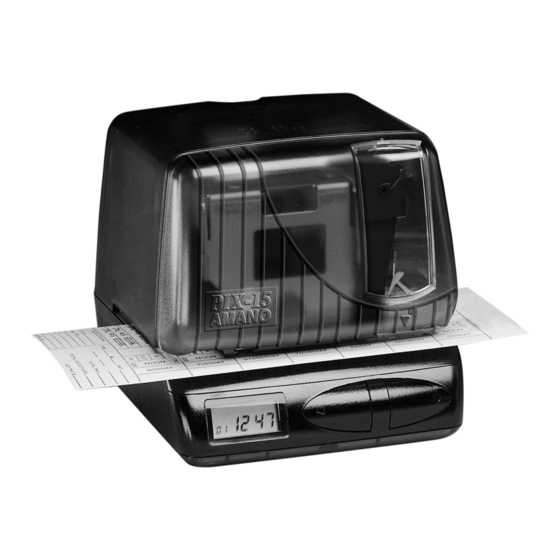

Amano PIX-15 User Manual

Electronic time recorder
Hide thumbs Also See for PIX-15:

Advertisement

Table of Contents

See also: Operating Manual
®
PIX-15
Electronic Time Recorder
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIX-15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amano PIX-15

Summary of Contents for Amano PIX-15

  • Page 1 ® PIX-15 Electronic Time Recorder User’s Guide...
  • Page 2 Amano Cincinnati, Inc. 140 Harrison Ave., Roseland, New Jersey 07068. Amano Cincinnati, Inc. reserves the right to make equipment changes and improvements which may not be reflected in this document.

  • Page 3: Removing The Cover & Packing Materials

    Removing the Cover & Packing Materials Please Note: You must remove the packaging spacers from the printer block and the Printer Carriage before attempting to use your PIX-15. 1. Lift the printer block and remove the spacer. Amano Cincinnati, Inc.
  • Page 4 Lift the cover to remove. 3. Remove the spacer between the Ribbon Cartridge and the Printer Carriage. 4. Re-install the cover. Your PIX-15 is ready for use! 1-800-253-9836 (Mon. - Fri. 8:00 - 5:00 PST) Amano Cincinnati, Inc.

  • Page 5: The Front Panel

    The Front Panel Normally, the Display Window shows the date and time. When you use the Quick Set or Program Mode to change the settings of the PIX-15, the instructions to change the clock are shown in this window. The two buttons on the front panel are used to navigate through the Quick Set and Program Mode to change the clock’s settings.

  • Page 6: Make A Test Print

    Page 4 Make a Test Print 1. Plug in the power cord. 2. Insert a piece of paper or time card into the PIX-15. The clock will automatically print YEAR, MONTH, DATE and TIME with AM or PM (in Pacific Time).

  • Page 7: Entering The Clock Program

    When the display flashes all four digits, tap the right button again. k. When the display flashes Pl d d A E, tap left button. Amano Cincinnati, Inc. (Mon. - Fri. 8:00 - 5:00 PST) 1-800-253-9836...

  • Page 8: Set The Time

    End, then tap the right button. 3. The PIX-15 is ready for use! Note: If you do not use Daylight Saving Time, you need to disable the Daylight Saving Time feature. Putting the same dates in program level P3 and P4 does this.

  • Page 9: Replacing The Ribbon

    #10 wood screws or equivalent. 4. Place the PIX-15 on the Mounting Bracket by sliding the top tabs into the slots on each side of the case. Push the PIX-15 back and down against the Mounting Bracket until the PIX-15 snaps into place.

  • Page 10: Error Messages

    1-800-253-9836 for assistance. CAUTION: Do not use any chemical solvents or oils to clean or lubricate your PIX-15. This will damage your clock. To clean the inside of your clock, blow it out with air. Specifications Power Requirements: For PIX-15 Input: AC16.5V, 60Hz, 0.6A...
  • Page 12 A Business Unit of the AMANO Group of Companies 140 Harrison Avenue, Roseland, NJ 07068 http://www.amano.com AJR-211901 Copyright © 2001 Amano Cincinnati, Inc. Printed in U.S.A. 09/01/12.5M...
