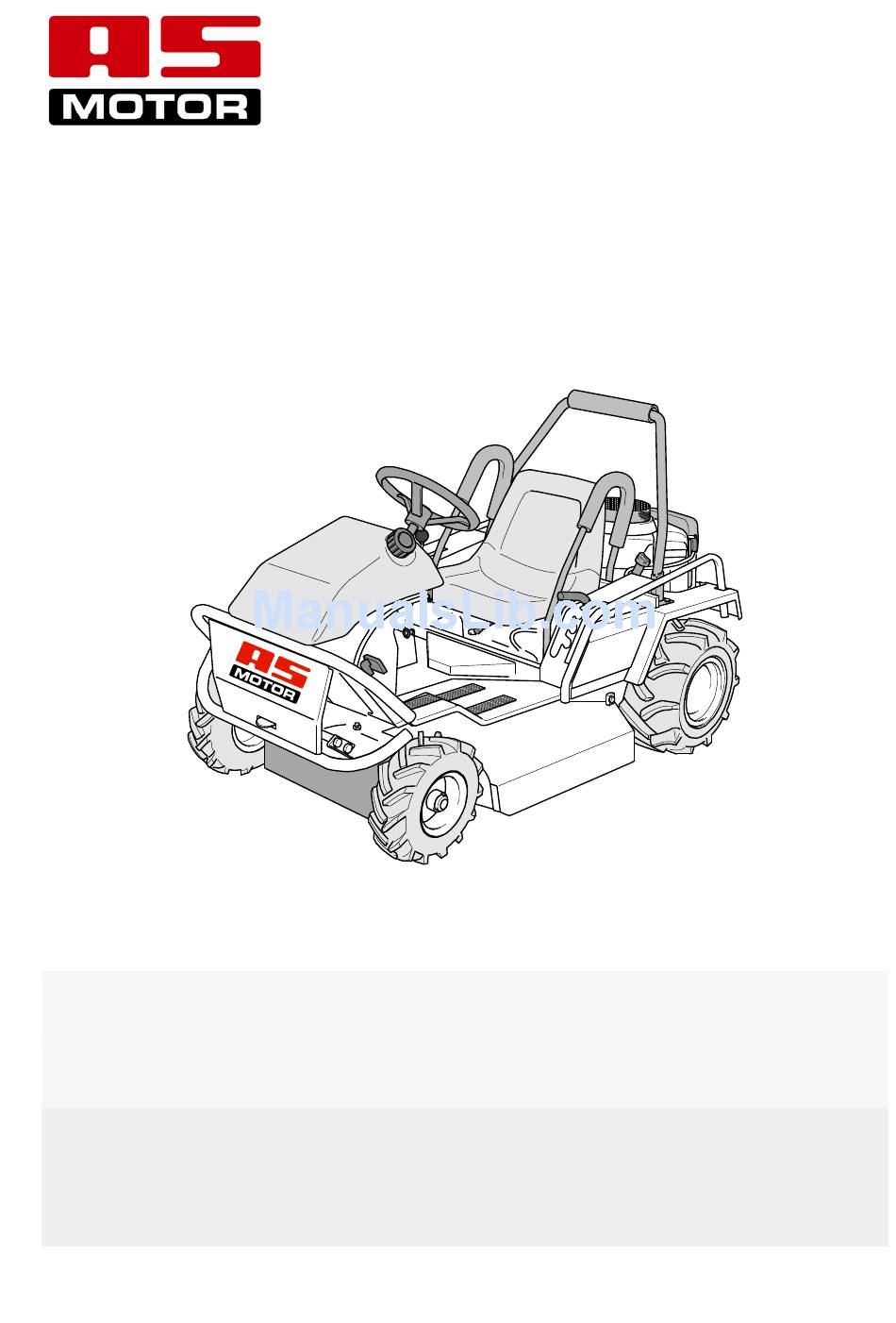

Operating Instructions

Ride-on Allmäher®
AS 900 ENDURO + AS 915 ENDURO
From serial number:
Issued:
EN-Translation of the Original Operating Instructions
AS 900: 021415010001, AS 915: 018215010015
09 April 2015, V21.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS 900 ENDURO and is the answer not in the manual?

Questions and answers

Related Manuals for AS MOTOR AS 900 ENDURO

Summary of Contents for AS MOTOR AS 900 ENDURO

  • Page 1: Operating Instructions

    Operating Instructions Ride-on Allmäher® AS 900 ENDURO + AS 915 ENDURO From serial number: AS 900: 021415010001, AS 915: 018215010015 Issued: 09 April 2015, V21.0 EN-Translation of the Original Operating Instructions...

  • Page 2: Preface

    dummy Preface Intended use The device is exclusively intended for cutting Please fill in all data referring to your device. When ordering spare parts, provide your deal- grass or similar vegetation in agriculture, for- er with the device and engine number. estry, and landscape conservation.

  • Page 3: Table Of Contents

    Contents Oil pressure switch ......... 18 Preface ............. dummy Towing ............18 Intended use ..........Driving ............19 Explanation of the symbols ....Braking ..........19 dummy Inhalts verz eichnis Driving ........... 19 Symbols in the instructions ....Reversing..........19 Symbols on the device ......

  • Page 4: Explanation Of The Symbols

    dummy Inhalts verz eichnis Explanation of the symbols Risk of injury caused by rotating components! Symbols in the instructions In these operating instructions, the following symbols are used to denote special dangers. Danger of bursting while tires are inflated. Observe the admis- Warning.
  • Page 5 Type plate The type plate on the device provides you with information on the device type and the technical data. Warning! Risk of injury caused by rotating blades or parts. Objects can be ejected. Make sure that no Name and address of the manufac- one is within the danger zone of the blade (at turer least 50 metres).

  • Page 6: Safety Instructions

    Safe handling of fuel Safety instructions Get informed! Danger! Fuel is toxic and highly inflamma- For your safety, read these operating instruc- ble. tions with care. Familiarize yourself with the Danger of fire and explosion! control elements and the proper use of the Keep the fuel away from ignition device.

  • Page 7: Check The Device Prior To Use

    – when you drive on surfaces other than In case of skin contact, immediately wash with grass. water and soap. Change your soiled clothing as soon as you can. Switch off the engine and wait until the blade comes to a standstill and remove the ignition Measures in case of a fire key, In case of a fire, use foam, dry powder extin-...
  • Page 8 When mowing slopes, there is a risk of slipping and tilting! max. 20° – Do not mow excessively steep slopes. For The area in front of and to the right of the safety reasons, use the device only on less device is especially dangerous.

  • Page 9: Caution When Using Accessories

    – speeding. – Only transport loads that you can handle safely. – abrupt braking. – Only drive on slopes up to 10°. – an inappropriate task for the device. – Do not take tight corners. – poor knowledge of the area. –...
  • Page 10 – worn or damaged parts were not repaired or replaced on time. – these damages were caused by improper repair. – when changing a part, our original parts or parts authorised by use were not used. – the repair work was not carried out by an authorised service station.

  • Page 11: Device Description

    Device description Figure shows AS 915 ENDURO Impact protection front Tank cap Lateral supports Fuel valve 1 Fuel valve 2 Engine oil filler neck Ventilation grid Fuses circuit protection Side plates impact protection/cover 10 Engine 11 Type plate 12 Support pipe (only AS 915)

  • Page 12: Control Elements

    Ignition lock (5) Control elements The ignition lock has three positions. Front area Ignition off. The key can be re- moved. Ignition on. Control lamp (4) illumi- nates. Electro starter on. leer er Abs atz Brake Differential lock (1) With the left foot pedal, actuate the differential lock.

  • Page 13: Control Lever At Seat

    Accelerator (4) Control lever at seat Via the accelerator, you change the engine speed. Highest speed (full throttle): Press the accelerator all the way down. Lowest speed (idling speed): Pull the accelerator all the way Drive lever (5) The drive lever is required for moving the Cutting height adjustment (1) mower forward, reversing as well as stopping the mower.

  • Page 14: Drive/Idle Mode

    Transport Drive/idle mode To push the mower without engine drive, Transport the device on a freight vehicle or a unlock the drive below the driver seat and trailer which is designed for a carrying capacity release the parking brake. Subsequently, the of at least as great as the empty weight of the mower can only be braked via the foot brake.

  • Page 15: Assembly

    1. Put the device in front of the ramps and Assembly make sure that the ramps – are as wide as the wheel gauge of the Scope of delivery device. – are tightly secured to the platform. The device is shipped in a carton on a pallet. The scope of delivery included: –...

  • Page 16: Information On Mowing

    1. Mount the assembly wheel. (observe the Connecting the battery feather key (1)). Caution! When the battery is connected, there is a risk of short circuit. Do not put tools or metal objects onto the battery. Observe the as- sembly order when connecting and disconnecting the battery.

  • Page 17: Prior To Starting

    Adjusting the seating position Adjust the seat in the longitudinal direction until your feet are positioned on the inclined support plates and you sit comfortably. To avoid blockage during the ejection of grass, we recommend, for flat terrain, to proceed Starting according to the mowing patterns.

  • Page 18: Engaging The Blade

    9. For mowing, set the accelerator lever to Oil pressure switch max. speed. If the engine does not start after 5 seconds, Danger! release the key and wait for approx. If the engine shuts down while you 15 seconds before trying to start the device are mowing, the device can roll again.

  • Page 19: Driving

    Reversing Driving Danger! Danger! Danger of injury when reversing. Mowing on a slope is dangerous. Make sure that your path is clear of There is a risk of tilting and slipping. obstacles and that no other persons Observe the safety instruction for stand behind your device.

  • Page 20: Switching Off And Parking

    Switching off and parking Warning! Risk of injury in case of unauthor- ised use. Always remove the ignition key when you do not use the device. leer er Abs atz 1. Move the drive lever slowly to neutral leer er Abs atz position.

  • Page 21: Maintenance And Cleaning

    Maintenance and cleaning warranty. Operational safety is endangered as Regular maintenance keeps your device ready well. for use. Contact your authorised service centre for If you do not observe the maintenance notices, checkup if you detect problems during mainte- faults may occur that are not covered by the nance.
  • Page 22 ▲ V-belt Are the belts tensioned correctly, without fissures, and in good condition? ■ ▲ Bowden cables Check for proper function and ease of movement. □ ▲ Acceleration lever Check for proper function. ■ ▲ Chassis and im- Check for rust and fissures and check the welding seams. pact protection ■...

  • Page 23: Preparations

    Before and after each use. Annually or every 50 h. ■ By the user when the engine is not running. □ By the user when the engine is running. ▲ By the authorised service centre. Do not clean the device with water spray or leer er Abs atz high-pressure cleaner! Do not use any aggres- Preparations...

  • Page 24: Checking The Parking Brake

    – Hours before the next grease lubrication of Grease lubrication the device (LUBE). The intervals in the maintenance table and in the operating instructions of the engine manu- facturer apply. The specifications for the next engine oil change and the next grease lubrication at the operating hour counter serve only as additional reminder.
  • Page 25 – At least once a year or every 50 operating The cutting blades (2) are reversible blades. hours, regardless of whether there is wear or Reverse both blades not. Material wears out, gets cracks which – when the width (4) of a cutting blade is can endanger persons or property.

  • Page 26: Maintaining The Engine

    – when the width of the cutting blade (4) is Maintaining the engine under 50 mm. – when the thickness of the cutting blade at Danger! any point is below 1 mm (except cutting If the speed of rotation is set too edge).

  • Page 27: Maintaining The Air Filter

    the electrode is not damaged. Never use a charging system. Battery chargers for car damaged spark plug. batteries are not suitable! The charging current must not exceed the Tighten the spark plug using the correct torque (see operating instructions of the engine manu- maximum of 3 ampere, otherwise, the bat- facturer).

  • Page 28: Storage

    Only fill in oil until the oil level has reached the Also observe the notices on storage in the marking of the oil container. attached operating instructions by the engine manufacturer. leer er Abs atz Restarting Storage If you want to start the device after a longer Storing the device storage, carry out the tasks described in chap- ter Maintenance.

  • Page 29: Warranty

    Packaging, device, and accessories are made of recyclable materials and must be disposed of accordingly. leer er Abs atz Warranty The conditions of the warranty can be found on the reverse side of your warranty card. Send the filled-out warranty card immediately after the purchase of your device to “AS-Motor Germany”...

  • Page 30: Troubleshooting

    Troubleshooting The following table contains the most frequent problems and their elimination. If more problems occur, contact the closest authorised service centre. You can find an authorised service centre on our home page www.as-motor.de. Problem Possible cause Remedy – Move drive lever to neutral position. Starter does not turn Safety switches are not actu- ated.
  • Page 31 Spark plugs are sooted, dam- Clean spark plugs and check electrode aged, or incorrect electrode gap (see also Maintenance and clean- gap. ing). Replace spark plugs if necessary. Housing of the mower is See also Maintenance and cleaning. jammed. No oil pressure: Check engine oil level, refill.
  • Page 32 Silencer is defective. Authorised service centre. Engine is smoking Air filter is soiled or drenched Maintain or replace air filter (see also with oil. Maintenance and cleaning). Oil level is too high. Have authorised service centre lower the oil level to the marking. Engine gets hot Ventilation grid is dirty.
  • Page 33 The tires become flat Thorns or sharp objects dam- If necessary, use tire protection gel age the tires. (authorised service centre).

  • Page 34: Technical Data

    Technical data Type AS 900 ENDURO AS 915 ENDURO Range of application (tempera- 0 - 30 °C ture) For temperatures below 5 °C, observe the engine manu- facturer's information regarding the engine oil. Engine, type Two cylinder four stroke engine Manufacturer Briggs &...

  • Page 35: Accessories

    Capacities Fuel tank 15 litres (unleaded regular petrol) Engine oil (see Checking the oil approx. 1.9 litres SAE 30 level) Transmission oil 1.9 litres 80 W90 Oil in hydrostat 1 litres SAE 15W50 or 20W50 Sound level according to DIN EN 12733 Measured sound level L 98,0 dB guaranteed sound level L...

  • Page 36: Declaration Of Conformity

    AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Declaration of conformity We declare that the grassland mower type AS 900 ENDURO with serial number starting from 021415010001 as well as type AS 915 ENDURO with serial number...
  • Page 37 Umbruc h...
  • Page 38 Umbruc h...
  • Page 39 Umbruc h...
  • Page 40 Mar keti ng AS-Motor Germany GmbH & Co. KG Ellwanger Straße 15 D-74424 Bühlertann www.as-motor.de Professional technology for gardens and landscapes Allmäher® Manoeuvrable meadow mower for extensive green area care. The Allmäher reliably shreds metre-high grass, undergrowth, and weeds. Ride-on Allmäher® Ease of use and high area coverage all combined in a compact ride-on mower.
