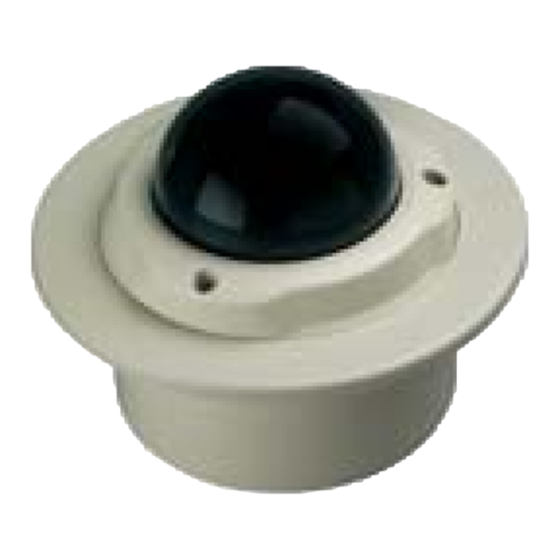

IP Rugged Dome
CAM-7100/CAM-7101

Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAM-7100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACTi CAM-7100

Summary of Contents for ACTi CAM-7100

  • Page 1: Quick Installation Guide

    IP Rugged Dome CAM-7100/CAM-7101 Quick Installation Guide...

  • Page 2: Getting Started

    Getting Started PACKAGE CONTENTS Warranty Card CAM-7100/7101 Software CD Terminal Blocks for Power & DI/O Power Adaptor Accessory...

  • Page 3: Physical Description

    1.2 PHYSICAL DESCRIPTION Rugged Dome Rear Panel WAN port The IP rugged dome connects to the WAN (wide area network) via a standard RJ45 connector. Supporting NWAY, this IP rugged dome can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet). The WAN port is for FTTH and can connect to a xDSL or cable modem.
  • Page 4 the same time. If you do, the IP rugged dome will gets the power from the first power input plugged into it. NOTE: You may find a support package for help you getting familiar with PoE. Please visit our web site, and get the support document TS-00040.
  • Page 5 NAME DESCRIPTION Ground Pin Digital Input Ground Pin Digital Output Camera Dip Switch Hi(ON)(3.3v)
  • Page 6 FL 0FF FL ON BLC ON BLC OFF Auto Iris Super AGC r =0.45 r = 1 SHUTTER SPEED AE/ME 1/50 (1/60) SEC FL OFF 1/120 (1/100) SEC 1/250 SEC FL OFF BLC OFF 1/500 SEC BLC OFF 1/1000 SEC FL OFF AUTO IRIS 1/2000 SEC...
  • Page 7 1.3 CONNECT NECESSARY CABLES The Ethernet cable and power cable are necessary for previewing function. Make sure all cables are correctly and firmly connected. 1. Connect an analog monitor to IP rugged dome video out (BNC connector). 2. Connect the power adaptor to IP rugged dome 3.

  • Page 8: Quick Tour

    Quick Tour This section guides you with a quick tour on IP rugged dome. 2.1 Configure the IP Rugged Dome 2.1.1 Make sure network environment Default IP of IP rugged dome is 192.168.0.100. Please make sure IP rugged dome and your PC are on the same network segment before running the installation.
  • Page 9 2.1.2 Open Internet Explorer with IP address NOTE: If your web browser is earlier than IE6, then download IE6 is recommended. NOTE: The IP rugged dome default IP address is set to 192.168.0.100 2.1.3 Login with default administrator’s account & password NOTE: Default administrator account is set to Admin, password is set to 123456, and click...
  • Page 10 2.1.4 Preview the video NOTE: In your Client PC, please make sure the setting of Network Connections Type is set to Auto Negotation, since IP rugged dome follows MII standard. Otherwise, you might not see the live image.
  • Page 11 2.15 Set the new IP address *Host Name : Enter in the domain name, Default Host Name is ACTi. *Language : Language setting for Web Configurator after Save Reboot. Default setting is English. *IP Address : The IP address of the LAN interface. The default IP address is 192.168.0.100.
  • Page 12 2.1.6 Check Default Video Setting The streaming type [Version 1.0] – without audio function The streaming type [Version 2.0] – with audio function NOTE: Please make sure the TV Input (NTSC / PAL) is meet your requirement, and click button. 2.1.7 Click Save Reboot to restore all settings and please wait about 30 seconds for system reboot.
