3.4
Drive mounting
Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-mounting
holes. See Figure 6 for drive mounting dimensions. Follow these important mounting precautions when mounting the drive:
• Allow a minimum clearance of 0.030 in (0.76mm) around the entire perimeter of the drive for cooling.
• Use only M3 x 0.5 metric mounting screws.
• Four (4) threads (0.080 in) minimum screw engagement recommended.
Also ensure maximum screw length does not bottom out in mounting holes.
• Do not overtighten the mounting screws (maximum torque: 4.5 in-lb, ± 0.45 in-lb).
• Do not cover breather hole on top cover.

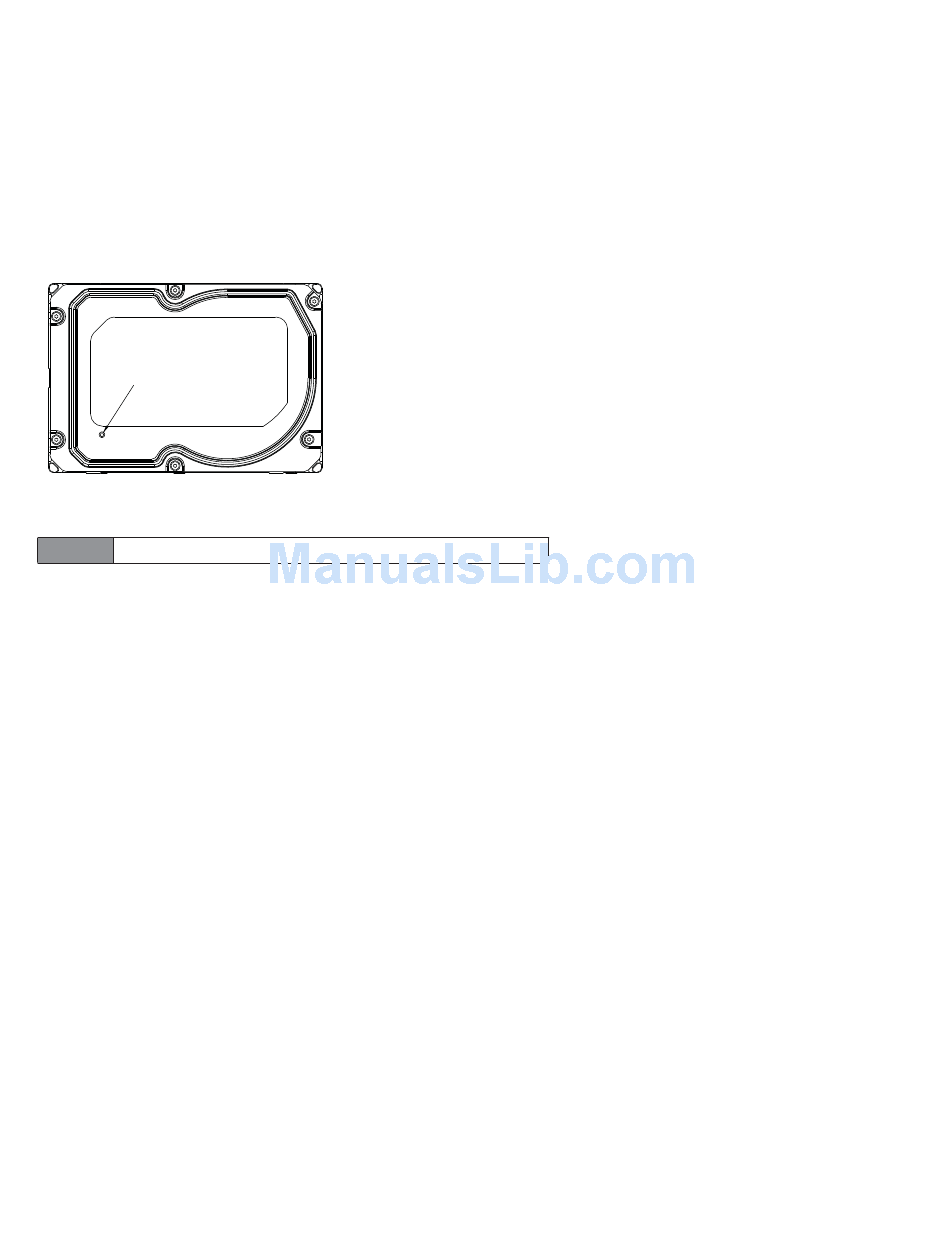

Breather Hole
Do Not
Cover
Figure 5.
Breather hole location - top cover
Image is for reference only, may not represent actual drive
Note
Seagate Enterprise Capacity 2.5 HDD v3 SATA Product Manual, Rev. D
26
