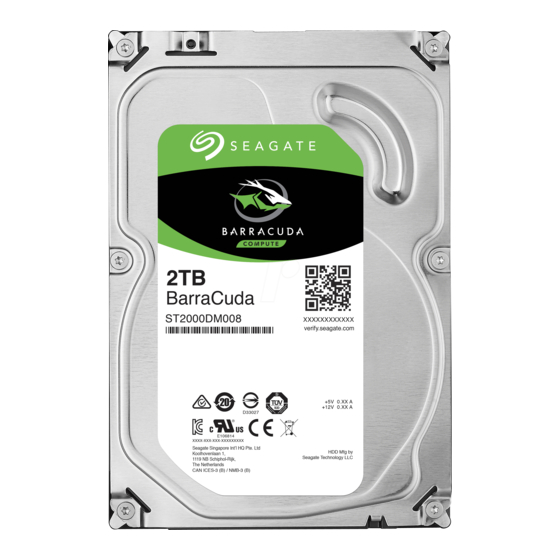

Seagate Barracuda ST2000DM008 Product Manual
  1. Manuals
  2. Brands
  3. Seagate Manuals
  4. Storage
  5. Barracuda ST2000DM008
  6. Product manual

Seagate Barracuda ST2000DM008 Product Manual

Sata
Hide thumbs Also See for Barracuda ST2000DM008:
Table of Contents

Advertisement

Quick Links

SATA Product Manual
Standard models
ST2000DM008
100817550, Rev. D
April 2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Barracuda ST2000DM008 and is the answer not in the manual?

Questions and answers

Related Manuals for Seagate Barracuda ST2000DM008

Summary of Contents for Seagate Barracuda ST2000DM008

  • Page 1 SATA Product Manual Standard models ST2000DM008 100817550, Rev. D April 2018...

  • Page 2: Revision History

    Actual data rates may vary depending on operating environment and other factors. The export or re-export of hardware or software containing encryption may be regulated by the U.S. Department of Commerce, Bureau of Industry and Security (for more information, visit www.bis.doc.gov), and controlled for import and use outside of the U.S. Seagate reserves the right to change, without notice,...

  • Page 3: Table Of Contents

    Corrosive environment ..............18 Seagate BarraCuda Product Manual, Rev. D...
  • Page 4 S.M.A.R.T. commands ............. 30 Seagate BarraCuda Product Manual, Rev. D...
  • Page 5 Mounting dimensions (1-disk models)............20 Seagate BarraCuda Product Manual, Rev. D...
  • Page 6 For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/data-recovery-services/ For Seagate OEM, Distribution partner and reseller portals, visit: http://www.seagate.com/partners/ Seagate BarraCuda Product Manual, Rev. D...

  • Page 7: Introduction

    SATA ports are represented to host software as a Device 0 (master) and Device 1 Note (slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/slave environment manages two sets of shadow registers. This is not a typical SATA environment. Seagate BarraCuda Product Manual, Rev. D...

  • Page 8: Drive Specifications

    Operating temperature (drive case max °C) 60° 20°C per hour max (operating) Temperature gradient 30°C per hour max (non-operating) 5% to 90% (operating) Relative humidity 5% to 95% (non-operating) Relative humidity gradient (max) 30% per hour Seagate BarraCuda Product Manual, Rev. D...
  • Page 9 † Seagate does not recommend operating at sustained case temperatures above 60°C. Operating at higher temperatures will reduce useful life of the product. If the drive is powered-off before issuing flush cache command, in some instances, Note the end user data in the DRAM cache might not be committed to the disk.

  • Page 10: Formatted Capacity

    220 Physical characteristics Maximum height 20.20mm / 0.795 in Maximum width 101.6mm / 4.0 in (± 0.010 in) Maximum length 146.99mm / 5.787 in Typical weight 415g / 0.915 lb Cache buffer 256MB Seagate BarraCuda Product Manual, Rev. D...

  • Page 11: Start/Stop Times

    • Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected noise at up to 10MHz. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current. Note Seagate BarraCuda Product Manual, Rev. D...

  • Page 12: Voltage Tolerance

    If the standby timer reaches zero before any drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all com- mands and returns to Active mode when disk access is necessary. Seagate BarraCuda Product Manual, Rev. D...

  • Page 13: Environmental Specifications

    † Operating (Drive case max °C) 60° (140°F) † Seagate does not recommend operating at sustained case temperatures above 60°C. Operating at higher temperatures will reduce useful life of the product. HDA Temp. Check Point Figure 1 Location of the HDA temperature check point...

  • Page 14: Shock And Vibration

    2.5 bels (typical) 2.7 bels (typical) 2.6 bels (max) 2.8 bels (max) *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. Seagate BarraCuda Product Manual, Rev. D...

  • Page 15: Test For Prominent Discrete Tones (Pdts)

    2.9.1 Test for Prominent Discrete Tones (PDTs) Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389-7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards.

  • Page 16: Agency And Safety Certifications

    Seagate drives are tested in representative end-user systems. Although CE-marked Seagate drives comply with all relevant regulatory requirements and standards for the drives, Seagate cannot guarantee that all system-level products into which the drives are installed comply with all regulatory requirements and standards applicable to the system-level products. The drive is designed for operation inside a properly designed system (e.g., enclosure designed for the drive), with properly shielded I/O cable...

  • Page 17: Morocco Commodity Mark

    2.12.6 Morocco Commodity Mark To satisfy our OEM customers, Seagate has added the Moroccan Commodity Mark to the drives provided to the OEM for the sale of Customer Kits produced by our OEM customers that are intended to be incorporated into the OEM's finished system-level product by an end user.

  • Page 18: Environmental Protection

    2.13.1.1 Restriction of Hazardous Substances in Electrical and Electronic Equipment Seagate drives are designed to be compliant with the European Union RoHS "Recast" Directive 2011/65/EU (RoHS 2) as amended by Directive (EU) 2015/863. The RoHS2 restricts the use of certain hazardous substances such as Lead, Cadmium, Mercury, Hexavalent Chromium, Polybrominated Biphenyls (PBB) and Polybrominated Diphenyl Ether (PBDE), BisBis(2-Ethylhexyl) phthalate (DEHP), Benzyl butyl phthalate (BBP), Dibutyl phthalate (DBP), and Diisobutyl phthalate (DIBP) in electrical and electronic equipment (EEE).

  • Page 19: Taiwan Requirements - Taiwan Rohs

    The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%.

  • Page 20: Configuring And Mounting The Drive

    For installations which require cables, users can connect the drive as illustrated in Figure 2 Figure 2 Attaching SATA cabling Each cable is keyed to ensure correct orientation. Seagate BarraCuda drives support latching SATA connectors. Seagate BarraCuda Product Manual, Rev. D...

  • Page 21: Drive Mounting

    3X 6-32 UNC-2B 3 MINIMUM THREAD DEPTH 0.14 MAXIMUM FASTENER PENETRATION BOTH SIDES Max: .795" or 20.20 mm Alterntive: .783" .012" or 19.90 0.30 mm 4X 6-32 UNC-2B 3 MINIMUM THREAD DEPTH 0.14 MAXIMUM FASTENER PENETRATION Seagate BarraCuda Product Manual, Rev. D...

  • Page 22: Sata Interface

    For detailed information about the SATA interface, refer to the “Serial ATA: High Speed Serialized AT Attachment” specification. Hot-Plug compatibility Seagate BarraCuda drives incorporate connectors which enable users to hot plug these drives in accordance with the SATA Revision 3.2 specification. This specification can be downloaded from www.serialata.org.

  • Page 23: Supported Ata Commands

    Read Native Max Address Extended Read Sectors Read Sectors Extended Read Sectors Without Retries Read Verify Sectors Read Verify Sectors Extended Read Verify Sectors Without Retries Recalibrate Sanitize Security Disable Password Security Erase Prepare Security Erase Unit Seagate BarraCuda Product Manual, Rev. D...
  • Page 24 Write FPDMA Queued Write DMA Without Retries Write Log Extended Write Log DMA Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Uncorrectable Seagate BarraCuda Product Manual, Rev. D...

  • Page 25: Identify Device Command

    15 Shall be cleared to zero 4000 14 Shall be set to one 13:1 Reserved for the Trusted Computing Group 0 Trusted Computing feature set is supported Standard Standby timer, IORDY supported and may be disabled 2F00 Seagate BarraCuda Product Manual, Rev. D...
  • Page 26 0078 Recommended multiword DMA transfer cycle time per word (120 nsec) 0078 Minimum PIO cycle time without IORDY flow control (240 nsec) 0078 Minimum PIO cycle time with IORDY flow control (120 nsec) 0078 Seagate BarraCuda Product Manual, Rev. D...
  • Page 27 Total number of user-addressable LBA sectors available (see Section 2.2 for related 100–103 information). These words are required for drives that support the 48-bit ST2000DM008 = 3,907,029,168 addressing feature. Maximum value: 0000FFFFFFFFFFFFh. 104-105 ATA-reserved 0000 Physical sector size / logical sector size 6003 Seagate BarraCuda Product Manual, Rev. D...
  • Page 28 Integrity word xxA5 Advanced Power Management (APM) and Automatic Acoustic Note Management (AAM) features are not supported. See the bit descriptions below for words 63, 84, and 88 of the Identify Drive data. Note Seagate BarraCuda Product Manual, Rev. D...
  • Page 29 Ultra DMA mode 2 is currently active. Ultra DMA mode 3 is currently active. Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Seagate BarraCuda Product Manual, Rev. D...

  • Page 30: Set Features Command

    Disable use of SATA features Enable read look-ahead (read cache) feature (default) Report full capacity available At power-on, or after a hardware or software reset, the Note default values of the features are as indicated above. Seagate BarraCuda Product Manual, Rev. D...

  • Page 31: Commands

    S.M.A.R.T. Enable Operations S.M.A.R.T. Disable Operations S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the Note command is aborted and 0x04 (abort) is written to the Error register. Seagate BarraCuda Product Manual, Rev. D...
  • Page 32 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100817550, Rev. D...
