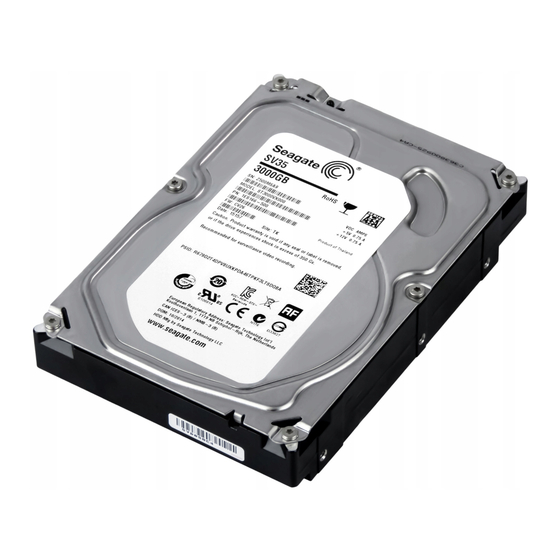

Seagate SV35 Series Product Manual

Sv35 series
Hide thumbs Also See for SV35 Series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Product Manual
Product Manual
SV35 Series
ST3000VX000
ST2000VX000
ST1000VX000
100687219
Rev. C
June 2012
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV35 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Seagate SV35 Series

Summary of Contents for Seagate SV35 Series

  • Page 1 Product Manual SV35 Series ST3000VX000 ST2000VX000 ST1000VX000 100687219 Rev. C June 2012...
  • Page 2 In addition, some of the listed capacity is used for formatting and other functions, and thus will not be available for data storage. Seagate reserves the right to change, without notice, product offerings or...

  • Page 3: Table Of Contents

    Seagate Technology Support Services ........
  • Page 4 SV35 Series SATA Product Manual, Rev. C...
  • Page 5 Mounting dimensions (1-Disk: 1TB) ......... . . 25 SV35 Series SATA Product Manual, Rev. C...
  • Page 6 SV35 Series SATA Product Manual, Rev. C...

  • Page 7: Seagate Technology Support Services

    • Authorized Service Centers For information regarding Warranty Support, visit http://www.seagate.com/www/en-us/support/warranty_&_returns_assistance For information regarding data recovery services, visit http://www.i365.com For Seagate OEM and Distribution partner portal, visit https://direct.seagate.com/portal/system For Seagate reseller portal, visit http://spp.seagate.com SV35 Series SATA Product Manual, Rev. C...
  • Page 8 SV35 Series SATA Product Manual, Rev. C...

  • Page 9: Introduction

    • Full-track multiple-sector transfer capability without local processor intervention • Seagate AcuTrac™ servo technology delivers dependable performance,even with hard drive track widths of only 75 nanometers. • Seagate OptiCache™ technology boosts overall performance by as much as 45% over the previous generation. • Quiet operation •...
  • Page 10 Shadow Register Block. All SATA devices behave like Device 0 devices. For additional information about how SATA emulates parallel ATA, refer to the “Serial ATA International Organization: Serial ATA Revision 3.0.” The specification can be downloaded from www.sata-io.org. SV35 Series SATA Product Manual, Rev. C...

  • Page 11: Drive Specifications

    Power-on to ready (max) <17.0s <17.0s <10.0s Standby to ready (max) <17.0s <17.0s <10.0s Average seek, read (typical) <8.5ms typical <8.5ms (read) <8.5ms (read) Average seek, write (typical) <9.5ms typical <9.5ms (write) <9.5ms (write) SV35 Series SATA Product Manual, Rev. C...
  • Page 12 * *During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. *** All specifications above are based on native configurations. SV35 Series SATA Product Manual, Rev. C...

  • Page 13: Formatted Capacity

    Spindle speed (RPM) 7200 ± 0.2% Internal data transfer rate (Mb/s max) 2147 Maximum sustained data transfer rate, OD read (MB/s ) Average data rate, read/write (MB/s) I/O data-transfer rate (MB/s max) SV35 Series SATA Product Manual, Rev. C...

  • Page 14: Physical Characteristics

    10 (typical) 10 (typical) 10 (typical) (in seconds) 11 (max) 11 (max) 11 (max) Time-to-ready may be longer than normal if the drive power is removed without going through normal OS powerdown procedures. SV35 Series SATA Product Manual, Rev. C...

  • Page 15: Power Specifications

    0.005 Sleep 0.75 0.136 0.005 * During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels. † DIPLM Enabled SV35 Series SATA Product Manual, Rev. C...

  • Page 16: Conducted Noise

    • Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected noise at up to 10MHz. Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current. Note SV35 Series SATA Product Manual, Rev. C...

  • Page 17: Voltage Tolerance

    If the standby timer reaches zero before any drive activity is required, the drive makes a transition to Standby mode. In both Idle and Standby mode, the drive accepts all commands and returns to Active mode when disk access is necessary. SV35 Series SATA Product Manual, Rev. C...

  • Page 18: Environmental Specifications

    The non-operating shock level that the drive can experience without incurring physical damage or degradation in performance when subsequently put into operation is 300 Gs based on a non-repetitive half-sine shock pulse of 2 ms duration. SV35 Series SATA Product Manual, Rev. C...

  • Page 19: Non-Operating Vibration

    Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses this threshold curve (originated in ISO 389- 7) to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards.

  • Page 20: Electromagnetic Immunity

    From this page, click on the “Verify Your Warranty” link. You will be asked to provide the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for your drive. SV35 Series SATA Product Manual, Rev. C...

  • Page 21: Agency Certification

    As a subassembly, no Federal Communications Commission verification or certification of the device is required. Seagate has tested this device in enclosures as described above to ensure that the total assembly (enclosure, disk drive, motherboard, power supply, etc.) does comply with the limits for a Class B computing device, pursuant to Subpart J, Part 15 of the FCC rules.

  • Page 22: Environmental Protection

    The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%.

  • Page 23: Configuring And Mounting The Drive

    For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive and the host receptacle incorporate features that enable the direct connection to be hot pluggable and blind mateable. For installations which require cables, you can connect the drive as illustrated in Figure 1 SV35 Series SATA Product Manual, Rev. C...

  • Page 24: Drive Mounting

    • The screws should be inserted no more than 0.150 inch (3.81mm) into the bottom or side mounting holes. • Do not overtighten the mounting screws (maximum torque: 6 inch-lb). Figure 2 Mounting dimensions (3-disk: 3TB and 2TB models) Temperature Check Point SV35 Series SATA Product Manual, Rev. C...
  • Page 25 Configuring and Mounting the Drive Figure 3 Mounting dimensions (1-Disk: 1TB) Temperature Check Point SV35 Series SATA Product Manual, Rev. C...
  • Page 26 Configuring and Mounting the Drive www.seagate.com SV35 Series SATA Product Manual, Rev. C...

  • Page 27: Sata Interface

    Segment Pin Function Definition Ground 2nd mate Differential signal pair A from Phy Ground 2nd mate Differential signal pair B from Phy Signal Ground 2nd mate Key and spacing separate signal and power segments SV35 Series SATA Product Manual, Rev. C...

  • Page 28: Supported Ata Commands

    See “S.M.A.R.T. commands” on page 35 for details and subcommands used in the S.M.A.R.T. implementation. Command name Command code (in hex) Check Power Mode Configure Stream Device Configuration Freeze Lock / C1 Device Configuration Identify / C2 Device Configuration Restore / C0 Device Configuration Set / C3 SV35 Series SATA Product Manual, Rev. C...
  • Page 29 Read Stream Extended Read Verify Sectors Read Verify Sectors Extended Read Verify Sectors Without Retries Recalibrate Security Disable Password Security Erase Prepare Security Erase Unit Security Freeze Security Set Password Security Unlock Seek Set Features SV35 Series SATA Product Manual, Rev. C...
  • Page 30 Write DMA Without Retries Write Log Extended Write Multiple Write Multiple Extended Write Multiple FUA Extended Write Sectors Write Sectors Without Retries Write Sectors Extended Write Stream DMA Extended Write Stream Extended Write Uncorrectable SV35 Series SATA Product Manual, Rev. C...

  • Page 31: Identify Device Command

    Words 54–58, 64–70 and 88 are valid 0007 Number of current logical cylinders xxxx Number of current logical heads xxxx Number of current logical sectors per logical track xxxx 57–58 Current capacity in sectors xxxx SV35 Series SATA Product Manual, Rev. C...
  • Page 32 Command sets enabled BE09 Command sets enable extension 4163 Ultra DMA support and current mode (see note following xx7F this table) Security erase time 0039 Enhanced security erase time 0039 Master password revision code FFFE SV35 Series SATA Product Manual, Rev. C...
  • Page 33 Streaming feature set is supported. GPL feature set is supported. WRITE DMA FUA EXT and WRITE MULTIPLE FUA EXT commands are supported. WRITE DMA QUEUED FUA EXT command is supported. 64-bit World Wide Name is supported. SV35 Series SATA Product Manual, Rev. C...

  • Page 34: Set Features Command

    Set PIO mode to default (PIO mode 2). Set PIO mode to default and disable IORDY (PIO mode 2). PIO mode 0 PIO mode 1 PIO mode 2 PIO mode 3 PIO mode 4 (default) Multiword DMA mode 0 SV35 Series SATA Product Manual, Rev. C...

  • Page 35: Commands

    S.M.A.R.T. command S.M.A.R.T. Read Data S.M.A.R.T. Enable/Disable Attribute Autosave S.M.A.R.T. Save Attribute Values S.M.A.R.T. Execute Off-line Immediate (runs DST) S.M.A.R.T. Read Log Sector S.M.A.R.T. Write Log Sector S.M.A.R.T. Enable Operations S.M.A.R.T. Disable Operations SV35 Series SATA Product Manual, Rev. C...
  • Page 36 Code in features register S.M.A.R.T. command S.M.A.R.T. Return Status If an appropriate code is not written to the Features Register, the command is aborted and 0x 04 (abort) Note is written to the Error register. SV35 Series SATA Product Manual, Rev. C...
  • Page 37 SATA Interface SV35 Series SATA Product Manual, Rev. C...
  • Page 38 SATA Interface www.seagate.com SV35 Series SATA Product Manual, Rev. C...
  • Page 39 14 Electromagnetic compatibility 21 LBA mode 13 Electromagnetic Compatibility (EMC) 21 length 14 Electromagnetic Compatibility control Regulation 21 logical geometry 13 Electromagnetic Compatibility Directive (2004/108/EC) master/slave 10 Electromagnetic immunity 20 mounting 24 SV35 Series SATA Product Manual, Rev. C...
  • Page 40 Recording technology 13 relative humidity 18 technical support services 37 Reliability 20 temperature 14, 18 RF 20 temperature gradient 18 RMS read/write current 16 timer 17 RoHS 22 timers 17 RRL 21 track density 13 SV35 Series SATA Product Manual, Rev. C...
  • Page 41 Write DMA Without Retries 30 Write Log Extended 30 Write Multiple 30 Write Multiple Extended 30 Write Multiple FUA Extended 30 Write Sectors 30 Write Sectors Extended 30 Write Sectors Without Retries 30 SV35 Series SATA Product Manual, Rev. C...
  • Page 43 ASIA/PACIFIC Seagate Singapore International Headquarters Pte. Ltd. 7000 Ang Mo Kio Avenue 5, Singapore 569877, 65-6485-3888 EUROPE, MIDDLE EAST AND AFRICA Seagate Technology SAS 16-18 rue du Dôme, 92100 Boulogne-Billancourt, France, 33 1-4186 10 00 Publication Number: 100687219, Rev. C...

This manual is also suitable for:

St3000vx000St2000vx000St1000vx000
