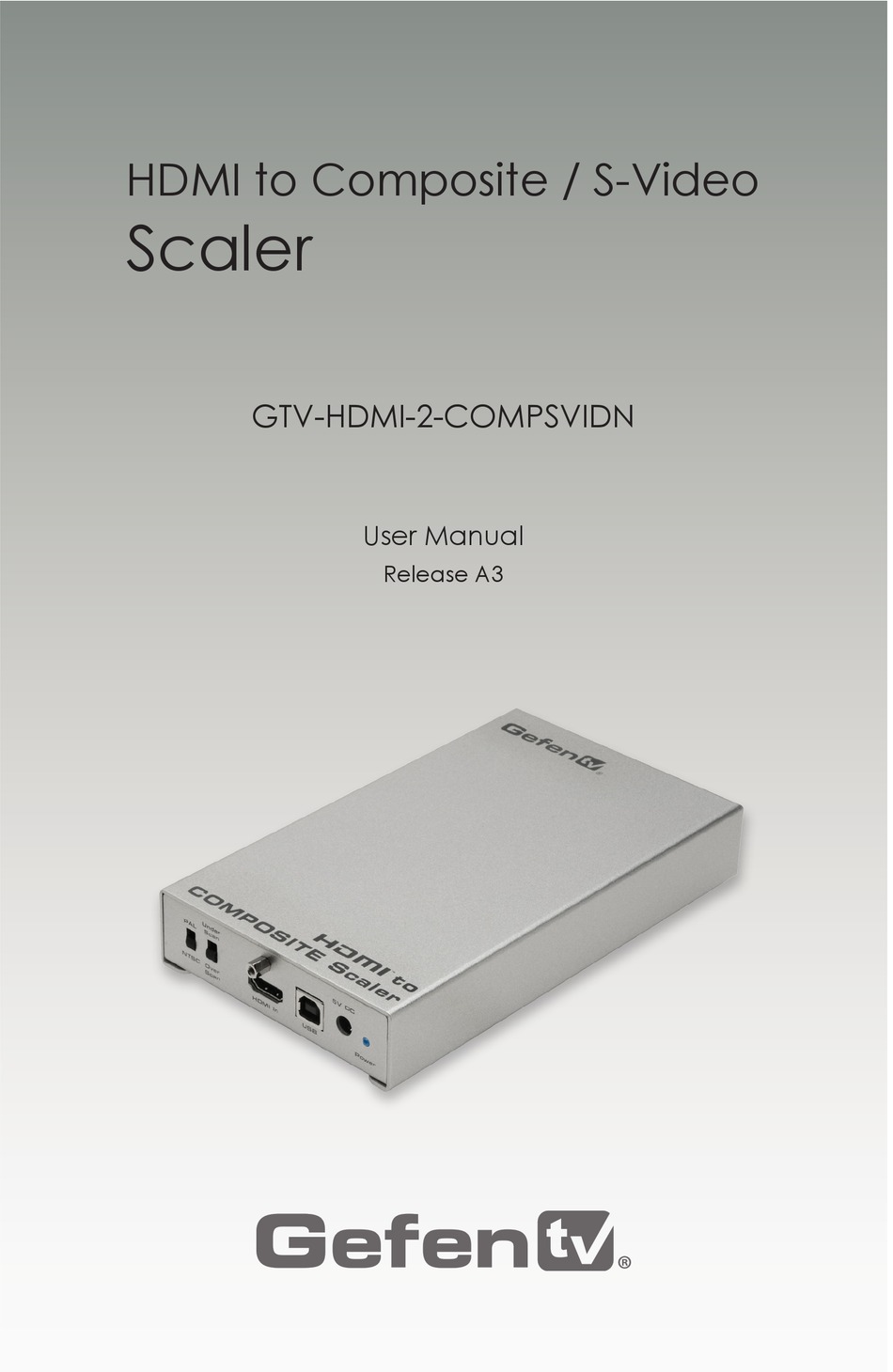

- Page 1 HDMI to Composite / S-Video 3GSDI Audio Scaler Embedder GTV-HDMI-2-COMPSVIDN User Manual Release A3...
-
Page 2: Important Safety Instructions
HDMI to Composite / S-Video Scaler Important Safety Instructions GENERAL SAFETY INFORMATION Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 3: Warranty Information
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications. - Page 4 HDMI to Composite / S-Video Scaler is a trademark of Gefen, LLC. Important Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. © 2013 Gefen, LLC. All Rights Reserved.
- Page 5 HDMI to Composite / S-Video Scaler Operating Notes • The HDMI To Composite/S-Video Scaler converts HDTV input resolutions of 480p@50 / 60Hz, 576p@50 / 60Hz, 480i@50 / 60Hz, 576i@50 / 60Hz, 720p@50 / 60Hz, 1080i and 1080p at 50/60Hz to either NTSC 480i or PAL 576i. •...
-
Page 6: Packing List
The HDMI to Composite / S-Video Scaler ships with the items listed below. If any of these items are not present in your box when you first open it, immediately contact your dealer or Gefen. • 1 x HDMI To Composite / S-Video Scaler •... -
Page 8: Table Of Contents
3GSDI Audio Embedder HDMI to Composite / S-Video Scaler Table of Contents Getting Started Panel Layout ......................2 Front ......................2 Back ......................3 Installation ......................4 Connecting the HDMI to Composite / S-Video Scaler ........4 Sample Wiring Diagram ................4 Operating the HDMI to Composite / S-Video Scaler Configuration ...................... -
Page 11: 01 Getting Started
HDMI to Composite / S-Video Scaler 01 Getting Started Panel Layout ......................2 Front ......................2 Back ......................3 Installation ......................4 Connecting the HDMI to Composite / S-Video Scaler ........4 Sample Wiring Diagram ................4... -
Page 12: Panel Layout
Getting Started Panel Layout Front Name Description R / L Connect two RCA-type cables from these outputs to the display, audio amplifier, or A/V receiver. See Supported Audio Formats for a list of available audio output formats. Composite Connect an RCA-type cable from this output to the Composite input on the display or A/V receiver. -
Page 13: Back
Getting Started Panel Layout Back Name Description PAL / NTSC Switches between NTSC and PAL output. Make sure that you use the proper output for the television. Using the wrong format will result in a unrecognizable picture and may damage your television. See NTSC and PAL Modes for details. -
Page 14: Installation
Getting Started Installation Connecting the HDMI to Composite / S-Video Scaler Connect the included HDMI cable from the Hi-Def source to the HDMI connector of the HDMI to Composite / S-Video Scaler. Connect a Composite cable (RCA-type) between the HDMI to Composite / S-Video Scaler and the Composite input on the display or A/V receiver. -
Page 17: Operating The Hdmi To Composite / S-Video Scaler
HDMI to Composite / S-Video Scaler 02 Operating the HDMI to Composite / S-Video Scaler Configuration ......................8 Underscan and Overscan Modes ..............8 NTSC and PAL Modes ................10 Supported Audio Formats ................11... -
Page 18: Configuration
Operating the HDMI to Composite / S-Video Scaler Configuration Underscan and Overscan Modes • Over Scan Scales the image beyond the normal display area. Set the Under Scan / Over Scan switch to the Over Scan position to correct an image that is displayed under the limits of the vertical and horizontal display area. - Page 19 Operating the HDMI to Composite / S-Video Scaler Configuration • Under Scan Set the Under Scan / Over Scan switch to the Under Scan position to correct an image that is displayed beyond the limits (shown in blue) of the vertical and horizontal display area.
-
Page 20: Ntsc And Pal Modes
Operating the HDMI to Composite / S-Video Scaler Configuration NTSC and PAL Modes When connecting the HDMI to Composite / S-Video Scaler between a source and a display, it is important to know which broadcast standard is being used in your region. Set the NTSC / PAL switch to the appropriate format. -
Page 21: Supported Audio Formats
Operating the HDMI to Composite / S-Video Scaler Configuration Supported Audio Formats Both the Coax and R / L audio outputs on the HDMI to Composite / S-Video Scaler are active at all times. This allows both audio outputs to be used at the same time. However, only 2-channel LPCM is supported on the R / L audio output. -
Page 23: 03 Appendix
HDMI to Composite / S-Video Scaler 03 Appendix Firmware Upgrade Procedure ................14 Specifications ...................... 15... -
Page 24: Firmware Upgrade Procedure
Computer running Windows® XP or better. • USB cable (A-B) Download the firmware upgrade from the Support section of the Gefen Web site. Power-OFF the HDMI to Composite / S-Video Scaler. It is unnecessary to disconnect any cables from the HDMI to Composite / S-Video Scaler during the upgrade process. -
Page 25: Specifications
Appendix Specifications Supported Formats Audio (input) • 2-channel LPCM • Multichannel LPCM • Dolby® Digital • DTS® Video (input) • 480i / 60 Hz • 576i / 50 Hz • 480p / 60 Hz • 576p / 50 Hz • 720p / 50 or 60 Hz •... - Page 26 Appendix Specifications Operational Horizontal Frequency Range • 31 - 70 kHz Vertical Frequency Range • 50 - 60 Hz Power Input • 1 x 5V DC Power Consumption • 7.5W (max.) Physical Dimensions (W x H x D) • 4.1” x 1.2” x 7.1” (104mm x 30mm x 180mm) Unit Weight •...
