- Page 1 HDMI to HDMI Plus Audio Converter GTV-HDMI-2-HDMIAUD User’s Manual www.gefentv.com...
- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. GefenTV HDMI to HDMI Plus Audio Converter is a trademark of Gefen, LLC HDMI, the logo, and High-Defi...
-
Page 3: Table Of Contents
CONTENTS Introduction Features Connecting The HDMI To HDMI Plus Audio Converter Supported Audio Formats Audio Processing Panel Layout Panel Descriptions Specifi cations Warranty... -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the GefenTV HDMI to HDMI Plus Audio Converter. Your complete satisfaction is very important to us. GefenTV GefenTV is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware. -
Page 5: Features
FEATURES Features • Resolution Supported up to 1080p Full HD • Switchable selection between Auto mode and Manual mode • HDMI v1.3 supported features: Deep Color, Dolby TrueHD, DTS-HD Master Audio, Lip Sync (through the HDMI connector only) • Bitstream Audio via Optical Toslink and LPCM 7.1 via 8 RCA connectors •... -
Page 6: Connecting The Hdmi To Hdmi Plus Audio Converter
CONNECTING THE HDMI TO HDMI PLUS AUDIO CONVERTER How to Connect the GefenTV HDMI to HDMI Plus Audio Converter Connect a Hi Def source to the GefenTV HDMI to HDMI Audio Converter’s input with the included HDMI cable. Connect another HDMI cable from the output of the Converter to an HDTV display. -
Page 7: Supported Audio Formats
SUPPORTED AUDIO FORMATS The Audio Selector Switches The audio output supports uncompressed LPCM 7.1 and lossless compressed digital Bitstream (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio). There are two switches on the front of the unit to the right of the power LED. (See Panel Layout and Description on pages 6 and 7.) The switch at the left makes changes to the input audio and the right switch changes from “Auto”... -
Page 8: Audio Processing
AUDIO PROCESSING Audio Mode Selection: AUTO MODE: To use this mode, set the switch on the front panel to the AUTO position. The converter will output the highest common video resolution and audio capability according to the EDID data it retrieves from the connected display device. MANUAL MODE To use this mode, set the Switch on the front panel to the MANUAL position. -
Page 9: Panel Layout

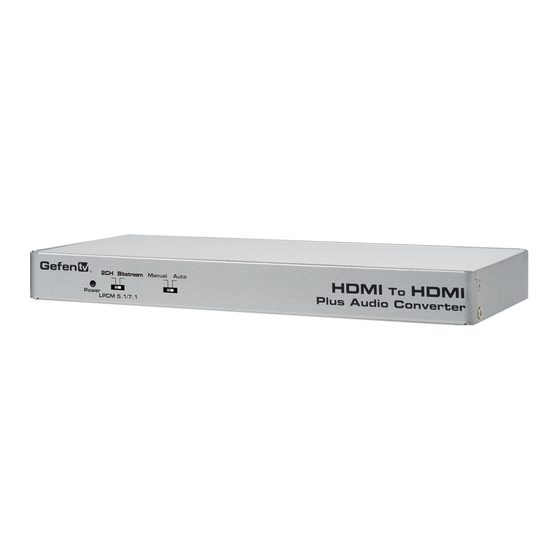

PANEL LAYOUT Front Panel Back Panel... -
Page 10: Panel Descriptions
PANEL DESCRIPTIONS Power LED When the LED is lit it shows that the unit is powered. 2.1 / 5.1 -7.1 / Bit Stream Switch This enables the 3-way choice between 2.1, 5.1 and 7.1, and bit stream audio (when in manual mode only) . Mode Switch This switch will toggle between MANUAL and AUTO modes. -
Page 11: Specifi Cations
SPECIFICATIONS Digital Video Amplifi er Bandwidth..............225 MHz Maximum Resolutions..............1080p, 1920 x 1200 HDMI Input..................1 x HDMI 19-pin HDMI Output..................1 x HDMI 19-pin Digital Audio output................1 x TOSLINK Analog Audio Outputs.................8 x RCA Power Supply..................5V I 2.6A DC Power Consumption.................13 Watts (max) Operating Temperature................0 - 40 °C Dimensions................10.25”W x1”H x 4.25”D Shipping Weight....................4 lbs... -
Page 12: Warranty
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 13 Rev A2 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefentv.com support@gefentv.com This product uses UL listed power supplies.
