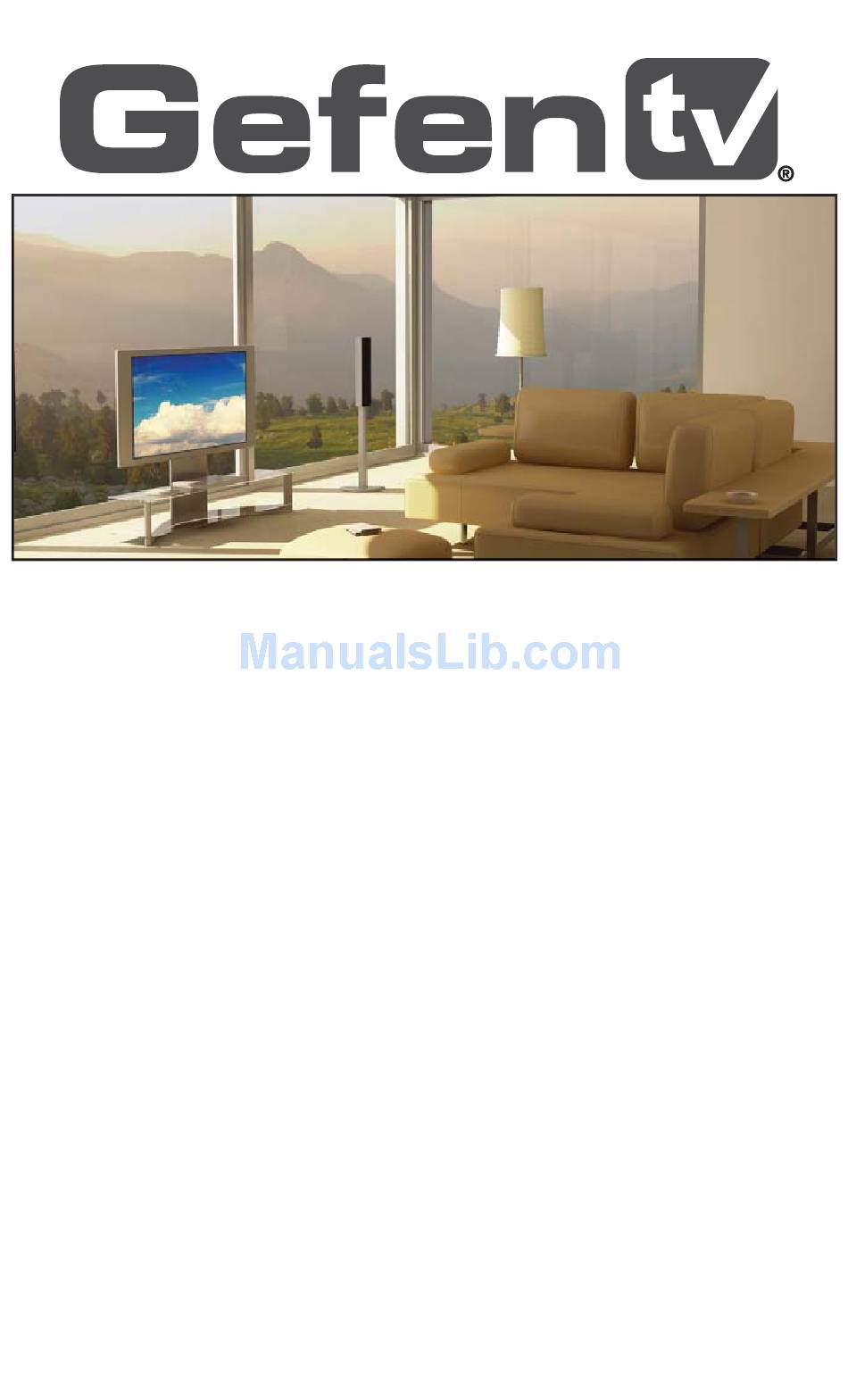

- Page 1 Composite to HDMI Scaler GTV-COMPSVID-2-HDMIS User Manual gefentv.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging, and any accompanying doc u men ta tion without prior written notice. Composite to HDMI Scaler is a trademark of Gefen, LLC © 2012 Gefen, LLC. All rights reserved All trademarks are the property of their respective companies.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Description Connecting And Operating The Composite to HDMI Scaler Confi guring The Composite to HDMI Scaler 12 Specifi cations 13 Warranty... -
Page 4: Introduction
Gefen TV Gefen TV is a unique product line catering to the growing needs for innovative home theater solutions. We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE COMPOSITE TO HDMI SCALER • The Composite to HDMI Scaler will cross convert between some digital and audio formats. All audio outputs (HDMI, digital TOSLINK®, and analog stereo mini-jack) will be active. The Composite & S-video to HDMI Scaler will not, however, down-mix multi-channel audio formats to 2 channel analog stereo. -
Page 6: Features
FEATURES Features • Inputs S-Video or Composite Video at 480i or 576i resolutions • Outputs HDMI video at resolutions of up to 1080p • Input resolution is automatically detected while the output resolution and refresh rate can be selected via the on-screen display (OSD) menu system and front panel push-buttons •... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Description
PANEL DESCRIPTION TOSLINK® Audio Output Digital TOSLINK® audio output. This port is constantly active. It will output 2 channel PCM, Dolby® Digital, and DTS formats. Output format is dependant on the chosen input format which can be selected through the on-screen GUI. R/L Analog Audio Stereo analog mini-jack output for analog audio. -
Page 9: Connecting And Operating The Composite To Hdmi Scaler
CONNECTING AND OPERATING THE COMPOSITE TO HDMI SCALER How to Connect the Composite to HDMI Scaler Connect the composite or s-video source to the scaler using user supplied cables. Connect the audio source (digital or analog) to the scaler using user supplied cables. -
Page 10: Confi Guring The Composite To Hdmi Scaler
EDID. If an image is still not being displayed, it is possible that either the display’s EDID is corrupt or the Composite to HDMI Scaler cannot output the display’s native resolution. Please call Gefen’s technical support line. Navigation Navigation of the GUI is accomplished using the front panel buttons. Please see the chart below for the functions of each panel button. - Page 11 CONFIGURING THE COMPOSITE TO HDMI SCALER MAIN MENU The following are the main menu options. Use the - and + buttons to choose your desired subcategory and press Menu to enter it. CONTRAST BRIGHTNESS FINE TUNE COLOR OUTPUT AUDIO INFORMATION CONTRAST Press the - and + buttons to select the CONTRAST option and press the MENU button to select it.
- Page 12 CONFIGURING THE COMPOSITE TO HDMI SCALER COLOR Press the MENU button to select the COLOR option. There are several sub- categories that are available for adjustment. Select the desired option using the - and + buttons and press the MENU button to begin adjustment. Use the - and + buttons to adjust the selected option and press the MENU button when you are fi...
- Page 13 CONFIGURING THE COMPOSITE TO HDMI SCALER OUTPUT Press the - and + buttons to select the OUTPUT option and press the MENU button to select it.. There are several sub-options that are available for selection. Select the desired option using the - and + buttons and press the MENU button to select it and exit.
- Page 14 CONFIGURING THE COMPOSITE TO HDMI SCALER FACTORY RESET This option will reset the entire unit to factory settings. Press the MENU button to select the FACTORY RESET option. Press the MENU button once and a confi rmation will appear with the word YES. Press the MENU button once more to confi...
-
Page 15: Specifications
SPECIFICATIONS Digital Video Amplifi er Bandwidth ............165 MHz VGA Amplifi er Bandwidth ................10 MHz Input DDC Signal ................. 5 Volts p-p (TTL) S-Video Connector ................... Mini-DIN Composite Connector ................RCA Jack Power Consumption ............... 10 Watts (max) Power Supply ....................5V DC Dimensions ................ -
Page 16: Specifi Cations
Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi... - Page 17 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL or CE listed power supplies.
