Summary of Contents for Gefen GEF-HDMI1.3-2-3GSDI

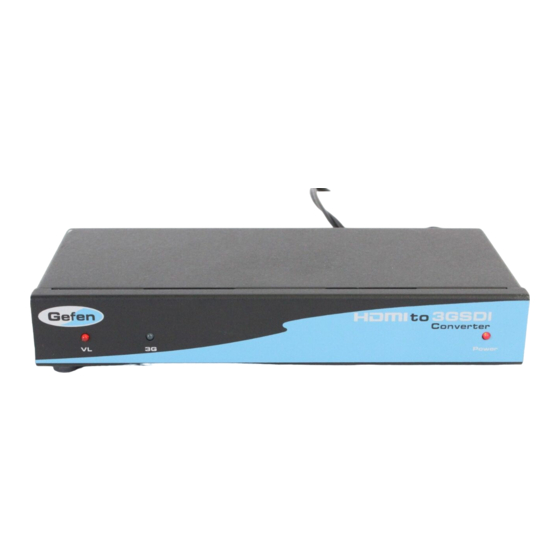

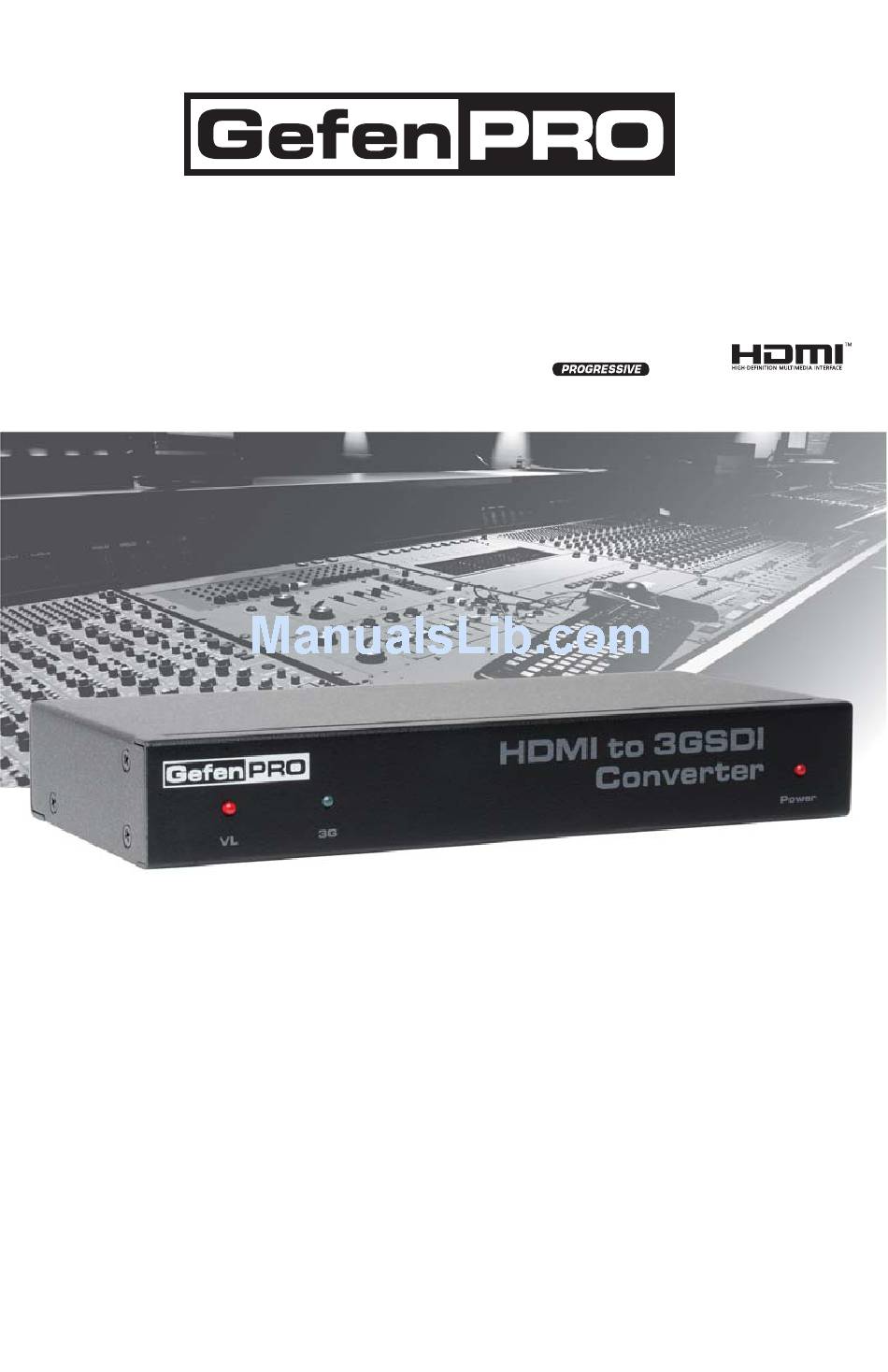

- Page 1 1080P HDMI 1.3 to 3G-SDI Converter GEF-HDMI1.3-2-3GSDI User Manual www.gefenPRO.com...
- Page 2 Notice Gefen, LLC. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. GefenPRO HDMI 1.3 to 3GSDI Converter is a trademark of Gefen, LLC.
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Bottom Panel Layout Bottom Panel Descriptions Connecting And Operating The HDMI 1.3 To 3GSDI Converter DIP Switch Features 10 Specifi cations 11 Warranty... -
Page 4: Introduction
Congratulations on your purchase of the GefenPRO HDMI 1.3 to 3GSDI Converter. Your complete satisfaction is very important to us. Gefen Gefen delivers innovative, progressive computer and electronics add-on solutions that harness integration, extension, distribution and conversion technologies. Gefen’s reliable, plug-and-play products supplement cross-platform computer systems, professional audio/video environments and HDTV systems of all sizes with hard-working solutions that are easy to implement and simple to operate. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE GEFENPRO HDMI 1.3 TO 3GSDI CONVERTER • The Converter is compliant to SD/HD SDI SMPTE 292M, SMPTE 274M, SMPTE 259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601 • The Converter handles 3G-SDI SMPTE 425-A and 425-B / formats 1080P 50/59.94/60 •... -
Page 6: Features
FEATURES Features • The Converter is plug and play. Additional confi guration is available via built- in bank of DIP switches underneath the unit • Firmware is upgradable in the fi eld using the integrated USB port • Integrated 720p 60Hz test pattern is available for use without the need of a video/audio input signal •... -
Page 7: Panel Layout
PANEL LAYOUT Front Panel Back Panel... -
Page 8: Panel Descriptions
USB Update Port This port is used to update fi rmware. For current fi rmware releases, please see the download section at www.gefen.com. Analog RCA L+R Audio Ouput This input will output the fi rst two (2) channels of analog audio extracted from the digital HDMI input source on RCA style L+R analog audio connectors. -
Page 9: Bottom Panel Layout
BOTTOM PANEL LAYOUT Bottom Panel... -
Page 10: Bottom Panel Descriptions
BOTTOM PANEL DESCRIPTIONS HDCP LED Indicator This LED indicator will relay the status of the incoming HDMI’s HDCP status. Options are either HDCP encrypted (LED ON) or No HDCP present (LED OFF). NOTE: In accordance with HDCP regulations, HDCP encrypted HDMI sources will not be converted to SDI output formats. - Page 11 CONNECTING & OPERATING THE GEFENPRO HDMI 1.3 TO 3GSDI CONVERTER How to Connect the HDMI to 3GSDI Converter Connect the HDMI 1.3 source to the HDMI input of the HDMI to 3GSDI Converter using the supplied HDMI cable. Optionally connect a two channel analog audio device to the RCA style L+R analog audio connectors for monitoring of the audio from the HDMI input.
-
Page 12: Dip Switch Features
DIP SWITCH FEATURES The DIP switch feature panel is located on the underside of the HDMI to 3GSDI Converter. Please use the diagram and chart below to confi gure the DIP switch settings. Adjustments should be made with a small pointed object such as a toothpick, a mechanical pencil with the lead retracted or a mini screwdriver. -
Page 13: Specifi Cations
SPECIFICATIONS Maximum input resolution (HDMI)..........2K (2048x1080p) Maximum output resolution (SDI)............1080p @ 60 Hz Maximum audio channels output (SDI)........ 8 channels @ 48 KHz Analog Audio output / monitoring channels (from HDMI source) ......2 Input Connector.............(1) HDMI Type A 19-pin Female Input Connector....(1) Power connector, female right-angle locking 5V DC USB Input Connector..... - Page 15 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefenPRO.com support@gefen.com...
