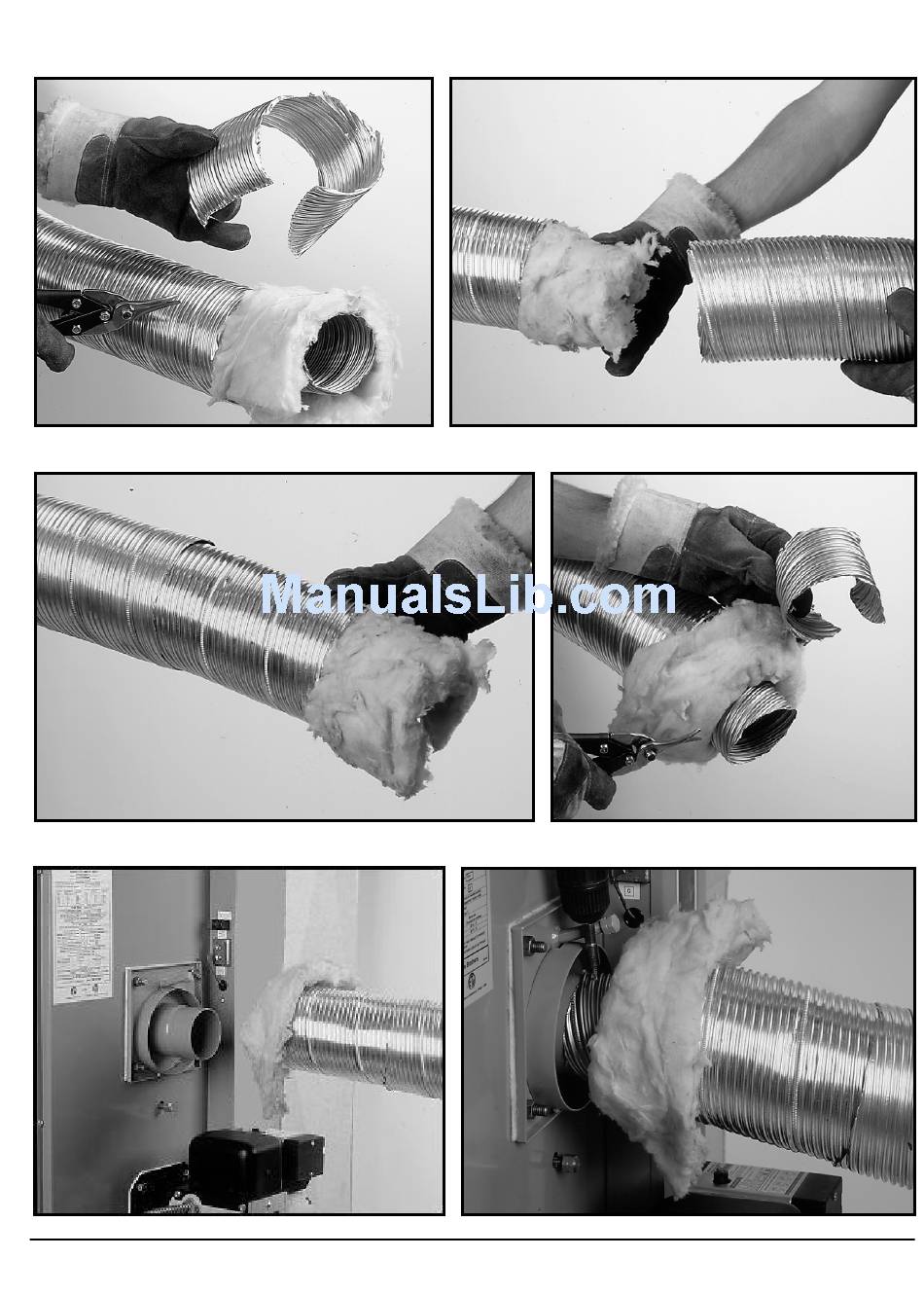

FIGURE 1.1
CUT OUTER SLEEVE
THREAD SPIN SLEEVE BACK 10"
FIGURE 1.5
INSERT STAINLESS STEEL
CORE ONTO BREECH TUBE
BACK 5"
FIGURE 1.3
445 01 4024 05
THREAD SPIN SLEEVE
ONTO OUTER SLEEVE
CUT STAINLESS STEEL
CORE BACK BY 3"
DRIVE THREE STAINLESS STEEL
SCREWS, STARTING NEAR TOP
FIGURE 1.2
FIGURE 1.4
FIGURE 1.6
