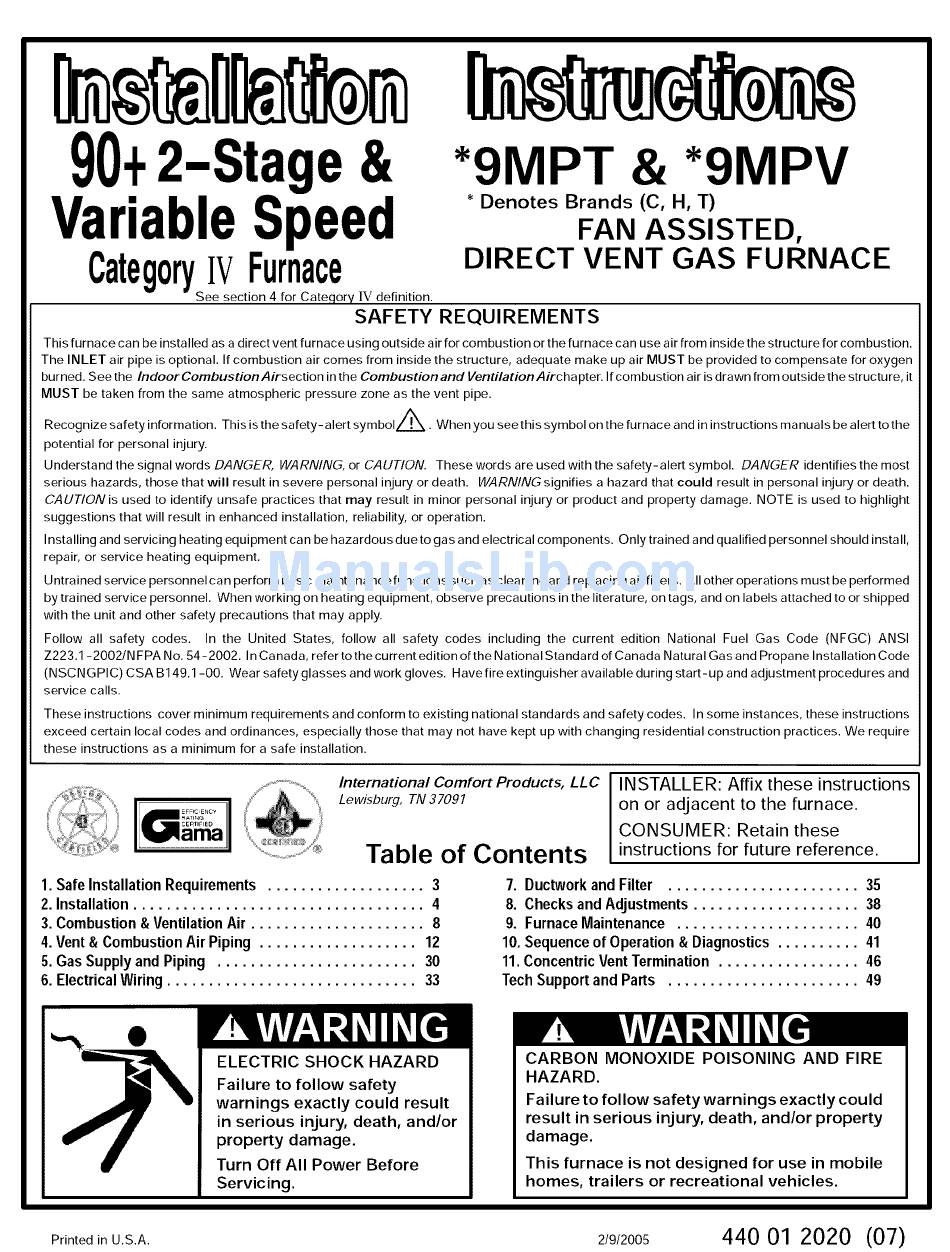

90+2-stage& *9mpt & *9mpv variable speed

Advertisement

90+2-stage
&
*9MPT & *9MPV
Variable Speed
FAN ASSISTED,
!v e oFU!onroaCe
o,. CT
Category
ry
S
ct
IV definition.
SAFETY
REQUIREMENTS
This furnace ca n be installed as a direct vent furnace using outside air for combustion or the furnace can use air from inside the structure for combustion.
The INLET air pipe is optional. If combustion air comes from inside the structure, adequate make up air MUST be provided to compensate
for oxygen
burned. See the Indoor Combustion
Airsection
in the Combustion
and Ventilation
Aircha pter. If combustion air is drawn from outside the structure, it
MUST be taken from the same atmospheric
pressure zone as the vent pipe.
Recognize safety information.
This is the safety- alert symbolS. I
. When you see this symbol on the furnace and in instructions manuals be alert to the
potential for personal injury.
Understand the signal words DANGER, WARNING, or CAUTION.
These words are used with the safety-alert
symbol. DANGER
identifies the most
serious hazards, those that will result in severe personal injury or death.
WARNING signifies a hazard that could result in personal injury or death.
CAUTION is used to identify unsafe practices that may result in minor personal injury or product and property damage. NOTE is used to highlight
suggestions
that will result in enhanced installation,
reliability, or operation.
Installing and servicing heating equipment can be hazardous due to gas and electrical components.
Only trained and qualified personnel should install,
repair, or service heating equipment.
Untrained service personnel can perform basic maintenance functions such as cleaning and replacing air filters. All other operations must be performed
by trained service personnel. When working on heating equipment, observe precautions in the literature, on tags, and on labels attached to or shipped
with the unit and other safety precautions that may apply.
Follow all safety codes.
In the United States, follow all safety codes including
the current edition
National Fuel Gas Code (NFGC) ANSI
Z223.1 - 2002/N FPA No. 54-2002.
In Canada, refer tothecurrent
edition of the National Standard of Canada Natural Gas and Propane Installation Code
(NSCNGPIC)
CSA B149.1-00.
Wear safetyglassesandworkgloves.
Havefireextinguisher
availableduringstart-upand
adjustment procedures and
service calls.
These instructions
cover minimum requirements and conform to existing national standards and safety codes. In some instances, these instructions
exceed certain local codes and ordinances,
especially those that may not have kept up with changing residential construction
practices. We require
these instructions
as a minimum for a safe installation.
,j'_'
%%
!
i¸¸
International
Comfort
Products,
LLC
Lewisburg,
TN 37091
Table of Contents
INSTALLER:
Affix these instructions
on or adjacent
to the furnace.
CONSUMER:
Retain these
instructions
for future reference.
1. SafeInstallation Requirements ...................
3
2. Installation ...................................
4
3. Combustion & Ventilation Air .....................
8
4. Vent& Combustion Air Piping ...................
12
5. GasSupply and Piping ........................
30
6. Electrical Wiring ..............................
33
7. Ductwork and Filter .......................
35
8. Checks and Adjustments ....................
38
9. Furnace Maintenance ......................
40
10.Sequenceof Operation & Diagnostics ..........
41
11.Concentric VentTermination .................
46
TechSupport and Parts .......................
49
ELECTRIC SHOCK HAZARD
Failure to follow safety
warnings
exactly could result
in serious injury, death, and/or
property
damage.
Turn Off All Power Before
Servicing.
CARBON
MONOXIDE POISONING AND FIRE
HAZARD.
Failure to follow safety warnings
exactly cou Id
result in serious injury, death, and/or property
damage.
This furnace is not designed
for use in mobile
homes, trailers or recreational
vehicles.
Printed
in U.S.A.
2/9/2005
440 01 2020 (07)
