Bunn Dual SH Installation And Operating Manual
  1. Manuals
  2. Brands
  3. Bunn Manuals
  4. Coffee Maker
  5. Single SH
  6. Installation and operating manual
Bunn Dual SH Installation And Operating Manual

Bunn Dual SH Installation And Operating Manual

For use with smart funnel
Hide thumbs Also See for Dual SH:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Installation and Operating Manual
MHG
for use with
Smart Funnel
®

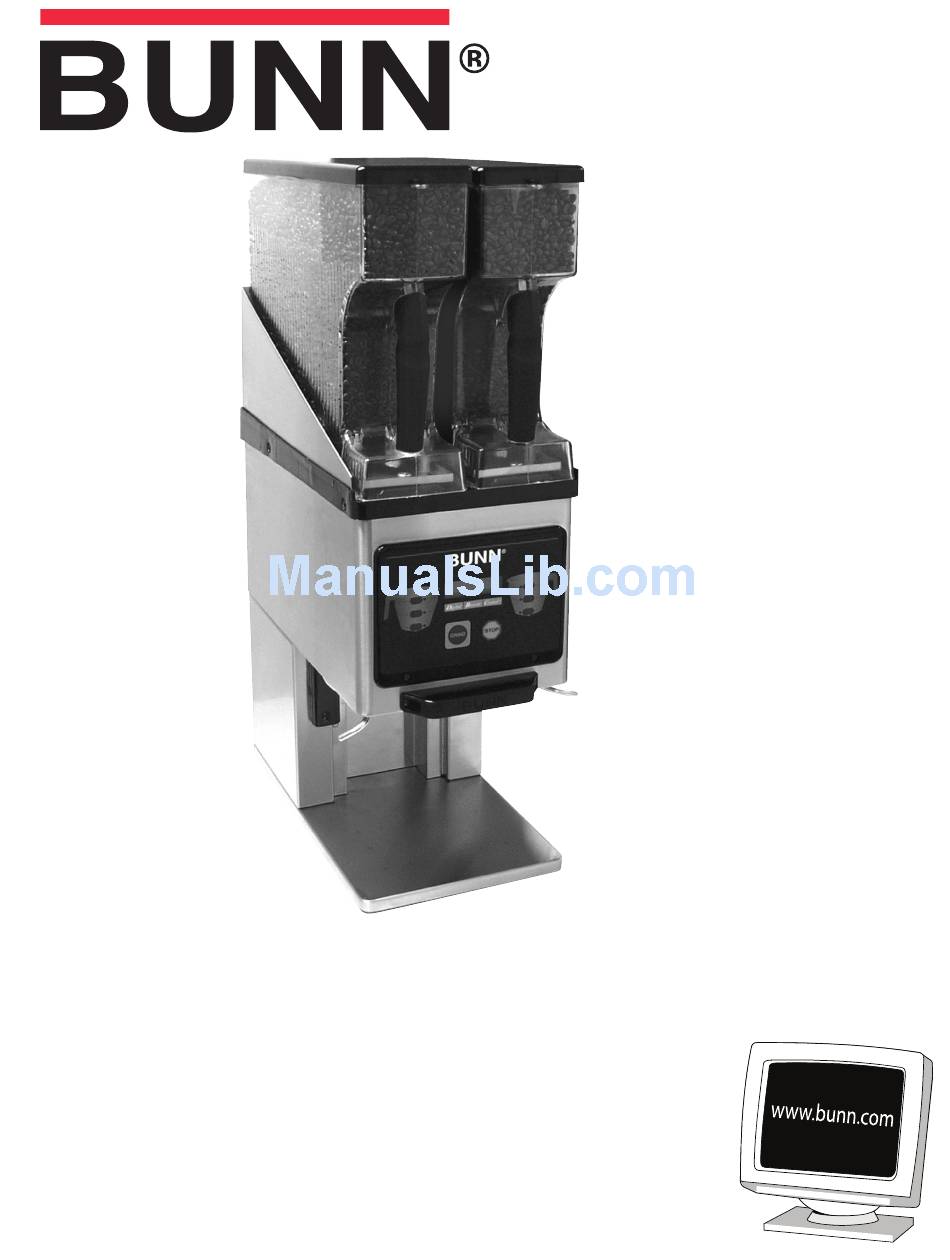

INSTALLATION & OPERATING GUIDE
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts
Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at
www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and
manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
36529.0000L 07/10 ©2004 Bunn-O-Matic Corporation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dual SH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bunn Dual SH

Summary of Contents for Bunn Dual SH

  • Page 1 To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
  • Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 3: Table Of Contents

    FAILURE TO COMPLY RISKS EQUIPMENT DAMAGE, FIRE, OR SHOCK HAZARD READ THE ENTIRE OPERATING MANUAL INCLUDING THE LIMIT OF WARRANTY AND LIABILITY BEFORE BUYING OR USING THIS PRODUCT 20545-0000D 01/04 © 1990 Bunn-O-Matic Corporation #20545.0000 CONTENTS INTRODUCTION USER NOTICES PERSONAL INJURY HAZARD.

  • Page 4: Electrical Requirements

    Refer to Data Plate on the Grinder, and local/national electrical codes to determine circuit requirements. This grinder has an attached cordset and requires 2-wire, grounded service rated: 120 volts ac, 15 amp, single phase, 60 Hz, for domestic grinders. 230 volts ac, 10 amp, single phase, 50 Hz, for most international grinders. 100 volts ac, 15 amp, single phase, for some international grinders.

  • Page 5: Initial Set-Up & Programming

    1. Grinder will not operate unless a hopper with a coffee name programmed into the chip is in place on the grinder. 2. Refer to Setup Menu “NAME HOPPER” to program hopper chip. 3. Remove top lid. Clear all foreign objects and shipping material from the hopper compartment. 4.

  • Page 6: Cleaning

    5. Clean and sanitize the hoppers and lids. Care should be taken not to scratch the hoppers with any abrasive materials. NOTE - Bunn-O-Matic recommends the 3-step method for cleaning and sanitizing the hoppers and lids. The 3-step method consists of hot soapy water using an approved detergent, a fresh water rinse, and an aqueous sanitizing solution using an approved non-chlorine sanitizer.

  • Page 7: Coffee Grinding

    1. Visually inspect the selected hopper for an ample supply of whole bean coffee. 2. Place a paper filter into the brew funnel. The filter must not be folded-over or tilted to one side. 3. Insert the funnel into the funnel rails and push until it stops. 4.

  • Page 8: Communicating With The Grinder

    COMMUNICATING WITH THE GRINDER To Write A Name To A Hopper PRESS AND HOLD RIGHT HIDDEN BUTTON TO ENTER THE SET-UP MENUS NAME HOPPER? WHICH SIDE? LEFT DONE RIGHT REVIEW RECIPES Page 10 PRESSING EITHER "PREV" "COFFEE NAME" OR "NEXT" WILL SCROLL TO PREV SAVE NEXT ANOTHER COFFEE FLAVOR ARE YOU SURE?
  • Page 9 COMMUNICATING WITH THE GRINDER (Continued) Three different batch settings are selectable for each hopper. Each batch is independently adjustable by setting the length of time a slide gate opens to allow beans to drop into the grinding chamber. A second time setting for each batch determines how long the grind motor continues to run after the slide gate closes.
  • Page 10 COMMUNICATING WITH THE GRINDER (Continued) PRESS AND HOLD RIGHT HIDDEN BUTTON TO ENTER THE SET-UP MENUS NAME HOPPER? PRESSING THE RIGHT HIDDEN BUTTON THREE TIMES IN REVIEW RECIPES? THIS MENU WILL TAKE YOU TO THE "SERVICE TOOLS" MENU "COFFEE NAME" MODIFY SHOW NEXT Pressing NO will forward to...
  • Page 11 COMMUNICATING WITH THE GRINDER (Continued) To Restore Factory Defaults Or Test Outputs and Switches REVIEW RECIPES? ENTER ASSET # AN000000 SERVICE TOOLS? FACTORY DEFAULTS? WILL REPLACE ALL GRINDER SETTINGS EXIT SET UP MENUS ARE YOU SURE? RESTORING DEFAULTS "XXX" EXIT SET UP MENUS EXIT SET UP MENUS...
  • Page 12 COMMUNICATING WITH THE GRINDER (Continued) Resetting The Grinder Memory (To Match Chart Below) 1. Unplug grinder from the outlet. 2. Press in and hold both the STOP and the display will show four rows of dashes. 3. When the dashes appear, release the STOP and GRIND buttons, then press and release the STOP button. 4.
  • Page 13 COMMUNICATING WITH THE GRINDER (Continued) Entering A Coffee Name Using A Recipe Card Press the STOP button and place the chip portion of the card under the sensor coil on the front of the grinder. The LCD display will enter the RECIPE CARD menu. SMALL BATCH GRIND TIME MEDIUM BATCH...

This manual is also suitable for:

Mhg

Table of Contents
