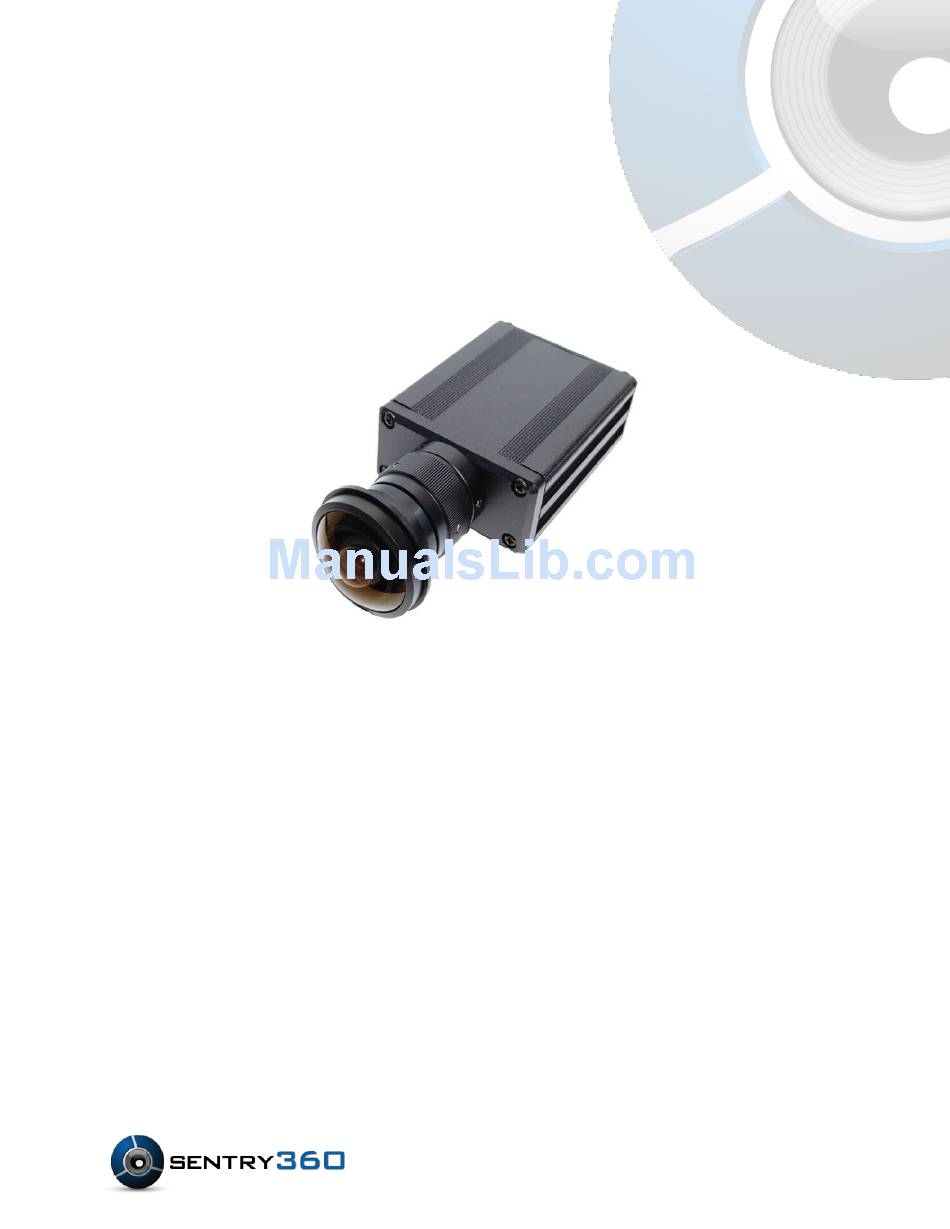

Page 1: User Manual
FS-IP14K-DN User Manual Ver 1.0 ©Sentry360 2014... -
Page 2: Table Of Contents
Table of Contents Overview ..........................3 Features ........................3 Package Contents......................3 Dimensions ........................4 Connectors ........................5 System Requirements ...................... 6 Access Camera ......................... 7 Web Browser Configuration ..................9... -
Page 3: Overview
FullSight™ camera, allows for immersive 360-degree live view as well as pan-tilt-zoom during playback with the use of Sentry360’s API or SDK with any 3rd party network video recording software certified partner. User Interface options of live or... -
Page 4: Dimensions
Dimensions The FS-IP14K-DN camera and lens dimensions are shown below. -
Page 5: Connectors
Connectors The diagram below shows the FS-IP14K-DN connections. Designation Description DC Power 12V DC Power Connector LAN Port PoE and Ethernet Port... -
Page 6: System Requirements
System Requirements To connect to the FS-IP14K-DN via web browser, please ensure your PC has a good network connection, and meets system requirements as described below. Items System Requirement Web Browser Microsoft Internet Explorer Mozilla Firefox Google Chrome Apple Safari... -
Page 7: Access Camera
Access Camera Step 1. Power your camera using the correct power source (PoE switch, PoE injector, or 12V adapter). Step 2. Download, install, and run sentryView™, Sentry360’s camera configuration tool, here: http://sentry360.com/product/sentryview/ Step 3. Click the Scan button in sentryView™ to scan your network for connected cameras. - Page 8 Step 7. Your cameras are now configured. If you are using sentryCore™ as your Video Management System, please download the latest version here: http://sentry360.com/product/sentrycore/ Step 8. Right click on a camera and select Browse. The prompt for entering the default...
-
Page 9: Web Browser Configuration
Web Browser Configuration Camera configuration is accessed through the web browser interface by clicking the Show Settings button. When configuration is complete, click the System Tab -> Save to commit settings to permanent memory.
