Summary of Contents for Jet JAT-750

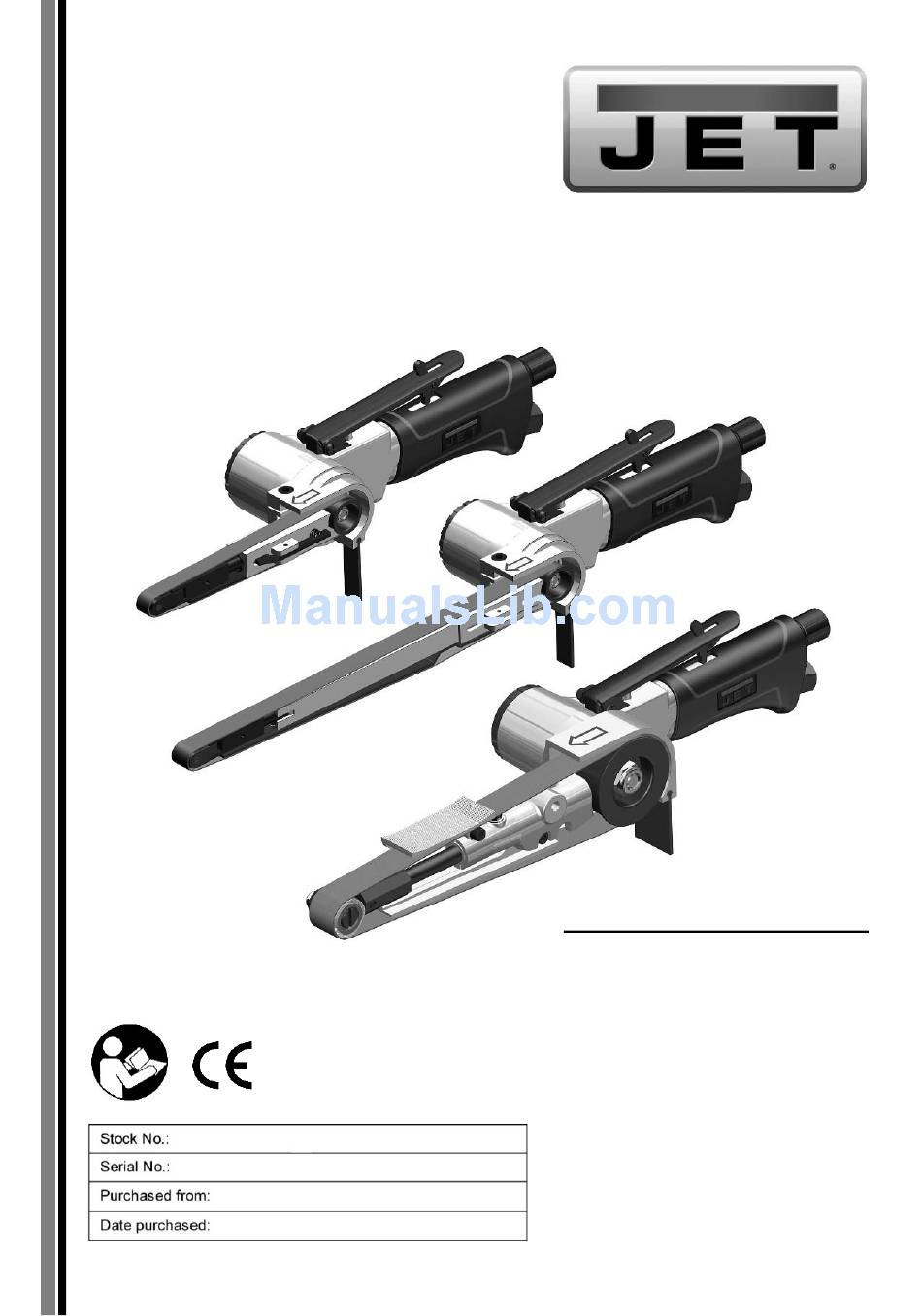

- Page 1 Pneumatic Mini Belt Sander #505750, JAT-750 #505751, JAT-751 #505752, JAT-752 JAT-750 JAT-752 JAT-751 Operation & Parts Manual M-505750 Edition 2 06/2015 427 New Sanford Road LaVergne, TN 37086 Ph.: 800-274-6848 www.jettools.com Copyright © 2015 JET...
-
Page 2: Warranty And Service
Accessories; Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand. -
Page 3: Safety Warnings
10. The air tool must be properly lubricated before operating. Do not use this tool for other than its intended use. If used for other purposes, JET disclaims 11. Never start a percussion type air tool (chipper, any real or implied warranty and holds itself breaker, buster, etc.) without securing the... - Page 4 33. Do not lubricate the tool with combustible or storing tool. liquids, such as kerosene, diesel or jet fuel. 23. Make sure tool is switched off, and your finger 34. Do not dispose of this tool with normal off the trigger, before connecting to air supply.
-
Page 5: About This Manual
As with any tool operation, safety of operator and bystanders should be first priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Tool Specifications
Specifications were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 7: Setup And Assembly
(not included) into the air inlet. Any missing parts or damage should be reported ® immediately to your JET distributor. Do not use a Blow out air line to remove any dirt or damaged tool. Read this instruction manual... -
Page 8: Belt Replacement
Figure 5: JAT-751 Press tension lever (A, Figure 4) to engage JAT-752: tension. Disconnect sander from air source. Loosen hex cap screw (see Figure 1), turn head 90-degrees to the handle, and tighten screw to lock. JAT-750/751/752 Mini Belt Sanders ... - Page 9 Shoe replacement The shoe or sanding platen should be replaced when, due to wear, it no longer sits flat but is convex in shape. JAT-750/752: Disconnect sander from air source. Remove belt (see Belt replacement). Remove screw(s) and remove old shoe (Figure 7).
-
Page 10: Maintenance
Re-connect air. Run tool at low throttle • without load for a few seconds to distribute Poor maintenance practices, such as using the oil throughout tool. excessive air pressure or air volume. • Improper or no lubrication. JAT-750/751/752 Mini Belt Sanders ... - Page 11 Use a light oil containing rust inhibitors, such as per square inch) air pressure measured at the tool SAE #10. Many JET air tools have integral oil when the tool is operating. Set tool to 90 psi reservoirs, which should be kept filled when in-line unless indicated otherwise.
- Page 12 Troubleshooting JAT-750/751/752 Belt Sanders Any disassembly of the tool should be done by qualified service personnel. For problems not addressed below, contact JET technical service at 800-274-6846. Problem Possible cause Remedy Tool will not start. Air valve closed or obstructed.
-
Page 13: Replacement Parts
Replacement parts Replacement parts are listed on the following pages. To order parts or reach our service department, call 1-800-274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Please have the stock number and serial number of your tool available when you call, so that we may serve you quickly and accurately. ... - Page 14 #505750, JAT-750, Mini Belt Sander – exploded view JAT-750/751/752 Mini Belt Sanders ...
- Page 15 #505750, JAT-750, Mini Belt Sander – parts list Index Part No. Description Index Part No. Description JAT750-01 Housing (incl. #46 grip) 30 61035 Flat head screw M3x8 JAT750-02 Guard 31 61036 Spring pin 3x10 JAT750-02A Guard subassembly (w/#26) 32 61037 Pan hd.
- Page 16 #505751, JAT-751, Mini Belt Sander – exploded view JAT-750/751/752 Mini Belt Sanders ...
- Page 17 #505751, JAT-751, Mini Belt Sander – parts list Index Part No. Description Index Part No. Description JAT751-01 Housing (incl. #57 Grip) 29 JSM6100-57 Lever support JAT751-02 Guard 30 TS-2284082 Pan hd screw M4x8L JAT751-02A Guard Subassembly (w/#26) 31 TS-2361041 Spring washer M4 JSM6100-03 Air inlet 32 TS-2331041 Lock nut M4 JSM6100-04 Throttle lever...
- Page 18 #505752, JAT-752, Mini Belt Sander – exploded view JAT-750/751/752 Mini Belt Sanders ...
- Page 19 #505752, JAT-752, Mini Belt Sander – parts list Index Part No. Description Index Part No. Description JAT750-01 Housing (incl. #58 grip) 30 JSM6100-27 Pan head screw M4x25 JAT750-02 Guard 31 JSM6100-57 Lever support JAT750-02A Guard Subassembly (w/#26) 32 TS-2284082 Pan head screw M4x8 JSM6100-03 Air inlet 33 TS-2361041 Spring washer M4...
- Page 20 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 JAT-750/751/752 Mini Belt Sanders ...
- Page 21 www.jettools.com ...
