Summary of Contents for Jet JAT-310

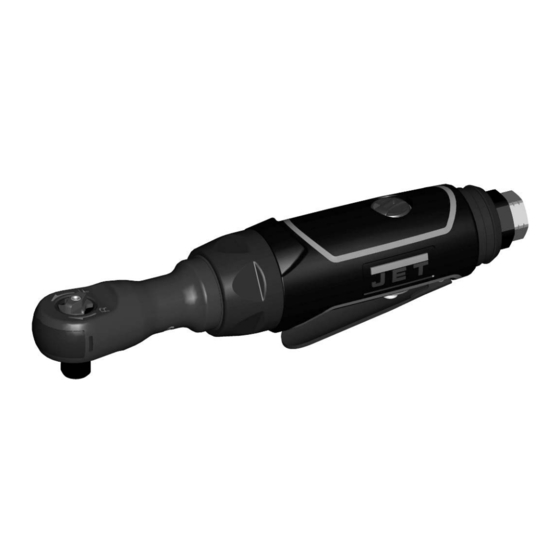

- Page 1 Pneumatic Ratchet Wrench #505310, JAT-310 #505312, JAT-312 #505313, JAT-313 Operation & Parts Manual M-505310 Edition 2 06/2015 427 New Sanford Road LaVergne, TN 37086 Ph.: 800-274-6848 www.jettools.com Copyright © 2015 JET...
-
Page 2: Warranty And Service
Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand. -
Page 3: Safety Warnings
10. The air tool must be properly lubricated before operating. Do not use this tool for other than its intended use. If used for other purposes, JET disclaims 11. Never start a percussion type air tool (chipper, any real or implied warranty and holds itself breaker, buster, etc.) without securing the... - Page 4 33. Do not lubricate the tool with combustible or storing tool. liquids, such as kerosene, diesel or jet fuel. 23. Make sure tool is switched off, and your finger 34. Do not dispose of this tool with normal off the trigger, before connecting to air supply.
-
Page 5: About This Manual
As with any tool operation, safety of operator and bystanders should be first priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Tool Specifications
Specifications were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 7: Setup And Assembly
(Low range), counter- Any missing parts or damage should be reported clockwise raises speed (High range). ® immediately to your JET distributor. Do not use a damaged tool. Read this instruction manual Turn direction switch to forward (F) or thoroughly for operation, maintenance and safety reverse (R) rotation. -
Page 8: Maintenance
Tool Pressure Use proper air hose size (refer to tool specifications). The hose should be just long JET Air Tools operate on 70-to-100 psi (pounds enough to serve the working area. Excessive per square inch) air pressure measured at the tool hose length will cause pressure drop. - Page 9 Use a light oil containing rust inhibitors, such as replaceable air filter that can be easily cleaned. SAE #10. Many JET air tools have integral oil reservoirs, which should be kept filled when in-line Use safety shut-off valves so air flow can be oilers are not used.
- Page 10 Troubleshooting JAT-310/312/313 Ratchet Wrenches Any disassembly of the tool should be done by qualified service personnel. For problems not addressed below, contact JET technical service at 800-274-6846. Problem Possible cause Remedy Tool will not start. Air valve closed or obstructed.
-
Page 11: Replacement Parts
Replacement parts Service parts are listed on the following pages. To order parts or reach our service department, call 1-800- 274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Please have the stock number and serial number of your tool available when you call, so that we may serve you quickly and accurately. ... - Page 12 #505310, JAT-310, 1/4-inch Ratchet Wrench – exploded view JAT-310,312,313 Ratchet Wrenches ...
- Page 13 #505310, JAT-310, 1/4-inch Ratchet Wrench – parts list Index Part No. Description Index Part No. Description JAT310-01 Air inlet 26 JAT310-26 Coupling nut JAT310-02 O-Ring P9 NBR ø8.8x1.9 27 PB150-058 Ball bearing HK1212 JAT310-03 Exhaust deflector 28 JAT310-28 Bushing O-Ring AS022 NBR...
- Page 14 #505312, JAT-312, 3/8-inch Ratchet Wrench – exploded view 49 48 47 31 JAT-310,312,313 Ratchet Wrenches ...
- Page 15 #505312, JAT-312, 3/8-inch Ratchet Wrench – parts list Index Part No. Description Index Part No. Description JAT312-01 Motor housing 34 JAT312-34 Ring gear JAT312-02 Rubber grip 35 JAT312-35 Washer JAT312-03 Exhaust deflector 36 JAT312-36 Coupling nut JAT312-04 Throttle lever 38 JAT312-38 Crank shaft JAT312-05 Air inlet...
- Page 16 #505313, JAT-313, 1/2-inch Ratchet Wrench – exploded view 49 48 47 31 JAT-310,312,313 Ratchet Wrenches ...
- Page 17 #505313, JAT-313, 1/2-inch Ratchet Wrench – parts list Index Part No. Description Index Part No. Description JAT312-01 Motor housing 34 JAT312-34 Ring gear JAT312-02 Rubber grip 35 JAT312-35 Washer JAT312-03 Exhaust deflector 36 JAT312-36 Coupling nut JAT312-04 Throttle lever 38 JAT312-38 Crank shaft JAT312-05 Air inlet...
- Page 18 This page intentionally left blank. JAT-310,312,313 Ratchet Wrenches ...
- Page 19 This page intentionally left blank. ...
- Page 20 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com JAT-310,312,313 Ratchet Wrenches ...
