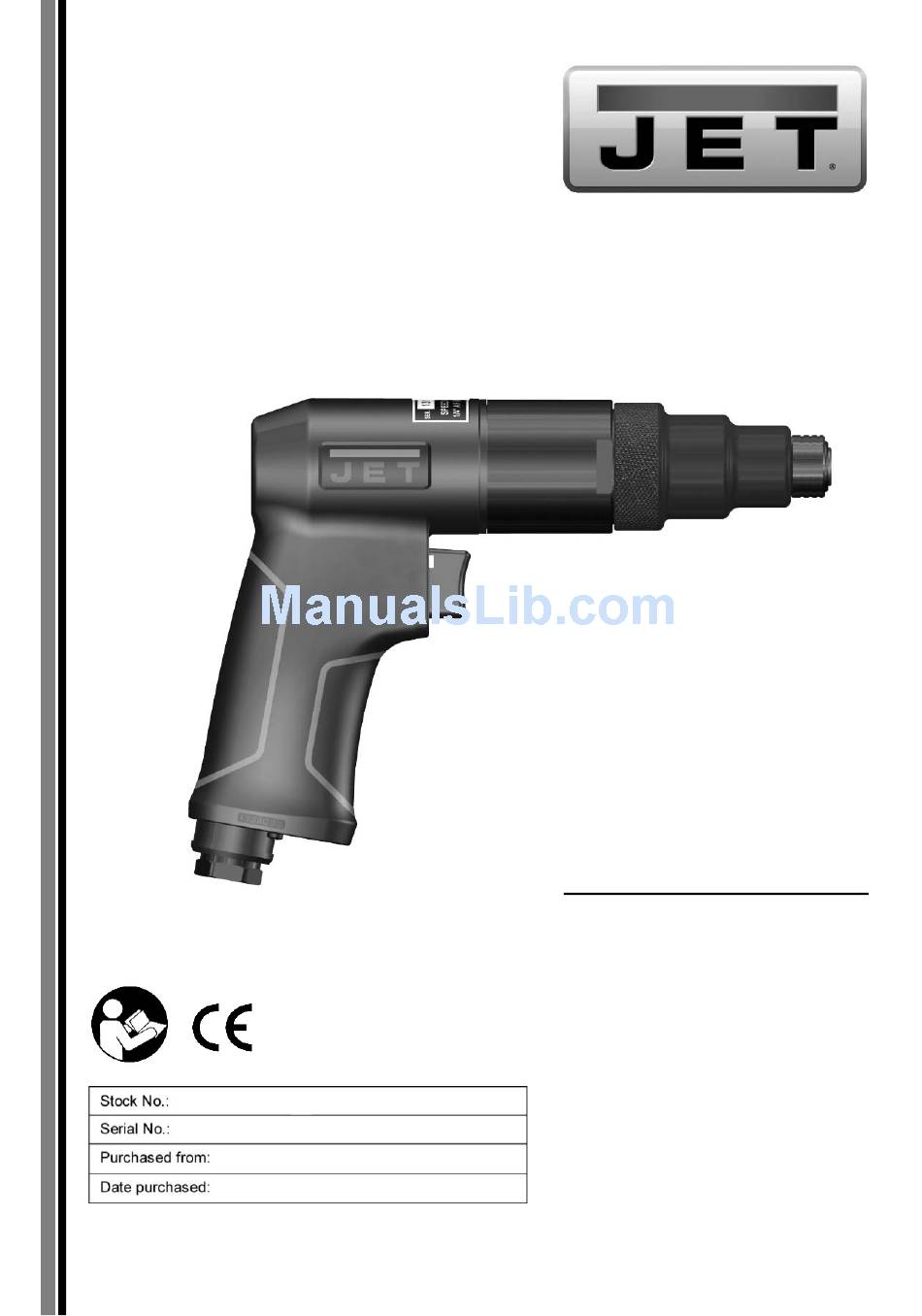

- Page 1 Pneumatic Screwdriver #505660, JAT-660 #505661, JAT-661 Operation & Parts Manual M-505660 Edition 2 06/2015 427 New Sanford Road LaVergne, TN 37086 Ph.: 800-274-6848 www.jettools.com Copyright © 2015 JET...
-
Page 2: Warranty And Service
Shop Tools; Warehouse & Dock products; Hand Tools; Air Tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand. -
Page 3: Safety Warnings
10. The air tool must be properly lubricated before operating. Do not use this tool for other than its intended use. If used for other purposes, JET disclaims 11. Never start a percussion type air tool (chipper, any real or implied warranty and holds itself breaker, buster, etc.) without securing the... - Page 4 33. Do not lubricate the tool with combustible or storing tool. liquids, such as kerosene, diesel or jet fuel. 23. Make sure tool is switched off, and your finger 34. Do not dispose of this tool with normal off the trigger, before connecting to air supply.
-
Page 5: About This Manual
As with any tool operation, safety of operator and bystanders should be first priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Tool Specifications
Specifications were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 7: Setup And Assembly
(F/R). Any missing parts or damage should be reported Gently press trigger. Speed is variable, ® immediately to your JET distributor. Do not use a determined by pressure against trigger. damaged tool. Read this instruction manual thoroughly for operation, maintenance and safety Release trigger to stop screwdriver. - Page 8 (See also “Troubleshooting” section.) Use a light oil containing rust inhibitors, such as SAE #10. Many JET air tools have integral oil • Contaminated air such as a dirty air system reservoirs, which should be kept filled when in-line or water in the system.
- Page 9 Figure 2 Recommended arrangement of air piping and air line system ...
- Page 10 Troubleshooting JAT-660/661 Screwdriver Any disassembly of the tool should be done by qualified service personnel. For problems not addressed below, contact JET technical service at 800-274-6846. Problem Possible cause Remedy Tool will not start. Air valve closed or obstructed. Open valve; clear any obstructions.
-
Page 11: Replacement Parts
Replacement parts Service parts are listed on the following pages. To order parts or reach our service department, call 1-800- 274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Please have the stock number and serial number of your tool available when you call, so that we may serve you quickly and accurately. ... - Page 12 #505660, JAT-660, 1/4-inch Screwdriver – exploded view JAT-660,661 Screwdrivers ...
- Page 13 #505660, JAT-660, 1/4-inch Screwdriver – parts list Index Part No. Description Index Ppart No. Description JAT620-01 Motor housing 30124 Pin 4x13.8L 80202 Spring pin 2.5x24L 70425 Bushing JAT620-03 Air inlet 80226 Work spindle JAT620-04 Trigger BB-6201Z Ball bearing 6201Z JAT620-05...
- Page 14 #505661, JAT-661, 1/4-inch Screwdriver – exploded view JAT-660,661 Screwdrivers ...
- Page 15 #505661, JAT-661, 1/4-inch Screwdriver – parts list Index Part No. Description Index Part No. Description JAT620-01 Motor housing JAT620-23 Planet gear 80202 Spring pin 2.5x24L 30124 Pin 4x13.8L JAT620-03 Air inlet 80225 Bushing (3 pcs) JAT620-04 Trigger 80426 Work spindle JAT620-05 Valve stem BB-6201Z...
- Page 16 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com JAT-660,661 Screwdrivers ...
