Summary of Contents for Jet JAT-101

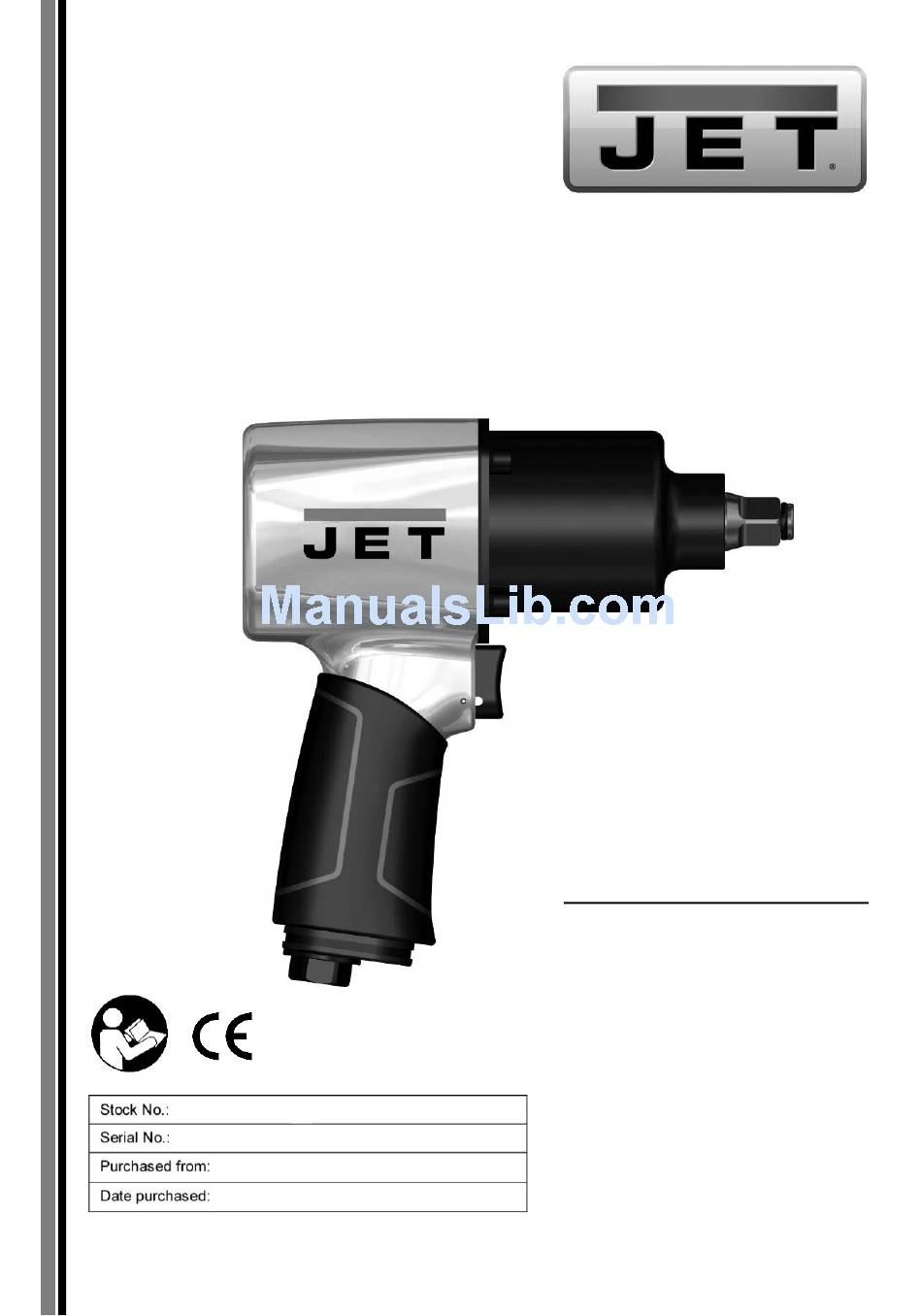

- Page 1 Pneumatic Impact Wrench #505101, JAT-101 #505104, JAT-104 #505105, JAT-105 JAT-104 shown Operation & Parts Manual M-505101 Edition 2 06/2015 427 New Sanford Road LaVergne, TN 37086 Ph.: 800-274-6848 www.jettools.com Copyright © 2015 JET...
-
Page 2: Warranty And Service
Accessories; Shop Tools; Warehouse & Dock products; Hand Tools: Air Tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand. -
Page 3: Safety Warnings
10. The air tool must be properly lubricated before operating. Do not use this tool for other than its intended use. If used for other purposes, JET disclaims 11. Never start a percussion type air tool (chipper, any real or implied warranty and holds itself breaker, buster, etc.) without securing the... - Page 4 22. Shut off air supply and discharge any residual 33. Do not lubricate the tool with combustible pressure from tool before removing hose, liquids, such as kerosene, diesel or jet fuel. making adjustments, changing accessories, 34. Do not dispose of this tool with normal or storing tool.
-
Page 5: About This Manual
As with any tool operation, safety of operator and bystanders should be first priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Tool Specifications
Specifications were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 7: Setup And Assembly
Any missing parts or damage should be reported Rotate regulator dial to preferred setting. ® immediately to your JET distributor. Do not use a Regulator settings are for reference only and damaged tool. Read this instruction manual do not indicate specific power settings. -
Page 8: Maintenance
Tool Pressure Air system requirements JET Air Tools operate on 70-to-100 psi (pounds per square inch) air pressure measured at the tool Use proper air hose size (refer to tool when the tool is operating. Set tool to 90 psi specifications). - Page 9 Use a light oil containing rust inhibitors, such as directly, rather than with quick connect fittings SAE #10. Many JET air tools have integral oil which may cause pressure drops and tool power reservoirs, which should be kept filled when in-line reduction.
- Page 10 Troubleshooting JAT-101/104/105 Impact Wrenches Any disassembly of the tool should be done by qualified service personnel. For problems not addressed below, contact JET technical service at 800-274-6846. Problem Possible cause Remedy Tool will not start. Air valve closed or obstructed.
-
Page 11: Replacement Parts
Problem Possible cause Remedy Severe air leakage. Air valve obstructed or damaged. Clean or replace. (Note: Minimal escape of Housing loose or damaged. Tighten or replace as needed. air is often normal for air tools.) Replacement parts Service parts are listed on the following pages. To order parts or reach our service department, call 1-800- 274-6848 Monday through Friday, 8:00 a.m. - Page 12 #505101, JAT-101, 3/8-inch Impact Wrench – exploded view JAT-101,104,105 Impact Wrenches ...
- Page 13 #505101, JAT-101, 3/8-inch Impact Wrench – parts list Index Part No. Description Index Part No. Description JAT101-01 Motor housing JAT741-21 Spring pin 3x6Lmm JAT101-02 Spring pin 2x20mm JAT101-28 Hammer case JAT101-03 Air inlet JAT101-30 O-Ring 40x1mm JAT101-04 Trigger JAT101-31 Gasket...
- Page 14 #505104, JAT-104, 1/2-inch Impact Wrench – exploded view JAT-101,104,105 Impact Wrenches ...
- Page 15 #505104, JAT-104, 1/2-inch Impact Wrench – parts list Index Part No. Description Index Part No. Description JAT104-01 Motor housing JAT741-21 Spring pin 3x6 mm JAT101-02 Spring pin 2x20L mm JAT104-28 Hammer case JAT101-03 Air inlet JAT104-30 O-Ring 48x1 mm JAT101-04 Trigger JAT104-31 Gasket...
- Page 16 #505105, JAT-105, 3/4-inch Impact Wrench – exploded view JAT-101,104,105 Impact Wrenches ...
- Page 17 #505105, JAT-105, 3/4-inch Impact Wrench – parts list Index Part No. Description Index Part No. Description JAT105-01 Motor housing JAT105-28 Hammer case JAT101-02 Spring pin 2x20L mm JAT105-30 O-Ring 64.8x1.6 mm JAT105-03 Air inlet JAT105-31 Gasket JAT105-04 Trigger JAT105-32 Washer JAT101-05 O-Ring 4x1 mm JAT105-33...
- Page 18 This page intentionally left blank. JAT-101,104,105 Impact Wrenches ...
- Page 19 This page intentionally left blank. ...
- Page 20 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com JAT-101,104,105 Impact Wrenches ...
