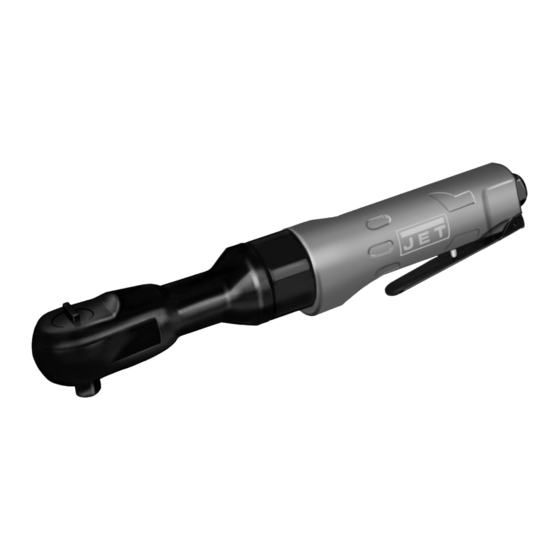

- Page 1 Pneumatic Ratchet Wrench #505301, JAT-301 #505302, JAT-302 JAT-301 shown Operation & Parts Manual M-505300 Edition 4 08/2019 427 New Sanford Road LaVergne, TN 37086 Ph.: 800-274-6848 www.jettools.com Copyright © 2015 JET...
-
Page 2: Warranty And Service
Shop Tools; Warehouse & Dock products; Hand Tools; Air tools NOTE: JET is a division of JPW Industries, Inc. References in this document to JET also apply to JPW Industries, Inc., or any of its successors in interest to the JET brand. -
Page 3: Safety Warnings
15. Excessive air pressure and too much free Do not use this tool for other than its intended rotation may decrease life of the tool and may use. If used for other purposes, JET disclaims cause a hazardous situation. any real or implied warranty and holds itself 16. - Page 4 To reduce 32. Do not lubricate the tool with combustible your exposure to these chemicals, work in a liquids, such as kerosene, diesel or jet fuel. well-ventilated area and work with approved 33. Do not dispose of this tool with normal safety equipment, such as dust masks that are household waste.
-
Page 5: About This Manual
As with any tool operation, safety of operator and bystanders should be first priority. If there are questions or comments, please contact your local supplier or JET. JET can also be reached at our web site: www.jettools.com. -
Page 6: Tool Specifications
Specifications were current at time of publication, but because of our policy of continuous improvement, JET reserves the right to change specifications at any time and without prior notice, without incurring obligations. -
Page 7: Setup And Assembly
Make sure nut or bolt can withstand rated torque of ratchet wrench. Any missing parts or damage should be reported ® immediately to your JET distributor. Do not use a To loosen nut or bolt: damaged tool. Read this instruction manual Select reverse rotation. - Page 8 Tool Pressure Make sure air compressor supplies clean, JET Air Tools operate on 70-to-100 psi (pounds dry air at correct CFM for the tool. per square inch) air pressure measured at the tool Set air pressure to 90 psi.
- Page 9 Use a light oil containing rust inhibitors, such as When its useful life has expired, please leave tool SAE #10. Many JET air tools have integral oil at a specialized facility. reservoirs, which should be kept filled when in-line oilers are not used.
- Page 10 Troubleshooting JAT-301/302 Ratchet Wrenches Any disassembly of the tool should be done by qualified service personnel. For problems not addressed below, contact JET technical service at 800-274-6846. Problem Possible cause Remedy Tool will not start. Air valve closed or obstructed.
-
Page 11: Replacement Parts
Replacement parts Service parts are listed on the following pages. To order parts or reach our service department, call 1-800- 274-6848 Monday through Friday, 8:00 a.m. to 5:00 p.m. CST. Please have the stock number and serial number of your tool available when you call, so that we may serve you quickly and accurately. ... - Page 12 #505301, JAT-301, 3/8-inch Ratchet Wrench – exploded view JAT-301,302 Ratchet Wrenches ...
- Page 13 #505301, JAT-301, 3/8-inch Ratchet Wrench – parts list Index Part No. Description Index Part No. Description JAT301-01 Housing 30124 Pin 4x13.8 SM-30102 Spring pin 3x24L SM-30125 Planet gear carrier SM-30103 Air inlet SM-30126 Clamp nut SM-30104 Throttle lever SM-30127 Bushing...
- Page 14 #505302, JAT-302, 1/2-inch Ratchet Wrench – exploded view JAT-301,302 Ratchet Wrenches ...
- Page 15 #505302, JAT-302, 1/2-inch Ratchet Wrench – parts list Index Part No. Description Index Part No. Description JAT301-01 Housing 30124 Pin 4x13.8 SM-30102 Spring pin 3x24L SM-30125 Planet gear carrier SM-30103 Air inlet SM-30126 Clamp nut SM-30104 Throttle lever SM-30127 Bushing SM-30105 Throttle valve SM-30128...
- Page 16 427 New Sanford Road LaVergne, Tennessee 37086 Phone: 800-274-6848 www.jettools.com JAT-301,302 Ratchet Wrenches ...
